Demo Slides

RaukR 2023 • Advanced R for Bioinformatics

Roy Francis

27-Jun-2023

Introduction

Note

This is a demo to showcase the RaukR presentation design guide, usage and capabilities of this presentation system. This presentation is created using quarto. This presentation uses the javascript library revealjs as the underlying framework.

RMarkdown

  • This is a quarto presentation using RMarkdown.
  • In RStudio, create a .qmd text file.
  • Add YAML matter to the top if not already there.
---
title: "This is a title"
format:
  revealjs
---
  • Click the Render button for a rendered preview.
  • Or use quarto::quarto_render() in R:
quarto::quarto_render("slide.qmd")
  • Or use quarto render in the terminal:
quarto render slide.qmd

Slides

Slide separators

Slides are separated by ##. Incremental content on same slide is separated by . . . like below.

Hide or not count a slide:

## Slide Title {visibility="hidden"}
## Slide Title {visibility="uncounted"}

. . .

Slide notes

Any content inside class .notes on a slide are notes. This is only visible in presenter mode (by pressing s).

. . .

Keyboard shortcuts

  • Press f for full-screen view.
  • Press o for overview.
  • Press s for speaker view.
  • Press ? for help.

Layout

The slide content can be organized into columns which can be nested if needed.

:::{.columns}
:::{.column width="50%"}
<div style="background-color:#fdebd0">Left content</div>
:::

:::{.column width="50%"}
<div style="background-color:#eaf2f8">Right content</div>

:::{.column width="60%"}
<div style="background-color:#d0ece7">Inner left</div>
:::
:::{.column width="40%"}
<div style="background-color:#f2d7d5">Inner right</div>
:::

:::
:::

Left content

Right content

Inner left

Inner right

Panel tabs

Content for Tab A

Content for Tab B

Text Formatting

Rendering of normal text, numbers and symbols.

ABCDEFGHIJKLMNOPQRSTUYWXYZÅÄÖ

abcdefghijklmnopqrstuvwxyzåäö

0123456789

!“#%&/()$@*^~<>-:;,_±|?+=

!"#%&/\()$@*^~<>-:;,_±|?+=

Text formatting

Headings can be defined as shown below.

## Level 2 heading
### Level 3 heading
#### Level 4 heading
##### Level 5 heading
###### Level 6 heading

Level 3 heading

Level 4 heading

Level 5 heading
Level 6 heading

Level 1 usage is not recommended. Use level 2 for slide titles. Use level 3 and below for other titles.

Text scaling classes

[Largest text]{.largest}
[Larger text]{.larger}
[Large text]{.large}
Normal text.
[Small text]{.small}
[Smaller text]{.smaller}
[Smallest text]{.smallest}

Largest text
Larger text
Large text
Normal text
Small text
Smaller text
Smallest text

Text Formatting

Horizontal alignment of text can be adjusted as shown below.

[Left aligned text]{.left}
[Center aligned text]{.center}
[Right aligned text]{.right}

Left aligned text
Center aligned text
Right aligned text

::: {.blockquote}
This line is quoted
:::

This line is quoted

A horizontal line can be created using ---

This is **Bold text** This is Bold text

This is *Italic text* This is Italic text

~~Strikethrough~~ text
Strikethrough text

This is Subscript H<sub>2</sub>O
H2O

This is Superscript 2<sup>10</sup>
210

[Highlighted text]{.highlight}
Highlighted text

This is a [link](r-project.org)
This is a link

Text formatting

Fit text to full width.

::: {.r-fit-text}
Attention
:::

Attention

Text formatting

Content here

::: {.aside}
This content is in here.
:::

More content here

Tip

In reports, aside pushes content right into the margin while, in revealjs presentation, it is pushed to the bottom left.

Lists

Bulleted List

- Bullet 1
- Bullet 2
  - Sub-bullet 2.1
  • Bullet 1
  • Bullet 2
    • Sub-bullet 2.1

Incremental Bullets

:::{.incremental}
- Incremental Bullet 1
- Incremental Bullet 2
- Incremental Bullet 3
:::
  • Incremental Bullet 1
  • Incremental Bullet 2
  • Incremental Bullet 3

For more options, see here.

Custom CSS styling

  • You can style text using any custom CSS
  • This is a block level element
::: {style="color: red"}
This paragraph is red.
:::

This paragraph is red.

  • This is a span. ie; A word or one line.

[This text is red]{style="color: red"}

This text is red

Call-Outs

::: {.callout-note}
This is a call-out.
:::

::: {.callout-warning}
This is a call-out.
:::

::: {.callout-important}
This is a call-out.
:::

::: {.callout-tip}
This is a call-out.
:::

::: {.callout-caution}
This is a call-out.
:::

Note

This is a call-out.

Warning

This is a call-out.

Important

This is a call-out.

Tip

This is a call-out.

Caution

This is a call-out.

Code formatting

Inline code

  • Code can be defined inline where `this` looks like this.
  • R code can be executed inline `r Sys.Date()` producing 2023-08-04.

Ligatures

== != && ++ |> <> <- <= <~ /= |=> ->>

== != && ++ |> <> <- <= <~ /= |=> ->>

Code font used is JetBrains Mono. For full set of ligatures, see here.

Code formatting

Code chunks

Code can also be defined inside chunks.

```
This is code
```
This is code

R code is executed inside code blocks like this

```{r}
Sys.Date()
```

which shows the code and output.

Sys.Date()
[1] "2023-08-04"

The code and results can be hidden by

```{r}
#| echo: false
#| results: hide
data(iris)
```
data(iris)
head(iris[1:3,1:2])
  Sepal.Length Sepal.Width
1          5.1         3.5
2          4.9         3.0
3          4.7         3.2

These are called chunk options. For more options, see here and complete list here.

Code highlighting

```{r}
#| eval: false
#| echo: true
#| code-line-numbers: "2-3"

iris %>%
  ggplot(aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point(size=2)+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_report()
```
iris %>%
  ggplot(aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point(size=2)+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_report()
```{r}
#| eval: false
#| echo: true
#| code-line-numbers: "2|3|5"

iris %>%
  ggplot(aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point(size=2)+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_report()
```
iris %>%
  ggplot(aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point(size=2)+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_report()

For more code highlighting documentation, see here.

Images • Markdown

Using Markdown

Using regular markdown.

![](assets/featured.jpg)

The dimensions are based on image and/or fill up the entire width.

Control image dimensions.

![](assets/featured.jpg){width=50%}
![](assets/featured.jpg){width=10%}

For more image documentation, see here.

Images • Markdown • Layout

Figure layout.

::: {layout-ncol=2}
![Caption for figure 1](assets/featured.jpg){#subfig1 width="40%"}
![Caption for figure 2](assets/featured.jpg){#subfig2 width="40%"}
:::

Caption for figure 1

Caption for figure 2

Images • HTML

Using Raw HTML

This image is 30% size. <img src="assets/featured.jpg" style="width:30%;"/>

Images • R

Using R

R chunks in RMarkdown can be used to control image display size using the arguemnt out.width.

This image is displayed at a size of 200 pixels.

```{r}
#| out-width: "200px"
knitr::include_graphics("assets/featured.jpg")
```

This image is displayed at a size of 75 pixels.

```{r}
#| echo: false
#| out-width: "75px"
knitr::include_graphics("assets/featured.jpg")
```

Math expressions

Some examples of rendering equations.

\(e^{i\pi} + 1 = 0\) \[\frac{E \times X^2 \prod I}{2+7} = 432\] \[\sum_{i=1}^n X_i\] \[\int_0^{2\pi} \sin x~dx\]

\(\left( \sum_{i=1}^{n}{i} \right)^2 = \left( \frac{n(n-1)}{2}\right)^2 = \frac{n^2(n-1)^2}{4}\) \(\begin{eqnarray} X & \sim & \mathrm{N}(0,1)\\ Y & \sim & \chi^2_{n-p}\\ R & \equiv & X/Y \sim t_{n-p} \end{eqnarray}\) ]

\(\begin{eqnarray} P(|X-\mu| > k) & = & P(|X-\mu|^2 > k^2)\\ & \leq & \frac{\mathbb{E}\left[|X-\mu|^2\right]}{k^2}\\ & \leq & \frac{\mathrm{Var}[X]}{k^2} \end{eqnarray}\)

Tables • kable

The most simple table using kable from R package knitr.

knitr::kable(head(iris),'html')
Sepal.Length Sepal.Width Petal.Length Petal.Width Species
5.1 3.5 1.4 0.2 setosa
4.9 3.0 1.4 0.2 setosa
4.7 3.2 1.3 0.2 setosa
4.6 3.1 1.5 0.2 setosa
5.0 3.6 1.4 0.2 setosa
5.4 3.9 1.7 0.4 setosa

Tables • kableExtra

More advanced table using kableExtra and formattable.

 iris[c(1:2,51:52,105:106),] %>%
  mutate(Sepal.Length=color_bar("lightsteelblue")(Sepal.Length)) %>%
  mutate(Sepal.Width=color_tile("white","orange")(Sepal.Width)) %>%
  mutate(Species=cell_spec(Species,"html",color="white",bold=T,
    background=c("#8dd3c7","#fb8072","#bebada")[factor(.$Species)])) %>%
  kable("html",escape=F) %>%
  kable_styling(bootstrap_options=c("striped","hover","responsive"),
                full_width=F,position="left") %>%
  column_spec(5,width="3cm")
Sepal.Length Sepal.Width Petal.Length Petal.Width Species
1 5.1 3.5 1.4 0.2 setosa
2 4.9 3.0 1.4 0.2 setosa
51 7.0 3.2 4.7 1.4 versicolor
52 6.4 3.2 4.5 1.5 versicolor
105 6.5 3.0 5.8 2.2 virginica
106 7.6 3.0 6.6 2.1 virginica

Tables • DT

Interactive table using R package DT.

library(DT)
DT::datatable(iris[1:20,],options=list(pageLength=7))

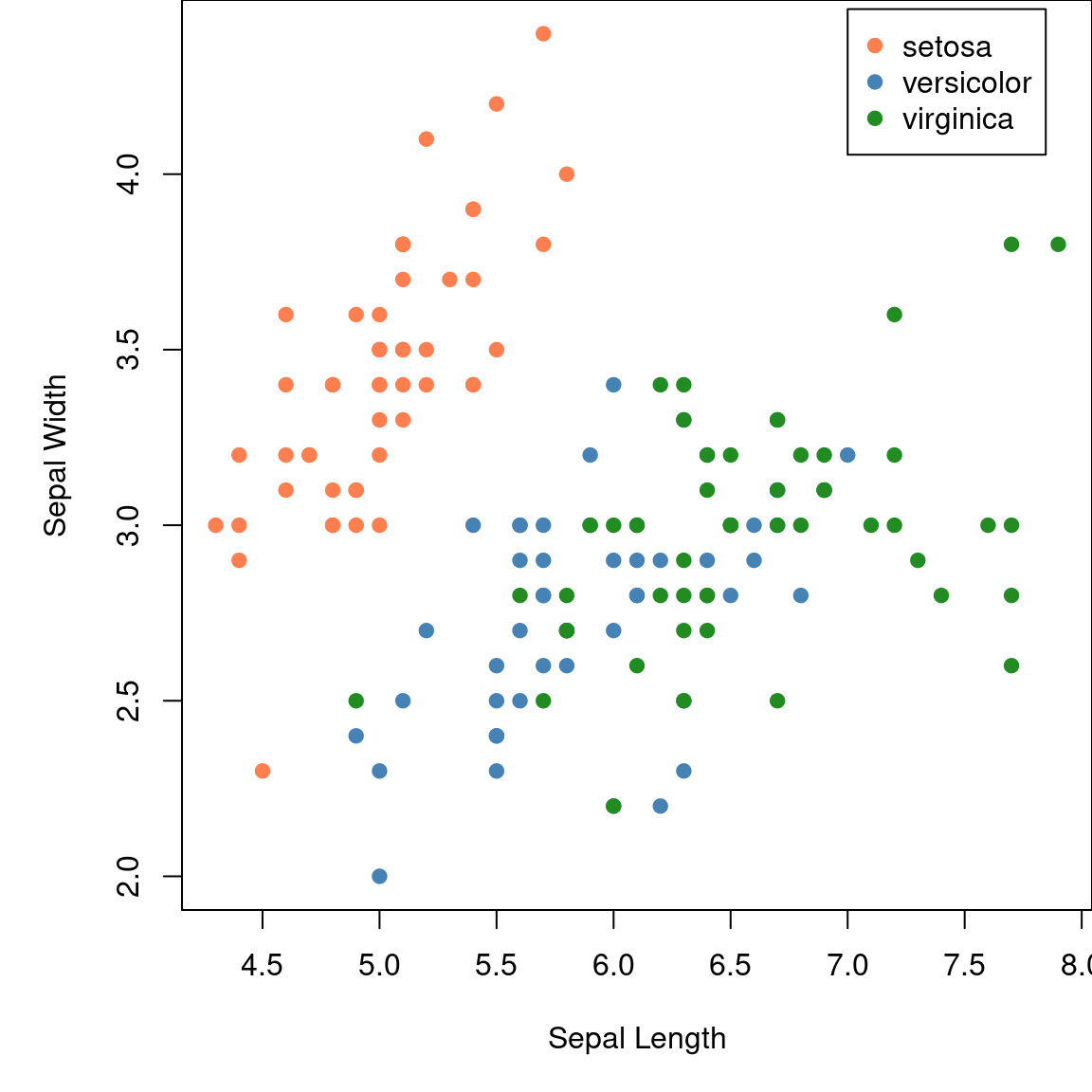

Static plots • Base Plot

Plots using base R.

{par(mar=c(5,5,0,0))
  plot(x=iris$Sepal.Length,y=iris$Sepal.Width,
      col=c("coral","steelblue","forestgreen")[iris$Species],
      xlab="Sepal Length",ylab="Sepal Width",pch=19)
  legend(x=7,y=4.47,legend=c("setosa","versicolor","virginica"),
       col=c("coral","steelblue","forestgreen"),pch=19)}

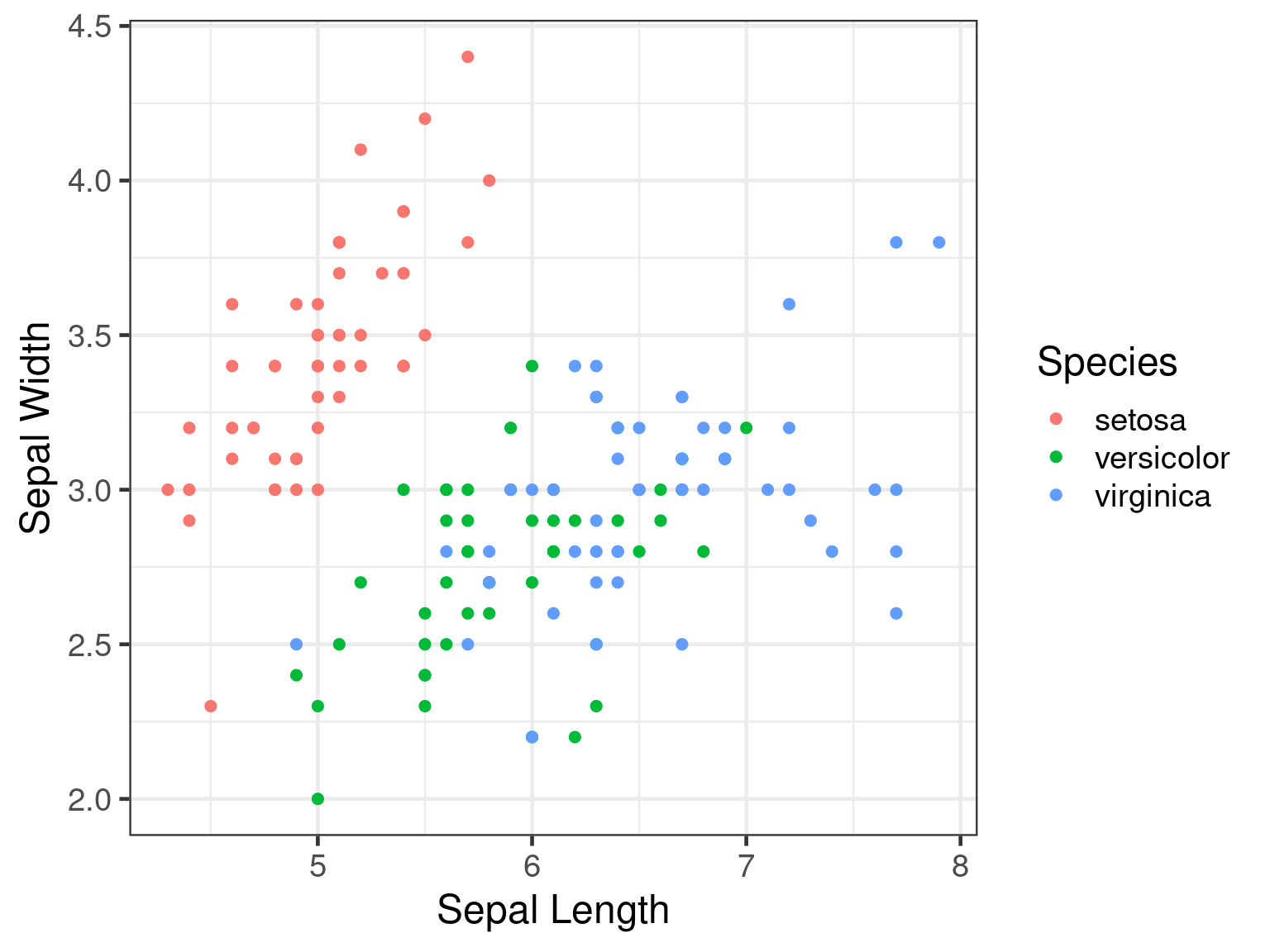

Static plots • ggplot2

Plotting using ggplot2.

iris %>%
  ggplot(aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point(size=2)+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_bw(base_size=18)

Interactive plots • rbokeh

R package rbokeh is an easy and convenient option to get started with interactive plots.

library(rbokeh)

figure(height=400,width=600,xlab="Sepal Length",ylab="Sepal Width") %>%
  ly_points(Sepal.Length,Sepal.Width,data=iris,
  color=Species,glyph=Species,hover=list(Sepal.Length,Sepal.Width))

Interactive scatterplot using rbokeh.

Interactive plots • highcharter

R package highcharter is a wrapper around javascript library highcharts.

library(highcharter)
h <- iris %>%
  hchart("scatter",hcaes(x="Sepal.Length",y="Sepal.Width",group="Species")) %>%
  hc_xAxis(title=list(text="Sepal Length"),crosshair=TRUE) %>%
  hc_yAxis(title=list(text="Sepal Width"),crosshair=TRUE) %>%
  hc_chart(zoomType="xy",inverted=FALSE) %>%
  hc_legend(verticalAlign="top",align="right") %>% hc_size(height=300,width=500)

htmltools::tagList(list(h))

Interactive plots • plotly

R package plotly provides R binding around javascript plotting library plotly.

library(plotly)
p <- iris %>%
  plot_ly(x=~Sepal.Length,y=~Sepal.Width,color=~Species,width=550,height=400) %>%
  add_markers()
p

Interactive plots • ggplotly

plotly also has a function called ggplotly which converts a static ggplot2 object into an interactive plot.

library(plotly)
p <- ggplot(iris,aes(x=Sepal.Length,y=Sepal.Width,col=Species))+
  geom_point()+
  labs(x="Sepal Length",y="Sepal Width")+
  theme_bw(base_size=12)

plotly::ggplotly(p,width=460,height=360)

Interactive plots • ggiraph

R package ggiraph converts a static ggplot2 object into an interactive plot.

library(ggiraph)
p <- ggplot(iris,aes(x=Sepal.Length,y=Petal.Length,colour=Species))+
      geom_point_interactive(aes(tooltip=paste0("<b>Petal Length:</b> ",Petal.Length,"\n<b>Sepal Length: </b>",Sepal.Length,"\n<b>Species: </b>",Species)),size=2)+
  theme_bw()
tooltip_css <- "background-color:#f8f9f9;padding:10px;border-style:solid;border-width:2px;border-color:#125687;border-radius:5px;"
ggiraph(code=print(p),hover_css="cursor:pointer;stroke:black;fill-opacity:0.3",zoom_max=5,tooltip_extra_css=tooltip_css,tooltip_opacity=0.9,height_svg=2,width_svg=4,width=0.6)

Interactive time series • dygraphs

R package dygraphs provides R bindings for javascript library dygraphs for time series data.

library(dygraphs)
lungDeaths <- cbind(ldeaths, mdeaths, fdeaths)
dygraph(lungDeaths,main="Deaths from Lung Disease (UK)") %>%
  dyOptions(colors=c("#66C2A5","#FC8D62","#8DA0CB"))

Network graph

R package networkD3 allows the use of interactive network graphs from the D3.js javascript library.

library(networkD3)
data(MisLinks,MisNodes)
forceNetwork(Links=MisLinks,Nodes=MisNodes,Source="source",
             Target="target",Value="value",NodeID="name",
             Group="group",opacity=0.4,
             height=300,width=500)

Interactive maps • leaflet

R package leaflet provides R bindings for javascript mapping library; leafletjs.

library(leaflet)
leaflet(height=300,width=800) %>%
  addTiles(urlTemplate='http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png') %>%
  #addProviderTiles(providers$Esri.NatGeoWorldMap) %>%
  addMarkers(lat=57.639327,lng=18.288534,popup="RaukR") %>%
  setView(lat=57.639327,lng=18.288534,zoom=15)

Linking Plots • crosstalk

R package crosstalk allows crosstalk enabled plotting libraries to be linked. Through the shared ‘key’ variable, data points can be manipulated simultaneously on two independent plots.

library(crosstalk)
shared_quakes <- SharedData$new(quakes[sample(nrow(quakes), 100),])
lf <- leaflet(shared_quakes,height=300) %>%
        addTiles(urlTemplate='http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png') %>%
        addMarkers()
py <- plot_ly(shared_quakes,x=~depth,y=~mag,size=~stations,height=300) %>%
        add_markers()
div(div(lf,style="float:left;width:49%"),div(py,style="float:right;width:49%"))

ObservableJS

  • Quarto supports ObservableJS for interactive visualisations in the browser.

Pass data from R to OJS

irism <- iris
colnames(irism) <- gsub("[.]","_",tolower(colnames(irism)))
ojs_define(ojsd = irism)
ojsdata = transpose(ojsd)

Display as a table

viewof filtered_table = Inputs.table(ojsdata)

ObservableJS

Define inputs

viewof x = Inputs.select(Object.keys(ojsdata[0]), {
  value: "sepal_length", multiple: false, label: "X axis"
  })
viewof y = Inputs.select(Object.keys(ojsdata[0]), {
  value: "sepal_width", multiple: false, label: "Y axis"
  })

Display plot

Plot.plot({
  marks: [
    Plot.dot(ojsdata, {
      x: x, y: y, fill: "species",
      title: (d) => `${d.species} \n Petal length: ${d.petal_length} \n Sepal length: ${d.sepal_length}`
    })
  ], grid: true
})

ObservableJS in quarto documentation.

Diagrams

```{mermaid}
flowchart LR
  A[Hard edge] --> B(Round edge)
  B --> C{Decision}
  C --> D[Result one]
  C --> E[Result two]
```
flowchart LR
  A[Hard edge] --> B(Round edge)
  B --> C{Decision}
  C --> D[Result one]
  C --> E[Result two]
flowchart LR
  A[Hard edge] --> B(Round edge)
  B --> C{Decision}
  C --> D[Result one]
  C --> E[Result two]

Colourful

This slide has a colourful background

##  Colourful {background-color="#ABEBC6"}

Big Image

This slide has a background image

##  Big Image {background-image="assets/featured.jpg"}

General tips

  • Replace assets/cover.jpg to change cover slide picture
  • Replace assets/end.jpg to change end slide picture
  • Add custom css under YAML css: "styles.css"
  • If content overflows the slide in vertical direction, add class .scrollable
                                      sysname
                                      "Linux"
                                      release
                        "5.15.49-linuxkit-pr"
                                      version
"#1 SMP PREEMPT Thu May 25 07:27:39 UTC 2023"
                                     nodename
                               "633e142b54b4"
                                      machine
                                     "x86_64"
                                        login
                                    "unknown"
                                         user
                                   "royfr474"
                               effective_user
                                   "royfr474"
  • Export HTML to PDF using PDF export mode by pressing e
  • For complete Quarto revealjs documentation, click here

Thank you! Questions?
