import pickle
import random
import sys
from typing import Optional
import matplotlib.pyplot as plt
import plotly.express as px
import plotly.graph_objects as go
import torch
import torch.nn as nn
from torch.utils.data import DataLoader, TensorDataset
import torchmetrics
import numpy as np
import pandas as pd
from sklearn.decomposition import PCA
class LivePlot():
def __init__(self):
self.fig = fig = go.FigureWidget()
self.plot_indices = {}
display(self.fig)
self.limits = [0,0]
self.current_x = 0
def report(self, name: str, value: float):
with self.fig.batch_update():
try:
plot_index = self.plot_indices[name]
except KeyError:
plot_index = len(self.plot_indices)
self.fig.add_scatter(y=[], x=[], name=name)
self.plot_indices[name] = plot_index
self.fig.data[plot_index].name = name # ← force-sync the name
self.fig.data[plot_index].y += (value,)
self.fig.data[plot_index].x += (self.current_x,)
def increment(self, n_ticks: int):
"Increment the currently displayed limits with these many ticks"
self.limits[1] += n_ticks
self.fig.update_layout(xaxis_range=self.limits)
def set_limit(self, n_ticks: int):
"Update the currently displayed to exactly these many ticsk"
self.limits[1] = n_ticks
self.fig.update_layout(xaxis_range=self.limits)
def tick(self, n_ticks: Optional[int] = None):
"Update the current time with these many ticks, or 1 tick if no argument is supplied."
if n_ticks is None:
n_ticks = 1
self.current_x += n_ticks
def train(*,
model: torch.nn.Module,
train_loader: DataLoader,
dev_loader: DataLoader,
optimizer: torch.optim.Optimizer,
criterion: torch.nn.Module,
max_epochs: int,
metric: torchmetrics.metric,
device: Optional[torch.device] = None,
liveplot: Optional[LivePlot]=None):
if device is None:
device = torch.device('cuda') if torch.cuda.is_available() else torch.device('cpu')
model.to(device)
metric = metric.to(device)
for epoch in range(max_epochs):
training_loss_acc = 0
training_examples = 0
training_accuracy = 0
model.train()
for i, batch in enumerate(train_loader):
optimizer.zero_grad()
x_batch, y_batch = batch
x_batch = x_batch.to(device)
y_hat, _ = model(x_batch)
loss = criterion(y_hat, y_batch.to(device))
loss.backward()
optimizer.step()
training_loss_acc += loss.item()
training_examples += x_batch.size(0)
training_accuracy += metric(torch.argmax(y_hat, -1), y_batch.to(device))
t_acc = training_accuracy.cpu() / (i+1)
model.eval()
with torch.no_grad():
dev_loss_acc = 0
dev_examples = 0
dev_accuracy = 0
for j, batch in enumerate(dev_loader):
x_batch, y_batch = batch
x_batch = x_batch.to(device)
y_hat, _ = model(x_batch)
dev_loss_acc += criterion(y_hat, y_batch.to(device)).item()
dev_examples += x_batch.size(0)
dev_accuracy += metric(torch.argmax(y_hat, -1), y_batch.to(device))
d_acc = dev_accuracy.cpu() / (j+1)
if liveplot is not None:
liveplot.tick() # Update the liveplot time
liveplot.report("Training accuracy", t_acc)
liveplot.report("Development accuracy", d_acc)Target leakage example: classifying text data (tweets)
Target Leakage lab
In this lab, we will load a new dataset from disk, clean it up and prepare it for training. The data here is of text type, as this is a dataset of 3000 tweets. So, we have to deal with short text inputs.
Each tweet has been written by one of two well-known individuals from the world of US politics. Our task is simply to decide who wrote it. Donald or Hillary?
The first question here is: how do we deal with string inputs? We can’t multiply a word by a weight, so we need to translate the text input in numbers before we proceed and feed it to our first layer. In this case, there are usually two options. The first is called “one-hot” encoding, where each word in a dictionary is translated to a vectors of ones and zeros. If there are 10 words in our dictionary (for example, the words are “zero”, “one”, “two” … “nine”), each vector will contain ten elements, with nine elements set to zero and one set to one:
- “zero” -> [1, 0, 0, 0, 0, 0, 0, 0, 0, 0]
- “one” -> [0, 1, 0, 0, 0, 0, 0, 0, 0, 0]
- “two” -> [0, 0, 1, 0, 0, 0, 0, 0, 0, 0]
- …
- “nine” -> [0, 0, 0, 0, 0, 0, 0, 0, 0, 1]
This is usually ok when dealing with text (or, more generically, “categorical”) variables taken from a relatively small dictionary. In the case of tweets, we might be dealing with very a dictionary containing tens of thousands of different terms, so we would have huge inputs of sparse vectors of zeros and ones. This is not ideal.

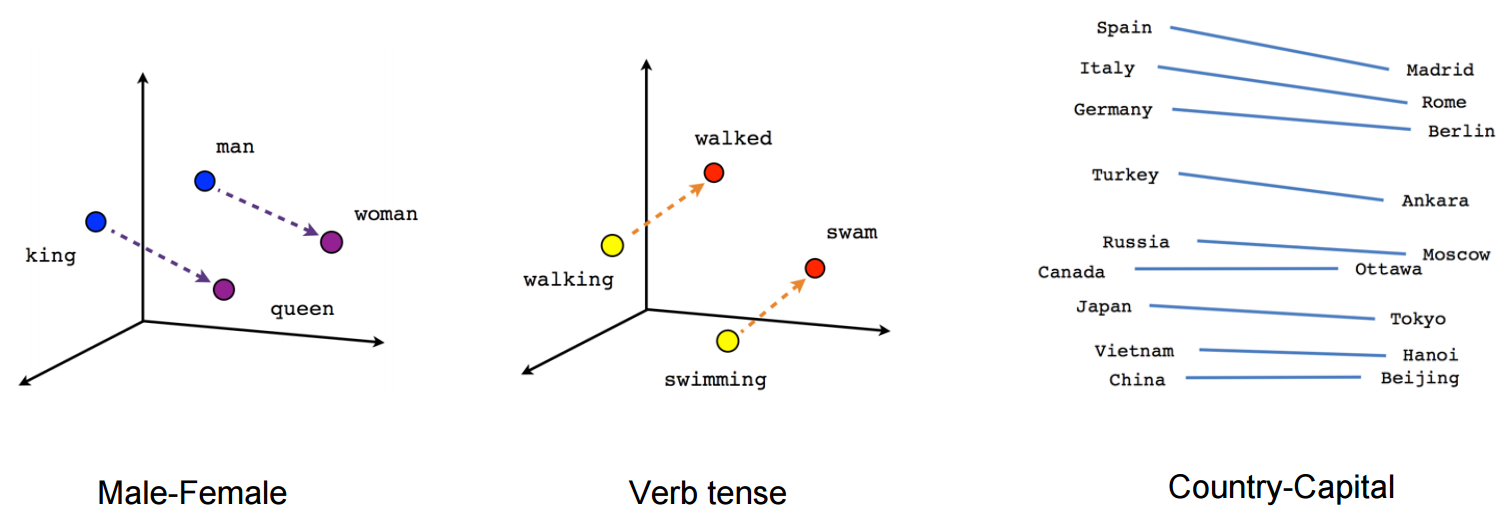

The second option is to use word embeddings, which translate each word to a vector of floating points with some nice properties, as we can see in the following image:
Check out this cool page visualizing embeddings calculated on the whole English dictionary for more examples.
Embeddings are done with a special NN layer that is called simply Embedding. The Embedding layer is provided with a number of text inputs (in our case, tweets) and learns to map similar words into n-dimensional vectors that are close together in the corresponding n-dimensional space.
In the following piece of code, we will start by loading the dataset with pandas and preparing it for training.
Notice how before we can use the Embedding layer, we want to map each word to an integer. This is because the input to an Embedding layer is actually a set of integers, where each integer represents a word. The important thing here, is that a given word has to be mapped always to the same integer throughout the whole dataset, so that the Embedding layer can recognise it from different tweets.
In this case, for example, the word “the” will always be mapped to the number 1, the word “question” to the number 2, etc.
- “The question is what to do” -> [1, 2, 32, 55, 87]
- “I don’t understand the question” -> [12, 4, 123, 1, 2]
Let’s start by defining helper function to plot curves and train the model:
Download the dataset (uncomment and run)
!mkdir data/
!wget -P data https://github.com/NBISweden/workshop-neural-nets-and-deep-learning/raw/refs/heads/master/session_goodPracticesDatasetDesign/lab_targetLeakage/data/tweets.csvNow let’s load the dataset, which in this case is saved as CSV file, and let’s print one tweet:
import pandas as pd
tweet_dataset = pd.read_csv("data/tweets.csv")tweet_dataset.head()tweet_dataset["text"]Then we apply a few basic operations to handle it more easily, for example:
- We add a space after every non-alphanumeric character so that we have, for example “-Hello” -> “- Hello”
- We make all words lower case, so that “Hello” == “hello”
- Lastly, we split each tweet by using space as delimiter, so that we have a list of words for each tweet
Then we assign a unique integer to each unique word in the dataset, so that we can translate each tweet to a list of numbers. But equal numbers will always correspond to equal words across all tweets! Notice how we reserve the integer “0” for “padding”. This means that since the longest tweet has 58 words (so a list of 58 integers), we will add a series of “0”s to shorter tweets until they are also represented by a list of 58 integers.
Lastly, we assign to our labels (in this case the author of the tweets) one class between 0 and 1.
#Get rid of all retweets
tweet_dataset_clean = tweet_dataset[tweet_dataset["is_retweet"] == False]
#make all words lower case
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.lower()
#Remove URLs
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.replace(r'http\S+|www.\S+', '', case=False, regex=True)
#remove hashtags
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.replace(r'#[a-zA-Z0-9]+', '', case=False, regex=True)
#remove @ mentions
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.replace(r'@[a-zA-Z0-9]*', '', case=False, regex=True)
#remove newlines
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.replace(r'\n', '', case=False, regex=True)
#Now let's make sure that non-alphanumeric characters are taken as single words
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.replace(r'\s*([^a-zA-Z0-9 ])\s*', ' \\1 ', case=False, regex=True)
#split the tweets in list of words
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.strip()
tweet_dataset_clean["text"] = tweet_dataset_clean["text"].str.split(r'\s+')
#since the neural networks don't really like string inputs,
#we have to convert each word to a unique integer.
integer_dict = {}
integer_dict["padding"] = 0
word_dict = {}
word_dict[0] = "padding"
#assign a unique integer to each unique word
count = 1
for index, row in tweet_dataset_clean.iterrows():
for element in row["text"]:
if element not in integer_dict.keys():
integer_dict[element] = count
word_dict[count] = element
count += 1
tweet_dataset_clean["numbers"] = tweet_dataset_clean["text"].apply(lambda x:[integer_dict[y] for y in x])
#Let's also assign integer labels
tweet_dataset_clean.loc[tweet_dataset_clean["handle"] == "realDonaldTrump","label"] = 1
tweet_dataset_clean.loc[tweet_dataset_clean["handle"] == "HillaryClinton","label"] = 0
#The longest tweet has 58 words, this will add padding to shorter tweets
x = pd.DataFrame(tweet_dataset_clean["numbers"].values.tolist()).values
x[np.where(np.isnan(x[:]))] = 0
y = np.array(tweet_dataset_clean["label"])Check the effect that this has had on the first tweet:
Now, we will see how we can use Embeddings to transform our dictionary of words into a dictionary of float vectors.
First, let’s use Embeddings, followed by Dense layers:
class Model(nn.Module):
def __init__(self, vocabulary_size, sequence_length, convolutional=False):
super(Model, self).__init__()
self.convolutional = convolutional
self.vocabulary_size = vocabulary_size
self.sequence_length = sequence_length
embed_size = 8
bidir_size = 4
fc_size = 4
n_classes = 2
self.embedding = nn.Embedding(self.vocabulary_size, embed_size)
if convolutional:
self.conv1 = nn.Conv1d(embed_size, 4, kernel_size=7)
self.conv2 = nn.Conv1d(4, 8, kernel_size=5)
self.conv3 = nn.Conv1d(8, 8, kernel_size=3)
flat_size = (self.sequence_length - 12) * 8
else:
self.lstm = nn.LSTM(embed_size, bidir_size,
batch_first=True, bidirectional=False)
flat_size = self.sequence_length * bidir_size
self.fc1 = nn.Linear(flat_size, fc_size)
self.fc2 = nn.Linear(fc_size, n_classes)
def forward(self, x):
embeddings = self.embedding(x) # (batch, window, embed_size)
if self.convolutional:
x = embeddings.permute(0, 2, 1) # (batch, embed_size, window)
x = torch.relu(self.conv1(x))
x = torch.relu(self.conv2(x))
x = torch.relu(self.conv3(x))
else:
x, _ = self.lstm(embeddings) # (batch, window, bidir_size*2)
x = x.reshape(x.size(0), -1) # flatten
x = self.fc1(x)
x = self.fc2(x) # raw logits
return x, embeddingsSplit the data, create data loaders:
batch_size = 16
# split the data:
n_samples = x.shape[0]
random_ix = np.arange(n_samples) #np.random.choice(np.arange(n_samples), n_samples, replace=False)
train_samples = int(n_samples * 0.9)
# shuffle tweets before splitting into sets
train_ix = random_ix[:train_samples]
train_x = x[train_ix]
train_y = y[train_ix]
dev_ix = random_ix[train_samples:]
dev_x = x[dev_ix]
dev_y = y[dev_ix]
train_set = TensorDataset(torch.tensor(train_x, dtype=torch.long), torch.tensor(train_y, dtype=torch.long))
dev_set = TensorDataset(torch.tensor(dev_x, dtype=torch.long), torch.tensor(dev_y, dtype=torch.long))
train_loader = DataLoader(
train_set,
batch_size=batch_size,
shuffle=True,
)
dev_loader = DataLoader(
dev_set,
batch_size=batch_size,
shuffle=False,
)Train the model and plot the training curves:
device = torch.device('cuda') if torch.cuda.is_available() else torch.device('cpu')
# load a new model
model = Model(convolutional=True, vocabulary_size=count, sequence_length=train_x.shape[1])
# define optimizer and loss function
epochs = 20
learning_rate = 1e-3
optimizer = torch.optim.Adam(model.parameters(), lr=learning_rate)
criterion = nn.CrossEntropyLoss()
accuracy = torchmetrics.Accuracy(task='multiclass', num_classes=2, top_k=1)
# Setup plot
liveplot = LivePlot()
liveplot.increment(epochs)
train(model=model,
train_loader=train_loader,
dev_loader=dev_loader,
optimizer=optimizer,
criterion=criterion,
metric=accuracy,
max_epochs=epochs,
liveplot=liveplot,
device=device)When a model has been trained, you can of course reused to predict future samples. That is how you actually use your model when the job is done!
Can you think of a good dataset that you could use to test your model?
tweet = "crooked hillary sad !"
tweet = tweet.lower()
words = tweet.split(" ")
tweet_integer = np.array([integer_dict[element] for element in words])
tweet_padded = np.zeros(train_x.shape[1])
tweet_padded[:len(tweet_integer)] = tweet_integer
tweet_padded = tweet_padded[np.newaxis, :]
print("Input shape", tweet_padded.shape)
pred, embeddings = model(torch.tensor(tweet_padded, dtype=torch.long))
print("Predicted logits:", pred)How do we convert these predicted values into probabilities?
Questions
- Which type of network works best?
- What could be a better network layer given the nature of this dataset?
- What is the meaning of the “count” variable used in the Embedding layer?
- Why does the last layer have 2 units? Why is the activation of the ‘softmax’ type?
- Play around with the hyperparameters, is there a way to improve the models?
Now let’s visualize the outputs of the embedding layer. We extract the embedding layer from the trained model and we use it to calculate embeddings for every word in our dictionary. Then, we map the 32-dimensional output vector onto 2 dimensions with the help of principal component analysis (PCA).
n_words = 1000
words = torch.tensor(np.arange(n_words)[None, :])
embedded_words = np.squeeze(model.embedding(words).cpu().detach().numpy())
pca = PCA(n_components=8)
points_pca = pca.fit_transform(embedded_words)fig = px.scatter(x=points_pca[:,0], y=points_pca[:,1], text=[word_dict[i] if i < 8000 else "" for i in range(n_words)], width=2400, height=800)
fig.update_traces(textposition='top center')
fig.show()Questions: what is wrong (or right) with this dataset?
Take a few minutes to analyze the word cloud. Can you see what kind of words make the classification easier? If you wanted to make a less biased (and harder to classify) dataset, what would you change?
If possible, go back to the dataset generation step and remove words that make the classification task too easy. Then, try and train a new network. Are the results the same as before?
Why do you think that the “Dense” network (Feed-forward, fully connected) works as well as the LSTM recurrent network on the dataset as it is now?
Now that we have trained and validated our model, what would you suggest using as test set?
Here are a few examples of how the dataset can be manipulated. Try these lines of code (and come up with some others!) by pasting them in the right place the code block where the dataset is loaded (second code cell):
#Remove a word
tweet_dataset["text"] = tweet_dataset["text"].str.replace('crooked', '', case=False)
#Remove non-alphanumeric characters
tweet_dataset["text"] = tweet_dataset["text"].str.replace(r'\s*([^a-zA-Z0-9 ])\s*', '', case=False, regex=True)
