Analysis of bulk RNA-Seq data

Introduction To Bioinformatics Using NGS Data

25-May-2021

NBIS

1/50

Contents

2/50

RNA Sequencing

  • The transcriptome is spatially and temporally dynamic
  • Data comes from functional units (coding regions)
  • Only a tiny fraction of the genome
3/50
  • What is RNA?
  • Central dogma of molecular biology. DNA -> RNA -> Protein.
  • We have gene models to explain organisation of the DNA into functional units.
  • Very tiny portion of the genome transcribes to RNA.
  • There are many types of RNA. Commonly protein coding RNA or mRNA. There are tRNA, sRNA, miRNA, siRNA, lincRNA etc.
  • What is the most abundant RNA? rRNA.
  • Why are we interested in RNA? While DNA is constant in all cells, expressed RNA varies from cell to cell and from time to time.
  • When we say RNA sequencing, what we sequencing?. For most part we are converting RNA to DNA and sequencing the DNA just like regular DNA sequencing.

Applications

  • Identify gene sequences in genomes
  • Learn about gene function
  • Differential gene expression
  • Explore isoform and allelic expression
  • Understand co-expression, pathways and networks
  • Gene fusion
  • RNA editing
4/50

Workflow

Conesa, Ana, et al. "A survey of best practices for RNA-seq data analysis." Genome biology 17.1 (2016): 13

5/50

Experimental design

  • Balanced design
  • Technical replicates not necessary (Marioni et al., 2008)
  • Biological replicates: 6 - 12 (Schurch et al., 2016)
  • ENCODE consortium
  • Previous publications
  • Power analysis

RnaSeqSampleSize (Power analysis), Scotty (Power analysis with cost)

Busby, Michele A., et al. "Scotty: a web tool for designing RNA-Seq experiments to measure differential gene expression." Bioinformatics 29.5 (2013): 656-657
Marioni, John C., et al. "RNA-seq: an assessment of technical reproducibility and comparison with gene expression arrays." Genome research (2008)
Hart, S. N., Therneau, T. M., Zhang, Y., Poland, G. A., & Kocher, J. P. (2013). Calculating sample size estimates for RNA sequencing data. Journal of computational biology, 20(12), 970-978.
Schurch, Nicholas J., et al. "How many biological replicates are needed in an RNA-seq experiment and which differential expression tool should you use?." Rna (2016)
Zhao, Shilin, et al. "RnaSeqSampleSize: real data based sample size estimation for RNA sequencing." BMC bioinformatics 19.1 (2018): 191

6/50

RNA extraction

  • Sample processing and storage
  • Total RNA/mRNA/small RNA
  • DNAse treatment
  • Quantity & quality
  • RIN values (Strong effect)
  • Batch effect
  • Extraction method bias (GC bias)

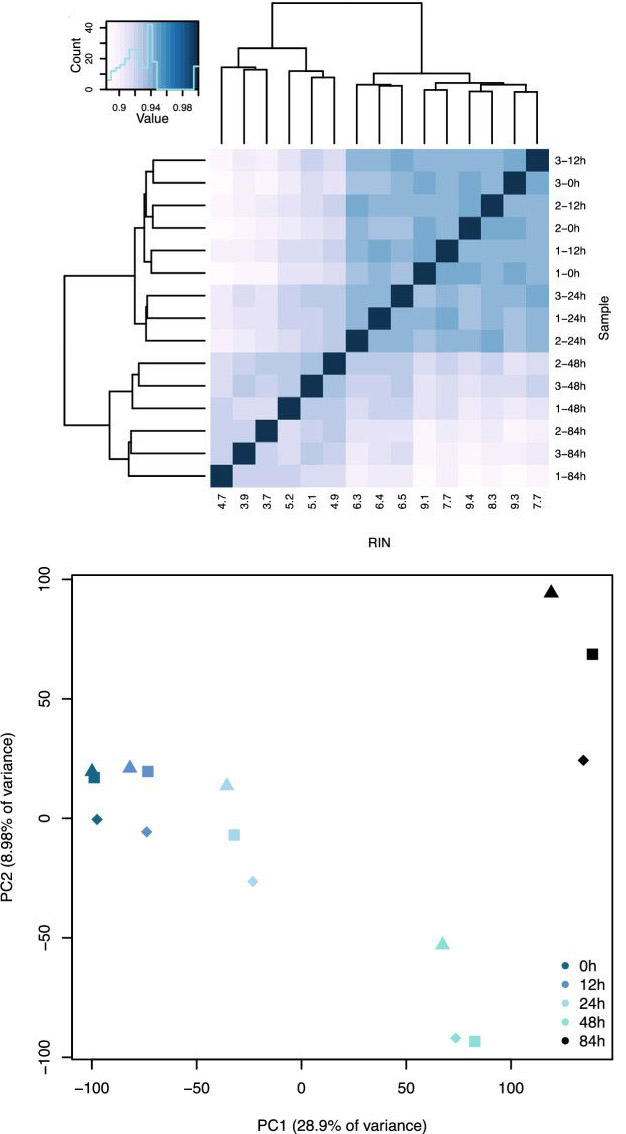

Romero, Irene Gallego, et al. "RNA-seq: impact of RNA degradation on transcript quantification." BMC biology 12.1 (2014): 42
Kim, Young-Kook, et al. "Short structured RNAs with low GC content are selectively lost during extraction from a small number of cells." Molecular cell 46.6 (2012): 893-89500481-9).

7/50

Library prep

  • PolyA selection
  • rRNA depletion
  • Size selection
  • PCR amplification (See section PCR duplicates)
  • Stranded (directional) libraries
    • Accurately identify sense/antisense transcript
    • Resolve overlapping genes
  • Exome capture
  • Library normalisation
  • Batch effect

Zhao, Shanrong, et al. "Comparison of stranded and non-stranded RNA-seq transcriptome profiling and investigation of gene overlap." BMC genomics 16.1 (2015): 675
Levin, Joshua Z., et al. "Comprehensive comparative analysis of strand-specific RNA sequencing methods." Nature methods 7.9 (2010): 709

8/50

Sequencing

  • Sequencer (Illumina/PacBio)
  • Read length
    • Greater than 50bp does not improve DGE
    • Longer reads better for isoforms
  • Pooling samples
  • Sequencing depth (Coverage/Reads per sample)
  • Single-end reads (Cheaper)
  • Paired-end reads
    • Increased mappable reads
    • Increased power in assemblies
    • Better for structural variation and isoforms
    • Decreased false-positives for DGE

Chhangawala, Sagar, et al. "The impact of read length on quantification of differentially expressed genes and splice junction detection." Genome biology 16.1 (2015): 131
Corley, Susan M., et al. "Differentially expressed genes from RNA-Seq and functional enrichment results are affected by the choice of single-end versus paired-end reads and stranded versus non-stranded protocols." BMC genomics 18.1 (2017): 399
Liu, Yuwen, Jie Zhou, and Kevin P. White. "RNA-seq differential expression studies: more sequence or more replication?." Bioinformatics 30.3 (2013): 301-304
Comparison of PE and SE for RNA-Seq, SciLifeLab

9/50

Workflow • DGE

10/50

De-Novo assembly

  • When no reference genome available
  • To identify novel genes/transcripts/isoforms
  • Identify fusion genes
  • Assemble transcriptome from short reads
  • Access quality of assembly and refine
  • Map reads back to assembled transcriptome

Trinity, SOAPdenovo-Trans, Oases, rnaSPAdes

Hsieh, Ping-Han et al., "Effect of de novo transcriptome assembly on transcript quantification" 2018 bioRxiv 380998
Wang, Sufang, and Michael Gribskov. "Comprehensive evaluation of de novo transcriptome assembly programs and their effects on differential gene expression analysis." Bioinformatics 33.3 (2017): 327-333

11/50

Read QC

  • Number of reads
  • Per base sequence quality
  • Per sequence quality score
  • Per base sequence content
  • Per sequence GC content
  • Per base N content
  • Sequence length distribution
  • Sequence duplication levels
  • Overrepresented sequences
  • Adapter content
  • Kmer content

FastQC, MultiQC

https://sequencing.qcfail.com/

12/50

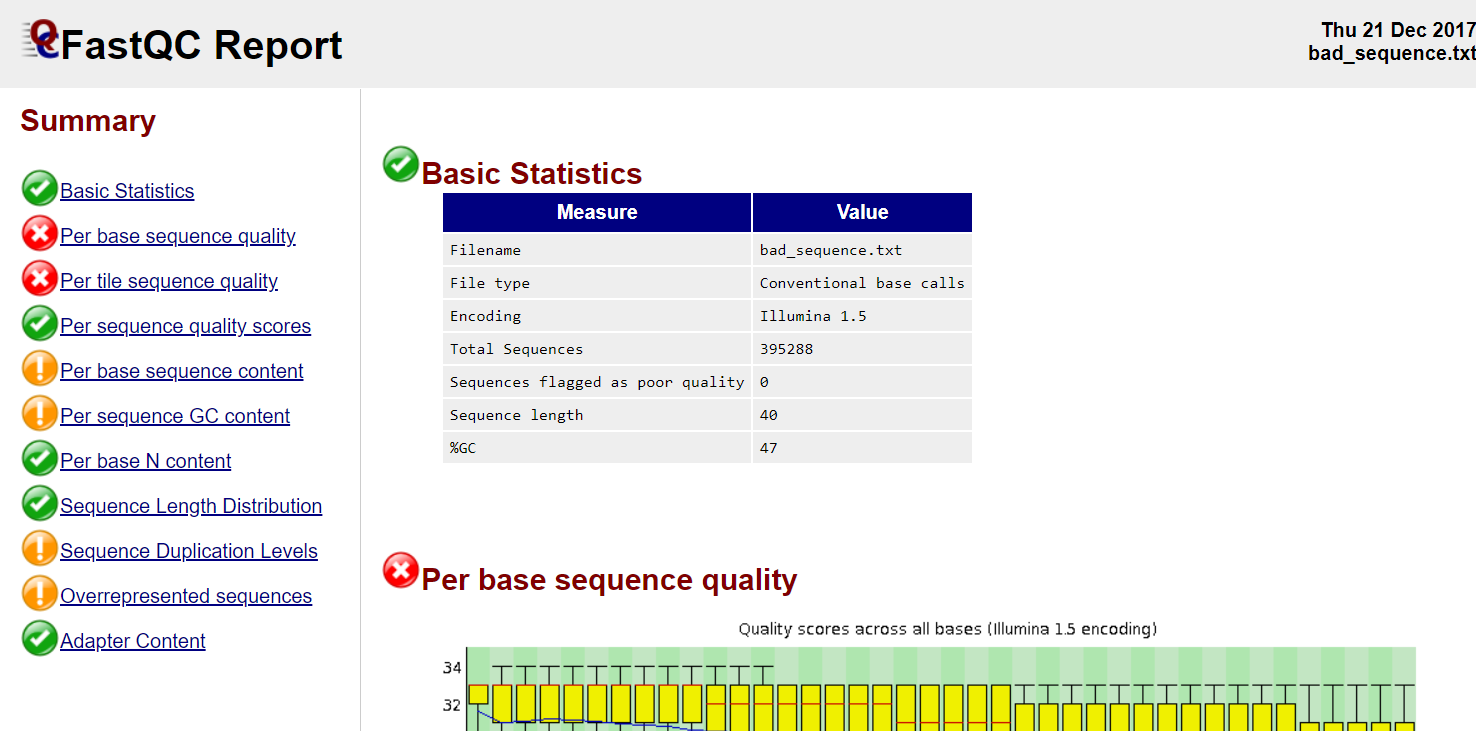

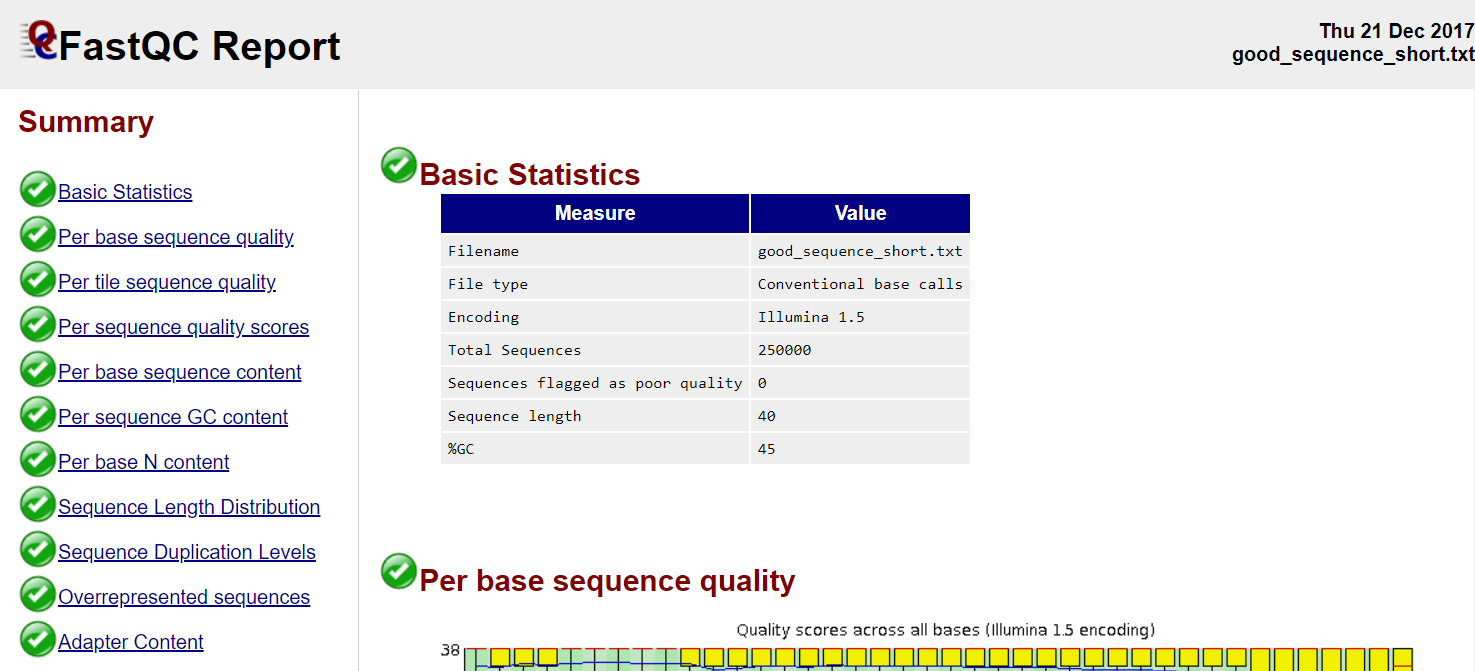

FastQC

Good quality

Poor quality

13/50

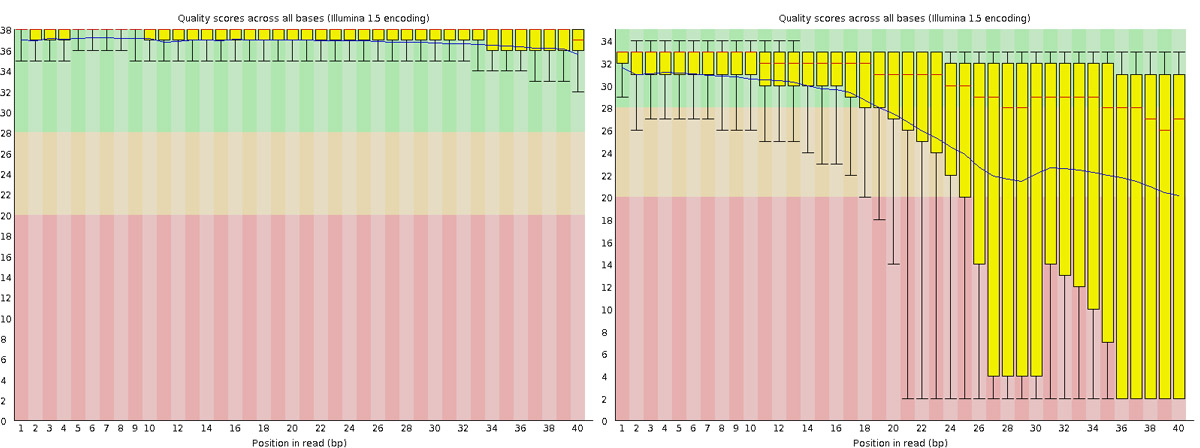

Read QC • PBSQ, PSQS

Per base sequence quality Per sequence quality scores

14/50

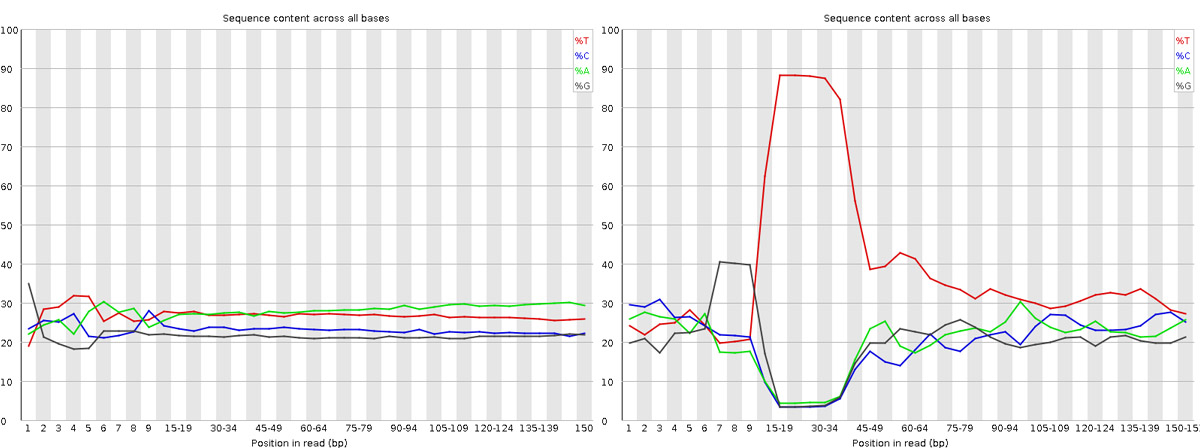

Read QC • PBSC, PSGC

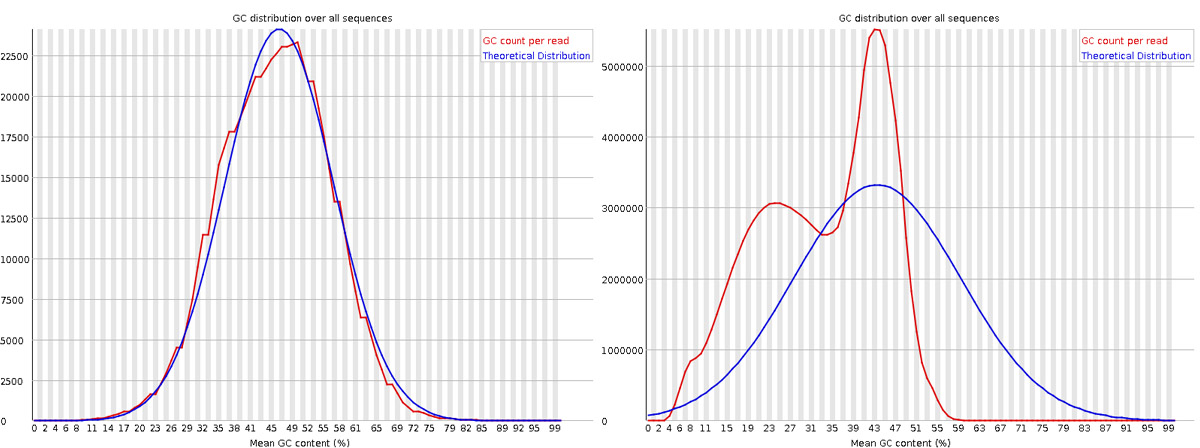

Per base sequence content Per sequence GC content

15/50

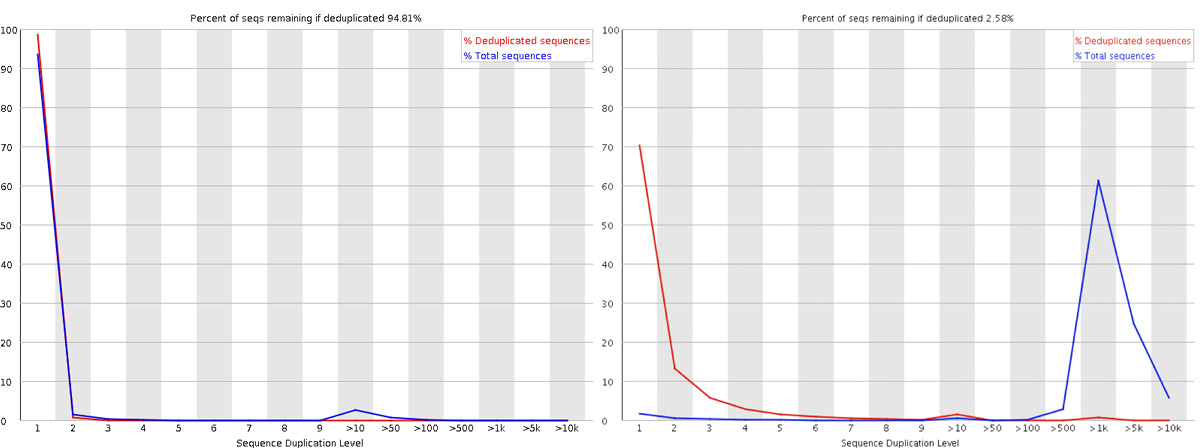

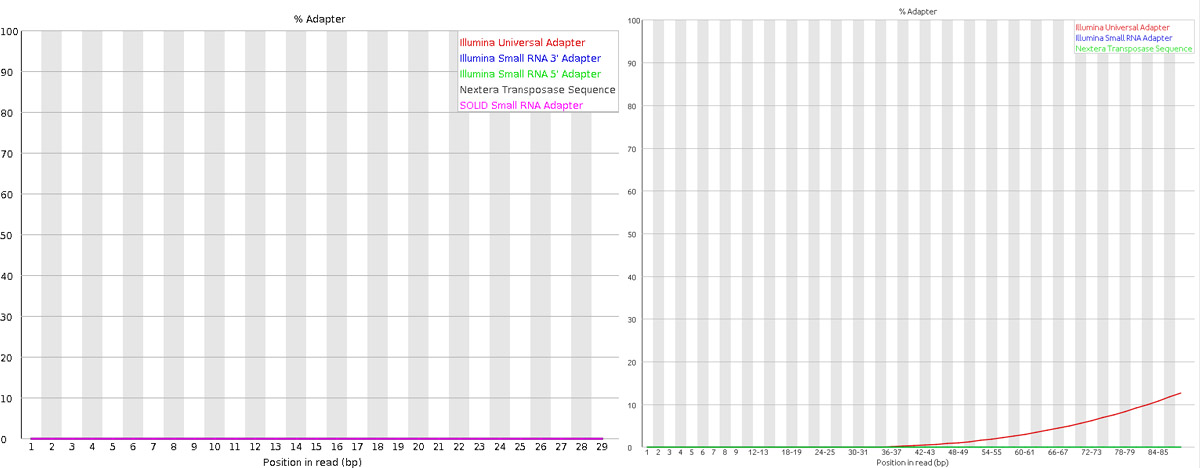

Read QC • SDL, AC

Sequence duplication level Adapter content

16/50

Trimming

  • Trim IF necessary
    • Synthetic bases can be an issue for SNP calling
    • Insert size distribution may be more important for assemblers
  • Trim/Clip/Filter reads
  • Remove adapter sequences
  • Trim reads by quality
  • Sliding window trimming
  • Filter by min/max read length
    • Remove reads less than ~18nt
  • Demultiplexing/Splitting

Cutadapt, fastp, Skewer, Prinseq

17/50

Mapping

  • Aligning reads back to a reference sequence
  • Mapping to genome vs transcriptome
  • Splice-aware alignment (genome)

STAR, HiSat2, GSNAP, Novoalign (Commercial)

Baruzzo, Giacomo, et al. "Simulation-based comprehensive benchmarking of RNA-seq aligners." Nature methods 14.2 (2017): 135

18/50

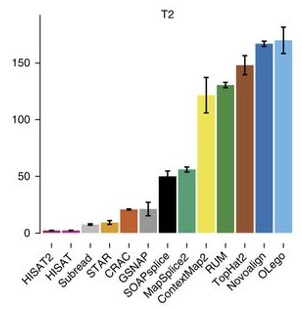

Aligners • Speed

Program Time_Min Memory_GB
HISATx1 22.7 4.3
HISATx2 47.7 4.3
HISAT 26.7 4.3
STAR 25 28
STARx2 50.5 28
GSNAP 291.9 20.2
TopHat2 1170 4.3

Baruzzo, Giacomo, et al. "Simulation-based comprehensive benchmarking of RNA-seq aligners." Nature methods 14.2 (2017): 135

19/50

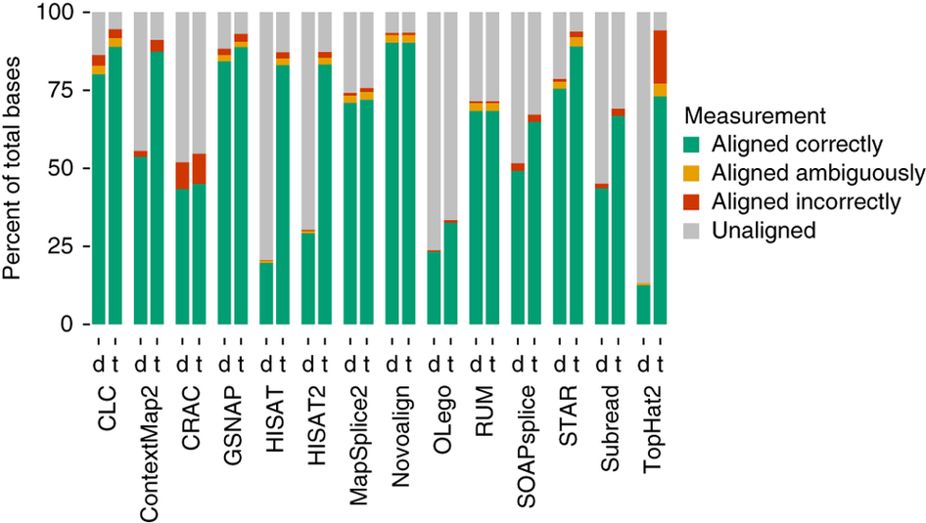

Aligners • Accuracy

STAR, HiSat2, GSNAP, Novoalign (Commercial)

Baruzzo, Giacomo, et al. "Simulation-based comprehensive benchmarking of RNA-seq aligners." Nature methods 14.2 (2017): 135

20/50

Mapping

  • Reads (FASTQ)
@ST-E00274:179:HHYMLALXX:8:1101:1641:1309 1:N:0:NGATGT
NCATCGTGGTATTTGCACATCTTTTCTTATCAAATAAAAAGTTTAACCTACTCAGTTATGCGCATACGTTTTTTGATGGCATTTCCATAAACCGATTTTTTTTTTATGCACGTACCCAAAACGTGCAGAAAAATACGCTGCTAGAAATGTA
+
#AAAFAFA<-AFFJJJAFA-FFJJJJFFFAJJJJ-<FFJJJ-A-F-7--FA7F7-----FFFJFA<FFFFJ<AJ--FF-A<A-<JJ-7-7-<FF-FFFJAFFAA--A--7FJ-7----77-A--7F7)---7F-A----7)7-----7<<-

@instrument:runid:flowcellid:lane:tile:xpos:ypos read:isfiltered:controlnumber:sampleid

  • Reference Genome/Transcriptome (FASTA)
>1 dna:chromosome chromosome:GRCz10:1:1:58871917:1 REF
GATCTTAAACATTTATTCCCCCTGCAAACATTTTCAATCATTACATTGTCATTTCCCCTC
CAAATTAAATTTAGCCAGAGGCGCACAACATACGACCTCTAAAAAAGGTGCTGTAACATG
  • Annotation (GTF/GFF)
#!genome-build GRCz10
#!genebuild-last-updated 2016-11
4       ensembl_havana  gene    6732    52059   .       -       .       gene_id "ENSDARG00000104632"; gene_version "2"; gene_name "rerg"; gene_source "ensembl_havana"; gene_biotype "protein_coding"; havana_gene "OTTDARG00000044080"; havana_gene_version "1";

seq source feature start end score strand frame attribute

Illumina read name format, GTF format

21/50

Alignment

  • SAM/BAM (Sequence Alignment Map format)
ST-E00274:188:H3JWNCCXY:4:1102:32431:49900      163     1       1       60      8S139M4S      =       385     535     TATTTAGAGATCTTAAACATCCATTCCCCCTGCAAACATTTTCAATCATTACATTGTCATTTTCCCTCCAAATTAAATTTAGCCAGAGGCGCACAACATACGACCTCTAAAAAAGGTGCTGGAACATGTACCTATATGCAGCACCACCATC     AAAFAFFAFFFFJ7FFFFJ<JAFA7F-<AJ7JJ<FFFJ--<FAJF<7<7FAFJ-<AFA<-JJJ-AF-AJ-FF<F--A<FF<-7777-7JA-77A---F-7AAFF-FJA--77FJ<--77)))7<JJA<J77<-------<7--))7)))7-    NM:i:4   MD:Z:12T0T40C58T25      AS:i:119        XS:i:102        XA:Z:17,-53287490,4S33M4D114M,11;     MQ:i:60 MC:Z:151M       RG:Z:ST-E00274_188_H3JWNCCXY_4

query flag ref pos mapq cigar mrnm mpos tlen seq qual opt

Never store alignment files in raw SAM format. Always compress it!

Format Size_GB
SAM 7.4
BAM 1.9
CRAM lossless Q 1.4
CRAM 8 bins Q 0.8
CRAM no Q 0.26

SAM file format

22/50

Visualisation • tview

samtools tview alignment.bam genome.fasta

23/50

Visualisation • IGV

IGV, UCSC Genome Browser

24/50

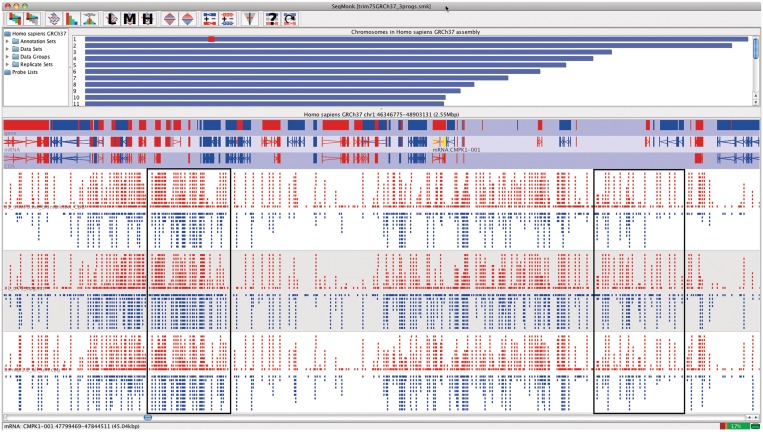

Visualisation • SeqMonk

SeqMonk

25/50

Alignment QC

  • Number of reads mapped/unmapped/paired etc
  • Uniquely mapped
  • Insert size distribution
  • Coverage
  • Gene body coverage
  • Biotype counts / Chromosome counts
  • Counts by region: gene/intron/non-genic
  • Sequencing saturation
  • Strand specificity

STAR (final log file), samtools > stats, bamtools > stats, QoRTs, RSeQC, Qualimap

26/50

Alignment QC • STAR Log

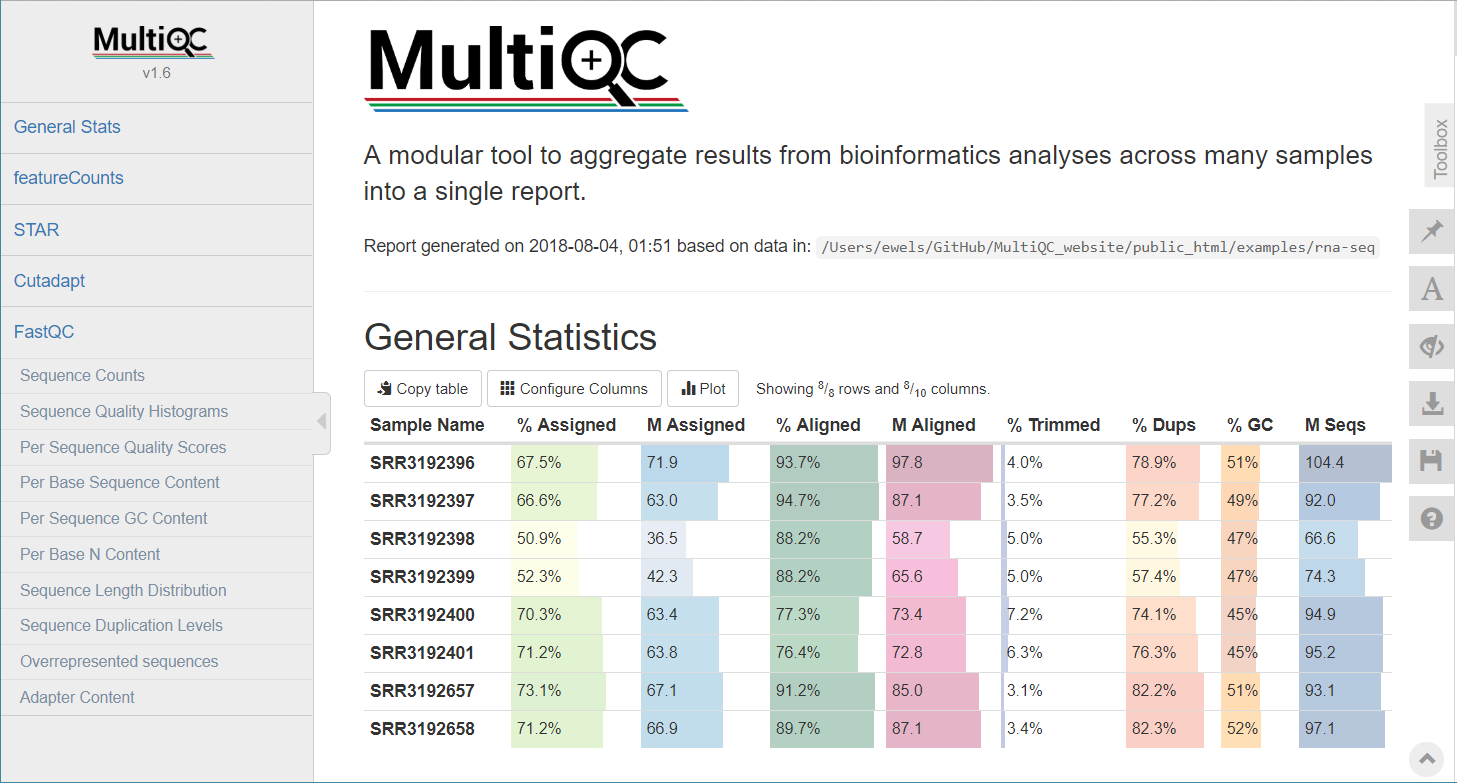

MultiQC can be used to summarise and plot STAR log files.

27/50

Alignment QC • Features

QoRTs was run on all samples and summarised using MultiQC.

28/50

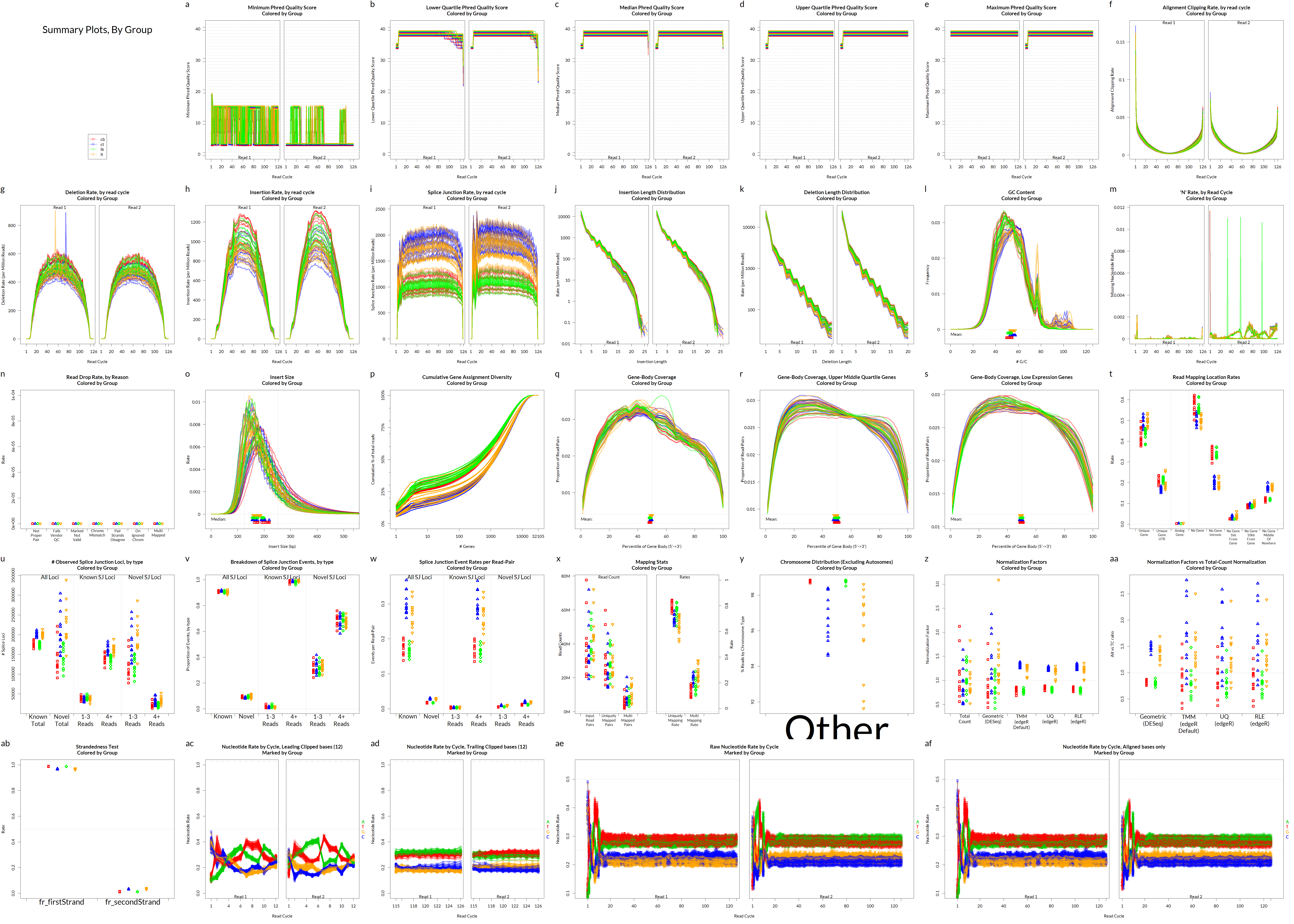

Alignment QC • QoRTs

29/50

Alignment QC • Examples

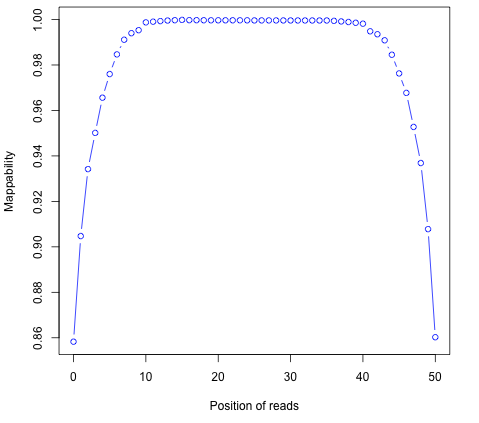

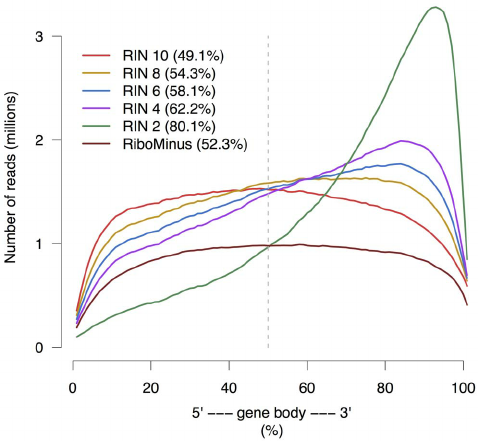

Soft clipping

Gene body coverage

30/50

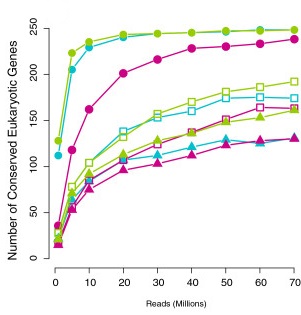

Alignment QC • Examples

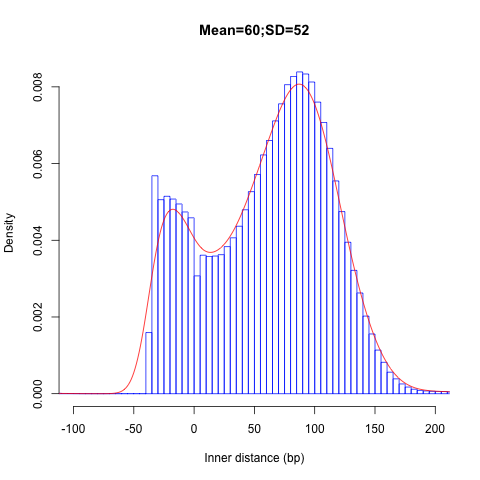

Insert size

Saturation curve

31/50

Quantification • Counts

  • Read counts = gene expression
  • Reads can be quantified on any feature (gene, transcript, exon etc)
  • Intersection on gene models
  • Gene/Transcript level

featureCounts, HTSeq

32/50

Quantification

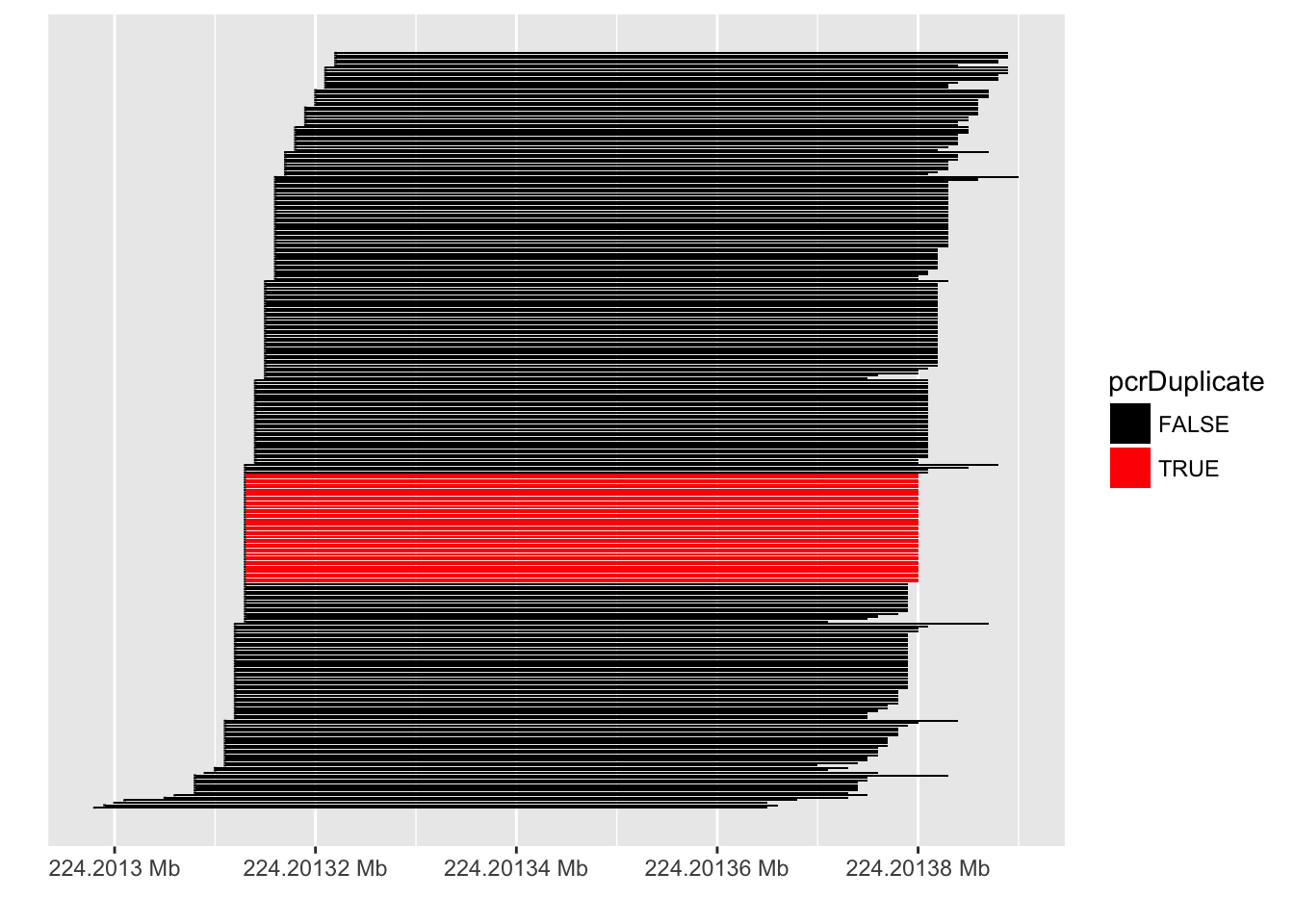

PCR duplicates

  • Ignore for RNA-Seq data
  • Computational deduplication (Don't!)
  • Use PCR-free library-prep kits
  • Use UMIs during library-prep

Multi-mapping

  • Added (BEDTools multicov)
  • Discard (featureCounts, HTSeq)
  • Distribute counts (Cufflinks, featureCounts)
  • Rescue
    • Probabilistic assignment (Rcount, Cufflinks)
    • Prioritise features (Rcount)
    • Probabilistic assignment with EM (RSEM)

Fu, Yu, et al. "Elimination of PCR duplicates in RNA-seq and small RNA-seq using unique molecular identifiers." BMC genomics 19.1 (2018): 531
Parekh, Swati, et al. "The impact of amplification on differential expression analyses by RNA-seq." Scientific reports 6 (2016): 25533
Klepikova, Anna V., et al. "Effect of method of deduplication on estimation of differential gene expression using RNA-seq." PeerJ 5 (2017): e3091

33/50

Quantification • Abundance

  • Count methods
    • Provide no inference on isoforms
    • Cannot accurately measure fold change
  • Probabilistic assignment
    • Deconvolute ambiguous mappings
    • Transcript-level
    • cDNA reference

Kallisto, Salmon

  • Ultra-fast & alignment-free
  • Subsampling & quantification confidence
  • Transcript-level estimates improves gene-level estimates
  • Kallisto/Salmon > transcript-counts > tximport() > gene-counts

RSEM, Kallisto, Salmon, Cufflinks2

Soneson, Charlotte, et al. "Differential analyses for RNA-seq: transcript-level estimates improve gene-level inferences." F1000Research 4 (2015)
Zhang, Chi, et al. "Evaluation and comparison of computational tools for RNA-seq isoform quantification." BMC genomics 18.1 (2017): 583

34/50

Quantification QC

ENSG00000000003    140   242   188   143   287   344   438   280   253
ENSG00000000005    0     0     0     0     0     0     0     0     0
ENSG00000000419    69    98    77    55    52    94    116   79    69
ENSG00000000457    56    75    104   79    157   205   183   178   153
ENSG00000000460    33    27    23    19    27    42    69    44    40
ENSG00000000938    7     38    13    17    35    76    53    37    24
ENSG00000000971    545   878   694   636   647   216   492   798   323
ENSG00000001036    79    154   74    80    128   167   220   147   72

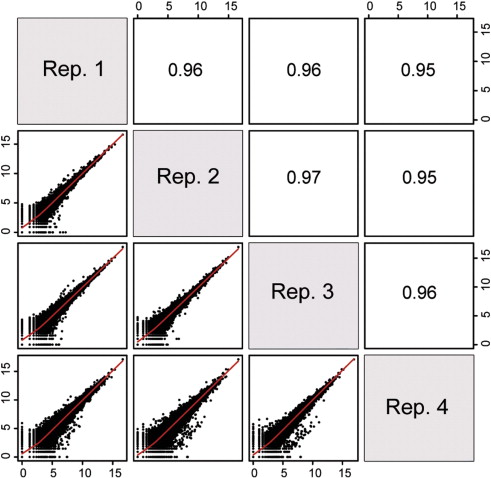

  • Pairwise correlation between samples must be high (>0.9)

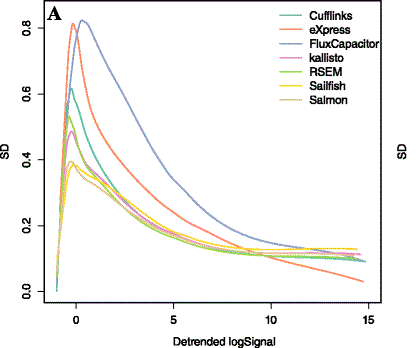

  • Count QC using RNASeqComp

RNASeqComp

Teng, Mingxiang, et al. "A benchmark for RNA-seq quantification pipelines." Genome biology 17.1 (2016): 74

35/50

MultiQC

36/50

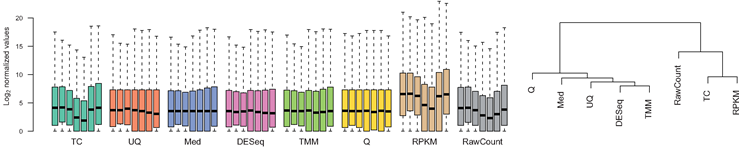

Normalisation

  • Control for Sequencing depth & compositional bias
  • Median of Ratios (DESeq2) and TMM (edgeR) perform the best

  • For DGE using DGE packages, use raw counts
  • For clustering, heatmaps etc use VST, VOOM or RLOG
  • For own analysis, plots etc, use TPM
  • Other solutions: spike-ins/house-keeping genes

Dillies, Marie-Agnes, et al. "A comprehensive evaluation of normalization methods for Illumina high-throughput RNA sequencing data analysis." Briefings in bioinformatics 14.6 (2013): 671-683
Evans, Ciaran, Johanna Hardin, and Daniel M. Stoebel. "Selecting between-sample RNA-Seq normalization methods from the perspective of their assumptions." Briefings in bioinformatics (2017)
Wagner, Gunter P., Koryu Kin, and Vincent J. Lynch. "Measurement of mRNA abundance using RNA-seq data: RPKM measure is inconsistent among samples." Theory in biosciences 131.4 (2012): 281-285

37/50

Exploratory • Heatmap

  • Remove lowly expressed genes
  • Transform raw counts to VST, VOOM, RLOG, TPM etc

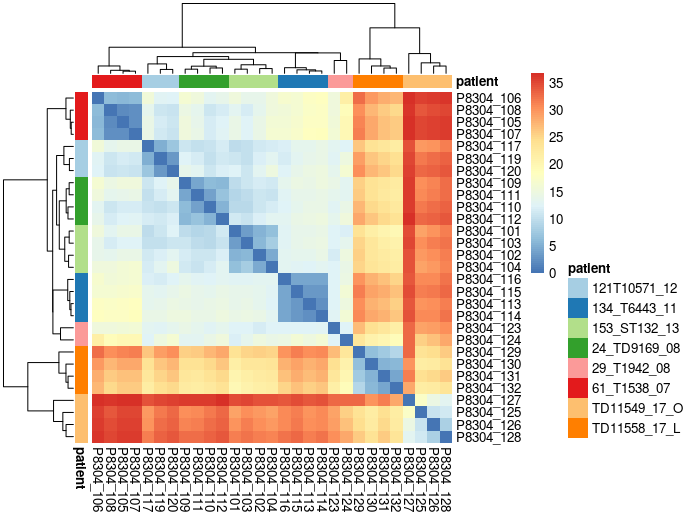

  • Sample-sample clustering heatmap

pheatmap()

38/50

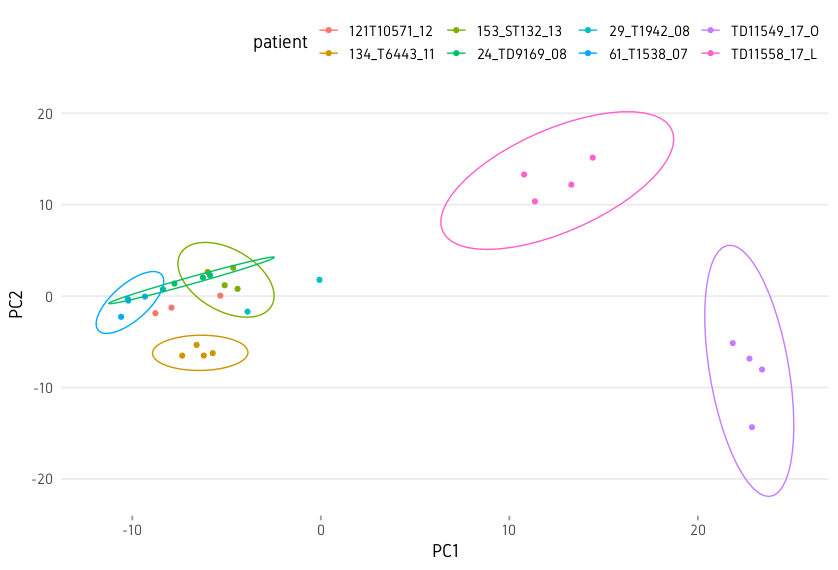

Exploratory • PCA

39/50

Batch correction

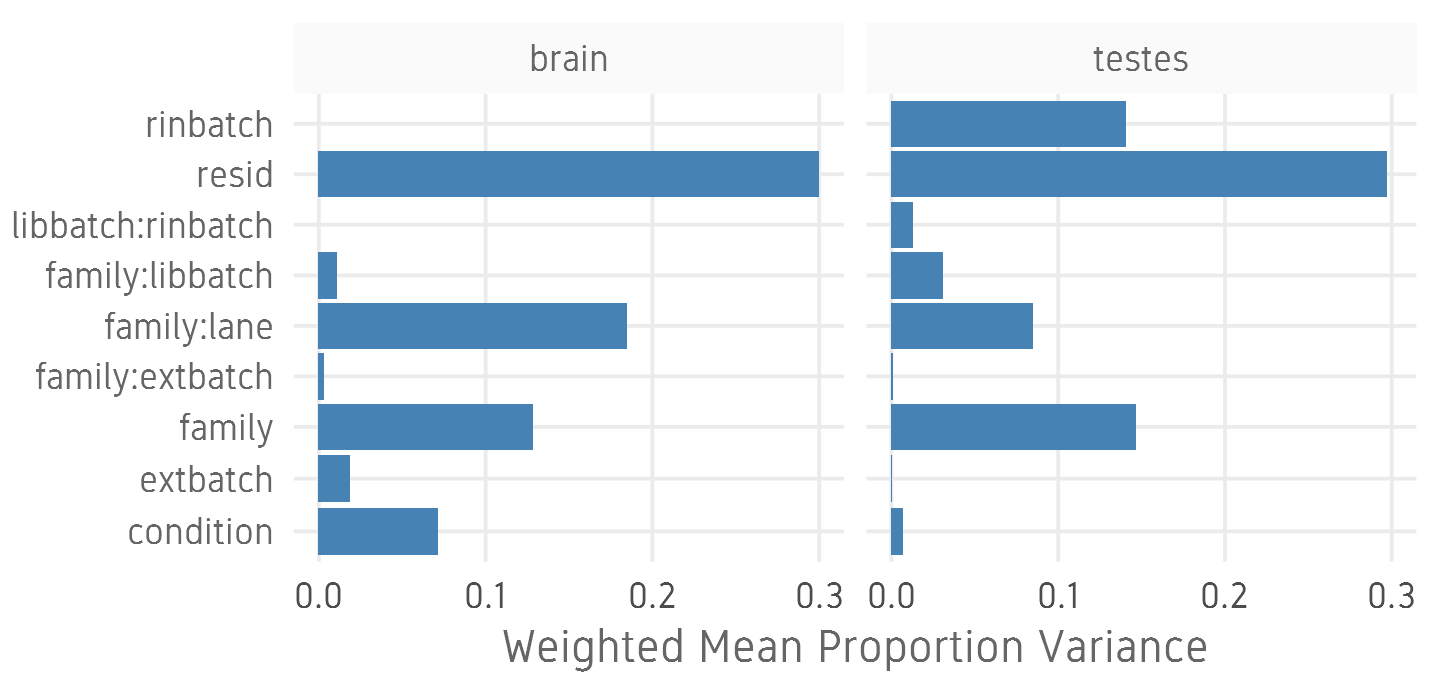

  • Estimate variation explained by variables (PVCA)

  • Find confounding effects as surrogate variables (SVA)
  • Model known batches in the LM/GLM model
  • Correct known batches (ComBat)(Harsh!)
  • Interactively evaluate batch effects and correction (BatchQC)

SVA, PVCA, BatchQC

Liu, Qian, and Marianthi Markatou. "Evaluation of methods in removing batch effects on RNA-seq data." Infectious Diseases and Translational Medicine 2.1 (2016): 3-9
Manimaran, Solaiappan, et al. "BatchQC: interactive software for evaluating sample and batch effects in genomic data." Bioinformatics 32.24 (2016): 3836-3838

40/50

DGE

41/50

DGE

  • DESeq2, edgeR (Neg-binom > GLM > Test), Limma-Voom (Neg-binom > Voom-transform > LM > Test)
  • DESeq2 ~age+condition
    • Estimate size factors estimateSizeFactors()
    • Estimate gene-wise dispersion estimateDispersions()

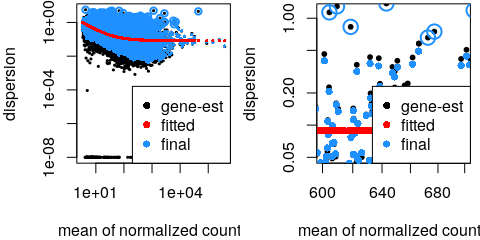

    • Fit curve to gene-wise dispersion estimates
    • Shrink gene-wise dispersion estimates
    • GLM fit for each gene
    • Wald test nbinomWaldTest()

DESeq2, edgeR, Limma-Voom

Seyednasrollah, Fatemeh, et al. "Comparison of software packages for detecting differential expression in RNA-seq studies." Briefings in bioinformatics 16.1 (2013): 59-70

42/50

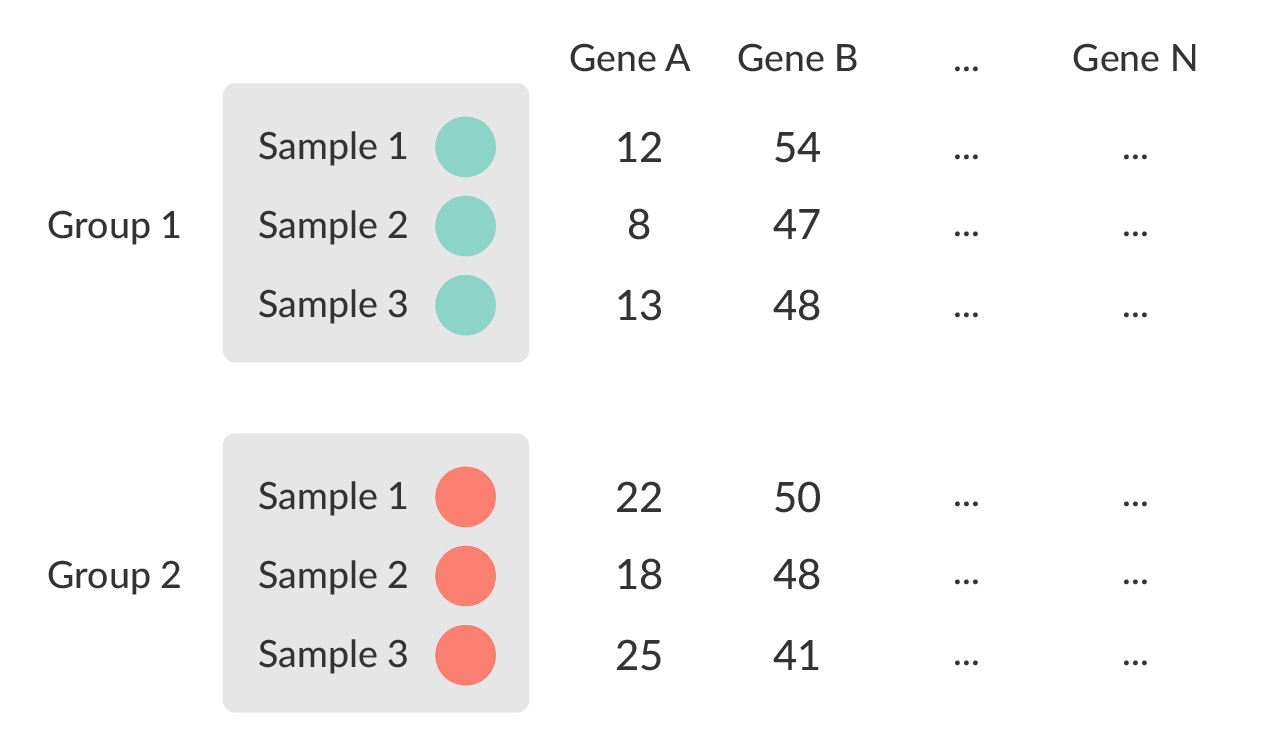

DGE

  • Results results()
log2 fold change (MLE): type type2 vs control
Wald test p-value: type type2 vs control
DataFrame with 1 row and 6 columns
                        baseMean     log2FoldChange             lfcSE
                       <numeric>          <numeric>         <numeric>
ENSG00000000003 242.307796723287 -0.932926089608546 0.114285150312285
                             stat               pvalue                 padj
                        <numeric>            <numeric>            <numeric>
ENSG00000000003 -8.16314356729037 3.26416150242775e-16 1.36240609998527e-14
  • Summary summary()
out of 17889 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 4526, 25%
LFC < 0 (down)     : 5062, 28%
outliers [1]       : 25, 0.14%
low counts [2]     : 0, 0%
(mean count < 3)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results
43/50

DGE

  • MA plot plotMA()

  • Volcano plot

  • Normalised counts plotCounts()

44/50

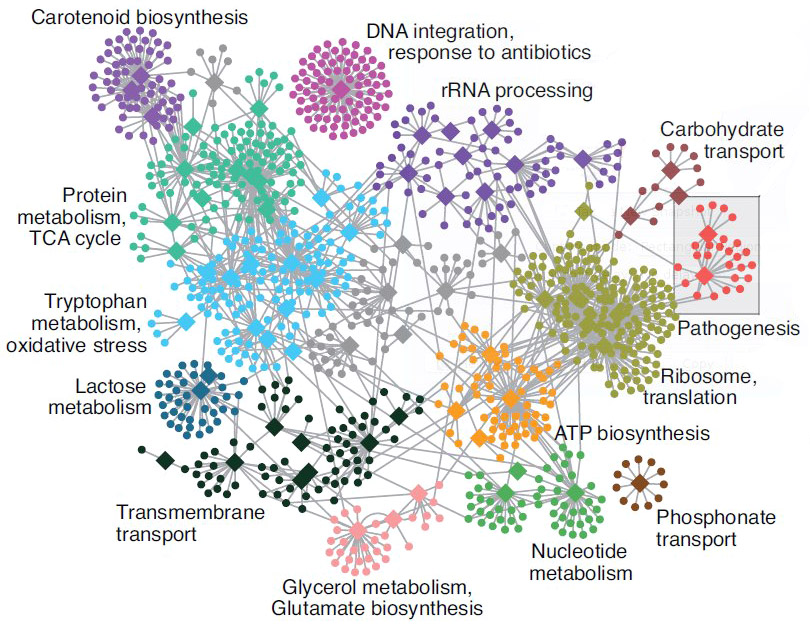

Functional analysis • GO

  • Gene set analysis (GSA)
  • Gene set enrichment analysis (GSEA)
  • Gene ontology / Reactome databases

45/50

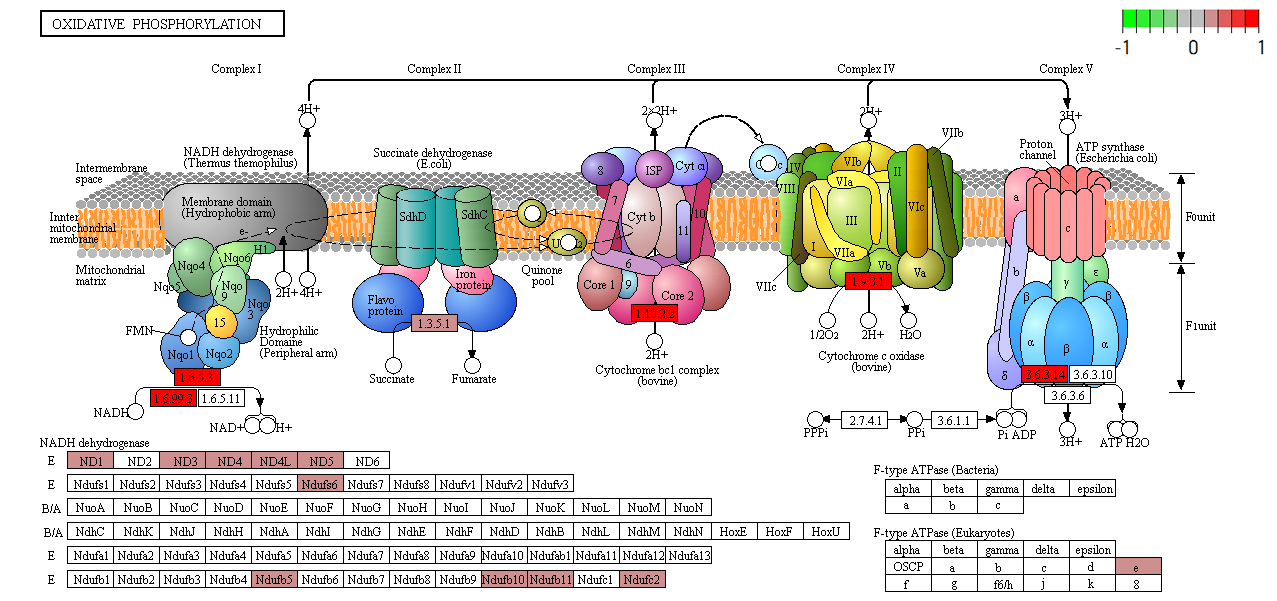

Functional analysis • Kegg

  • Pathway analysis (Kegg)

DAVID, clusterProfiler, ClueGO, ErmineJ, pathview

46/50

Summary

  • Sound experimental design to avoid confounding
  • Plan carefully about lib prep, sequencing etc based on experimental objective
  • Biological replicates may be more important than paired-end reads or long reads
  • Discard low quality bases, reads, genes and samples
  • Verify that tools and methods align with data assumptions
  • Experiment with multiple pipelines and tools
  • QC! QC everything at every step

Conesa, Ana, et al. "A survey of best practices for RNA-seq data analysis." Genome biology 17.1 (2016): 13

47/50

Further learning

48/50

Thank you. Questions?

R version 4.0.5 (2021-03-31)

Platform: x86_64-pc-linux-gnu (64-bit)

OS: Ubuntu 18.04.5 LTS


Built on : 25-May-2021 at 13:35:25

2021 • SciLifeLab • NBIS

48/50

Hands-On tutorial

Main exercise

  • 01 Check the quality of the raw reads with FastQC
  • 02 Map the reads to the reference genome using HISAT2
  • 03 Assess the post-alignment quality using QualiMap
  • 04 Count the reads overlapping with genes using featureCounts
  • 05 Find DE genes using DESeq2 in R

Bonus exercises

  • 01 Functional annotation of DE genes using GO/Reactome/Kegg databases
  • 02 RNA-Seq figures and plots using R
  • 03 Visualisation of RNA-seq BAM files using IGV genome browser

Data: /sw/courses/ngsintro/rnaseq/
Work: /proj/gXXXXXXX/nobackup/<user>/rnaseq/

49/50

Hands-On tutorial

  • Course data directory

/sw/courses/ngsintro/rnaseq/

rnaseq/
+-- bonus/
|   +-- assembly/
|   +-- exon/
|   +-- funannot/
|   +-- plots/
+-- documents/
+-- main/
    +-- 1_raw/
    +-- 2_fastqc/
    +-- 3_mapping/
    +-- 4_qualimap/
    +-- 5_dge/
    +-- 6_multiqc/
    +-- reference/
    |   +-- mouse_chr19_hisat2/
    +-- scripts/
  • Your work directory

/proj/gXXXX/nobackup/<user>/

[user]/
rnaseq/
  +-- 1_raw/
  +-- 2_fastqc/
  +-- 3_mapping/
  +-- 4_qualimap/
  +-- 5_dge/
  +-- 6_multiqc/
  +-- reference/
  |   +-- mouse_chr19_hisat2/
  +-- scripts/
  +-- funannot/
  +-- plots/
50/50

Contents

2/50
Paused

Help

Keyboard shortcuts

↑, ←, Pg Up, k Go to previous slide
↓, →, Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
Number + Return Go to specific slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
