ATAC-seq Data Processing and Quality Control

NBIS Workshop

Published

09-Oct-2026


1 Learning outcomes

  • apply standard processing methods used in functional genomics on ATAC-seq data;

  • apply quality control methods agnostic to signal structure, which are used in functional genomics, on an example of ATAC-seq data;

  • assess quality of the ATAC-seq libraries with a range of quality metrics;

  • become accustomed to work in interactive HPC environment (Pelle / Uppmax cluster);

  • work interactively with ATAC-seq signal using Integrative Genome Viewer (IGV);



NoteNote on this workflow

This workflow is developed using ATAC-seq data. Many of the principles of data filtering and quality control apply to other functional genomics data sets.

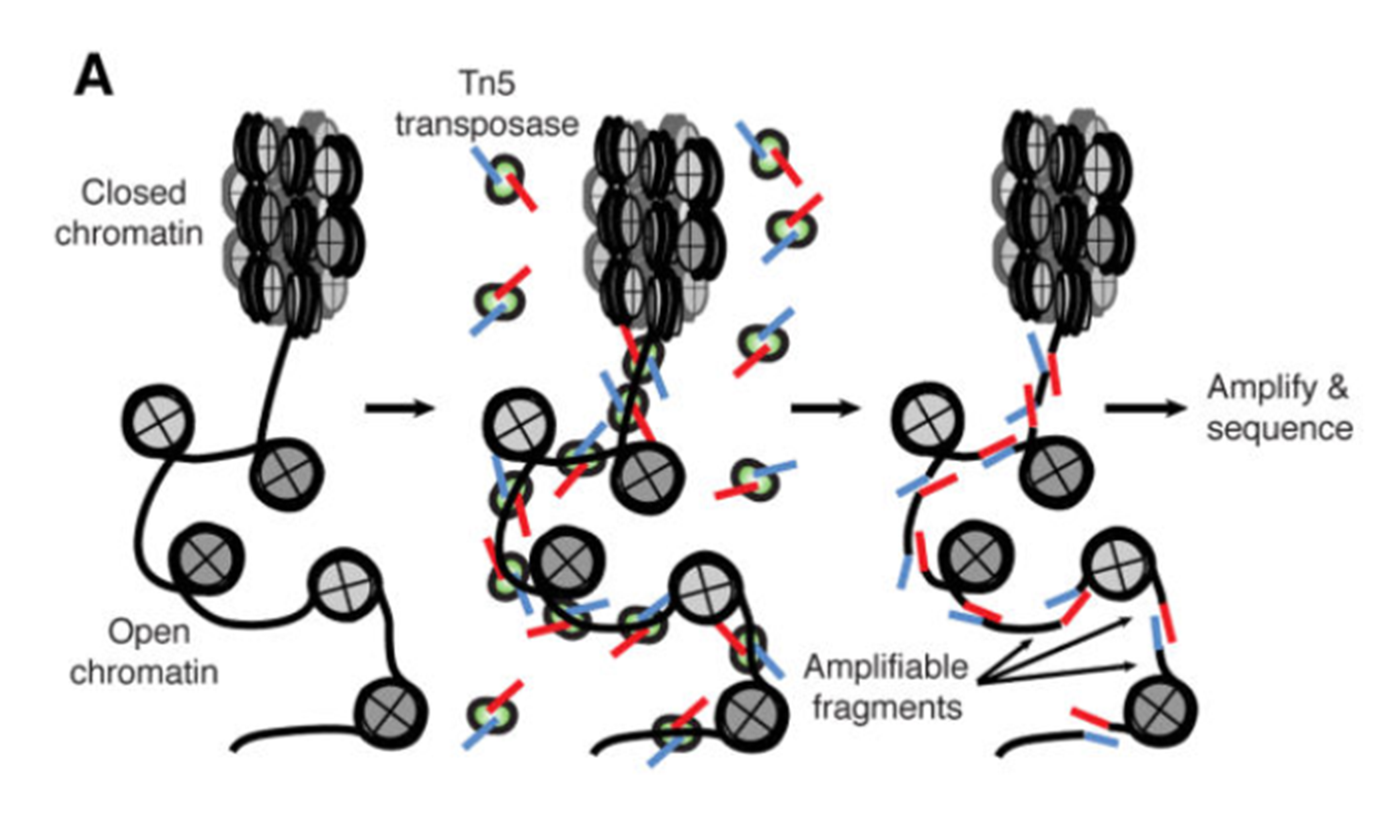

Overview of ATAC-seq (Buenrostro et al. 2015)

Overview of ATAC-seq (Buenrostro et al. 2015)

2 Introduction



flowchart LR
  subgraph QC
    D(Quality Control, Feature Agnostic)
  end
  subgraph Processing
    B([Data Processing])
  end

  A[Data] --> B([Data Processing])
  B([Data Processing]) --> C(Feature Detection)
  B([Data Processing]) --> D(Quality Control, Feature Agnostic)
  C(Feature Detection) --> E(Feature Annotation)
  C(Feature Detection) --> F(Statistical Analysis)
  C(Feature Detection) --> G(Visualisation)
  B([Data Processing]) --> G(Visualisation)
  E(Feature Annotation) --> I{Analysed}
  F(Statistical Analysis) --> I{Analysed}
  D(Quality Control, Feature Agnostic) --> H(Quality Control, Feature Focused)
  C(Feature Detection) --> H(Quality Control, Feature Focused)
  G(Visualisation) --> I{Analysed}
  H(Quality Control, Feature Focused) --> I{Analysed}

  style A fill:#8FB4F7,stroke:#2768F5
  style I fill:#DF8FF7,stroke:#C11DF2
  style QC fill:#A0C49D,stroke:#648C61
  style Processing fill:#A4D6E0,stroke:#6A898F
(a)
flowchart TD
  subgraph Processing
    B(Remove low quality Alignments)
    C(Mark duplicate alignments)
    D(Remove blacklist regions)
  end
  subgraph QC
    E(Collect metrics: mapping, filtering)
    F(Replicate concordance)
    G(ATAC-seq specific metrics)
  end

  A[Aligned Reads] --> B(Remove low quality alignments)
  B(Remove low quality Alignments) --> C(Mark duplicate alignments)
  C(Mark duplicate alignments) --> D(Remove blacklist regions)
  D(Remove blacklist regions) --> E(Collect metrics: mapping, filtering)
  A[Aligned Reads] --> E(Collect metrics: mapping, filtering)
  E(Collect metrics: mapping, filtering) --> F(Replicate concordance)
  F(Replicate concordance) --> G(ATAC-seq specific metrics)
  D(Remove blacklist regions) --> I{Processed Data}
  G(ATAC-seq specific metrics) --> I{Processed Data}

  style A fill:#8FB4F7,stroke:#2768F5
  style I fill:#DF8FF7,stroke:#C11DF2
  style QC fill:#A0C49D,stroke:#648C61
  style Processing fill:#A4D6E0,stroke:#6A898F
(b)
Figure 1: ATAC-seq data analysis workflow, assuming the starting point are reads aligned to reference genome. Highlighted in turquoise and green are topics of this tutorial.




The aim of this part of the data analysis workflow is to remove alignments which most likely are artifacts and could interfere with data analysis (upper-left part of the concept map). These include:

  • alignments to organelles (mitchondria);

  • alignments within “blacklisted regions”: regions of unusually high signal in many functional genomics experiments, described in (Amemiya et al. 2019);

  • low quality alignments;

We will also mark (not remove):

  • duplicate alignments (i.e. both mates of a pair map to identical genomic locations).

We assume that starting point are reads mapped to a reference sequence (GRCm39).



3 Before we start

Today we are going to work on Pelle, an HPC cluster hosted by Uppmax.


Please follow the setup procedure to book a node and log in to it. The following gives you access to part of a node prebooked for this workshop for 3 hours (until lunch).

ssh -Y <USERNAME>@pelle.uppmax.uu.se

interactive -A uppmax2026-1-197 -t 3:00:00 -c 5



4 Data

We will work with ATAC-seq data in this tutorial, however the same principles apply to other functional genomics data types.

We will use data that come from publication Batf-mediated epigenetic control of effector CD8+ T cell differentiation (Tsao et al. 2022). These are ATAC-seq libraries (in duplicates) prepared to analyse chromatin accessibility status in murine CD8+ T lymphocytes prior to and upon Batf knockout.

The response of naive CD8+ T cells to their cognate antigen involves rapid and broad changes to gene expression that are coupled with extensive chromatin remodeling. Basic leucine zipper ATF-like transcription factor Batf is essential for the early phases of the process.

We will use data from the in vivo experiment described in the paper.

SRA sample accession numbers are listed in Table 1.

Table 1. Samples used in this tutorial.
No Accession Sample Name Description
1 SRR17296554 B1_WT_Batf-floxed_Cre_P14 WT Batf
2 SRR17296555 B2_WT_Batf-floxed_Cre_P14 WT Batf
3 SRR17296556 A1_Batf_cKO_P14 KO Batf
4 SRR17296557 A2_Batf_cKO_P14 KO Batf


We have processed the data, starting from raw reads. The reads were aligned to GRCm39 reference assembly using bowtie2 and subset to include alignments to chromosome 1 and 1% of reads mapped to chromosomes 2 to 5 and MT.

This allows you to see a realistic coverage of one selected chromosome and collect QC metrics while allowing shorter computing times.


4.1 Setting up directory structure and files

Normally you process several files from your data set using the same workflow. We are going to process just one file, as an example. In addition to the file with unprocessed alignments which will be our starting point, we will need annotation files. Files produced in this part will be used in downstream tutorials, therefore saving files in a structured manner is essential to keep track of the analysis steps (and always a good practice). We have preset data access and environment for you. To use these settings run:

  • atac_data.sh that sets up directory structure and creates symbolic links to data as well as copies smaller files [RUN ONLY ONCE]


Copy the script to your home directory and execute it:

cp /proj/epi2026/ATAC/atacseq_proc/atacseq_data.sh .

bash atacseq_data.sh


You should see a newly created directory named atacseq. Everything you need for completing the ATAC-seq tutorials is located there. When you enter atacseq you’ll see several other directories. results contains precomputed results of (most of) the steps, so you can continue in case something goes wrong along the way. You can enter analysis; this is where we’ll be working today.


cd atacseq

ls .
cd analysis



5 Read Mapping Statistics

As stated above, we use data which has already been mapped to a reference. To start with, we can inspect the statistics of these unprocessed data. We will be working in directory processedData:


mkdir processedData
cd processedData

module load SAMtools/1.19.2-GCC-13.3.0

samtools idxstats ../../data/SRR17296554.mapped.bowtie2.chr1.bam  >SRR17296554.idxstats
samtools stats ../../data/SRR17296554.mapped.bowtie2.chr1.bam  >SRR17296554.stats

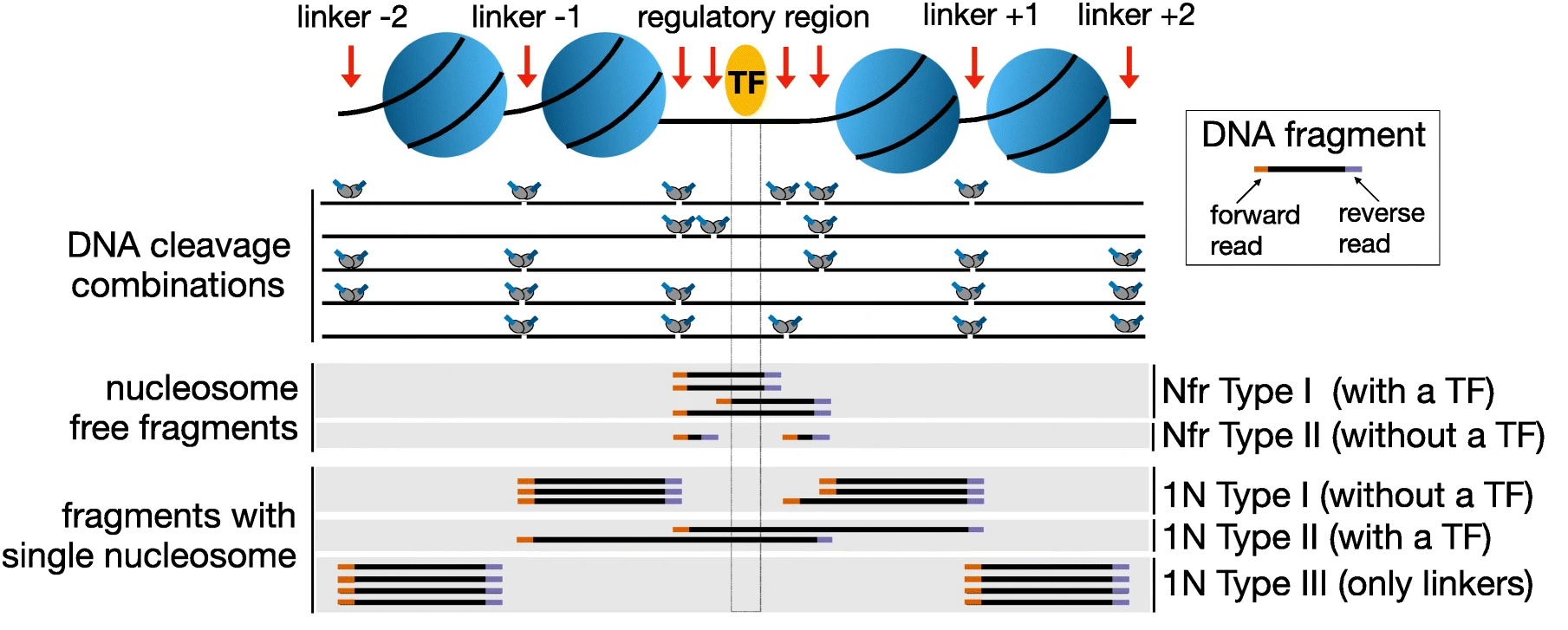

One of the characteristics of the ATAC-seq signal is the presence of reads mapped to organelles. These reads may constitute even 40% of the library, depending on the library preparation method. MT contents be used to flag failed libraries early on.

We can inspect the Mt contents of our data::


#total fragments
awk '{sum += $3} END {print sum}' SRR17296554.idxstats
11335599

#chrM fragments
awk '$1 ~ /MT/ {print $3}' SRR17296554.idxstats
75245


MT/total ratio in this file is 0.007 (thanks to data subsetting). The fraction of MT reads in the nonsubset file was 0.053, a value to be expected if using the Omni ATAC library prep (Corces et al. 2017). Older protocols result in much higher values.



We can inspect the read mapping statistics in SRR17296554.stats:


grep ^SN SRR17296554.stats | cut -f 2-

  raw total sequences:  11399457  # excluding supplementary and secondary reads
  filtered sequences: 0
  sequences:  11399457
  is sorted:  1
  1st fragments:  5694081
  last fragments: 5705376
  reads mapped: 11335599
  reads mapped and paired:  11271741  # paired-end technology bit set + both mates mapped
  reads unmapped: 63858
  reads properly paired:  11230312  # proper-pair bit set
  reads paired: 11399457  # paired-end technology bit set
  reads duplicated: 0 # PCR or optical duplicate bit set
  reads MQ0:  5945  # mapped and MQ=0
  reads QC failed:  0
  non-primary alignments: 0
  supplementary alignments: 0
  total length: 420662620 # ignores clipping
  total first fragment length:  210119227 # ignores clipping
  total last fragment length: 210543393 # ignores clipping
  bases mapped: 418303160 # ignores clipping
  bases mapped (cigar): 417695422 # more accurate
  bases trimmed:  0
  bases duplicated: 0
  mismatches: 822766  # from NM fields
  error rate: 1.969775e-03  # mismatches / bases mapped (cigar)
  average length: 37
  average first fragment length:  37
  average last fragment length: 37
  maximum length: 37
  maximum first fragment length:  37
  maximum last fragment length: 37
  average quality:  34.1
  insert size average:  220.2
  insert size standard deviation: 134.6
  inward oriented pairs:  5597226
  outward oriented pairs: 19488
  pairs with other orientation: 1094
  pairs on different chromosomes: 18062
  percentage of properly paired reads (%):  98.5



6 Processing alignments


We start by removing alignments within problematic genomic regions.

We use mm38 specific blacklist from ENCODE, accession ENCFF999QPV, which was litover to GRCm39 using UCSC liftOver web tool.

We will perform this as a “complement” operation, i.e. we will retain alignments which overlap the non-blacklisted regions (complementBed from bedtools).

Before we can do this we need to prepare the genomic regions:


module load BEDTools/2.31.1-GCC-13.3.0

sortBed -i  ../../annot/ENCFF999QPV.mm39_ens.bed  | complementBed -i stdin -g ../../annot/GRCm39.sizes > mm39.noblcklst.bed


While we are at it, we can also remove the MT contig from the non-blacklist regions:


awk '$1 != "MT" { print $0 }' mm39.noblcklst.bed > mm39.noblcklst_MT.bed


We can now remove the alignments in problematic reagions (blacklists and MT). Please note the bam file should be sorted and indexed first (required by samtools view), which we have done beforehand.


We retain alignments not within the blacklisted regions, which also are properly paired and of minimum MAPQ 5 (-f 0x2 -q 5):


samtools view -f 0x2 -q 5 -M -L mm39.noblcklst_MT.bed -hbo SRR17296554.blstMT_filt.bam ../../data/SRR17296554.mapped.bowtie2.chr1.bam

samtools index SRR17296554.blstMT_filt.bam


How many alignments are retained?


samtools idxstats SRR17296554.blstMT_filt.bam >SRR17296554.blstMT_filt.idxstats

awk '{sum += $3} END {print sum}' SRR17296554.blstMT_filt.idxstats

9440817 alignments are retained after filtering (out of initial 11335599).


Finally, we can mark / remove duplicated alignments. Note: we are not removing the duplicated alignments, just marking them.


module load picard/3.0.0-Java-17

java -Xmx31G -jar $EBROOTPICARD/picard.jar MarkDuplicates -I SRR17296554.blstMT_filt.bam \
   -O SRR17296554.blstMT_filt.dedup.bam -M SRR17296554.dedup_metrics \
   -VALIDATION_STRINGENCY LENIENT -REMOVE_DUPLICATES false -ASSUME_SORTED true

samtools index SRR17296554.blstMT_filt.dedup.bam


Resulting file SRR17296554.blstMT_filt.dedup.bam containes preprocessed alignments we can use in the analysis and visualisations.

We can inspect the duplication status of the library. This is another early QC step we perform, and it informs us of library complexity.


head SRR17296554.dedup_metrics


Key information from SRR17296554.dedup_metrics:


  READ_PAIRS_EXAMINED 4720408
  READ_PAIR_DUPLICATES 1389167
  PERCENT_DUPLICATION 0.29429


  ## METRICS CLASS  picard.sam.DuplicationMetrics

  LIBRARY UNPAIRED_READS_EXAMINED READ_PAIRS_EXAMINED SECONDARY_OR_SUPPLEMENTARY_RDS  UNMAPPED_READS  UNPAIRED_READ_DUPLICATES  READ_PAIR_DUPLICATES  READ_PAIR_OPTICAL_DUPLICATES  PERCENT_DUPLICATION ESTIMATED_LIBRARY_SIZE

  Unknown Library 0 4720408 0 0 0 1389167 0 0.29429 6354197



Good news, acceptable duplication level in this library, we can proceed with further QC and analysis.



7 Peak independent QC for ATAC-seq data



The aim of this part of the data analysis workflow is to perform general signal structure agnostic (i.e. peak - independent) quality control (lower-right part of the concept map). These include:

  • assessment of read coverage along the genome;

  • replicate congruency.

Basic read count statistics were already collected in the previous part.



7.1 Cumulative Enrichment



Cumulative enrichment aka BAM fingerprint, is a way of assessing the quality of signal concentrated predeminantly in a small fraction of a genome (such as peaks detected in ATAC-seq and ChIP-seq). It determines how well the signal in the sample can be differentiated from the background.

Cumulative enrichment is obtained by sampling indexed BAM files and plotting a profile of cumulative read coverages for each sample. All reads overlapping a window (bin) of the specified length are counted; these counts are sorted and the cumulative sum is plotted.

To compute cumulative enrichment for processed bam files in our ATAC-seq data set (assuming we are in drectory analysis, so if you have followed the previous tutorial, you should move one directory level up cd ..). Here we use files preprocessed earlier:


mkdir deepTools
cd deepTools

#link necessary files to avoid long paths in commands
ln -s ../../data_proc/* .


We will use deepTools installed as a software container. First, we build a command we want to use from paths to the container and other parameters:

topdir="/proj/epi2026/"
contdir="/proj/epi2026/library/containers"

pFingerprnt="apptainer exec --bind $(pwd) --bind ${topdir} --pwd $(pwd) ${contdir}/deeptools:3.5.6.img plotFingerprint"


We can now execute the command:


$pFingerprnt --bamfiles SRR17296554.filt.chr1.bam SRR17296555.filt.chr1.bam SRR17296556.filt.chr1.bam SRR17296557.filt.chr1.bam \
   --binSize=1000 --plotFile Invivo_proc.fingerprint.pdf \
   --smartLabels -p 5 &> fingerprint.log


You can copy the resulting file to your local system to view it.


To copy files from Pelle (or any remote host) you need to know the path to the file on Pelle (i.e. the remote side). Type in the terminal::

pwd

This gives you the path to the working directory, e.g::

/proj/epi2026/private/agata/atac_tst/atacseq/analysis/deepTools

To copy file Invivo_proc.fingerprint.pdf to current directory, type in the local terminal:

scp <username>@pelle.uppmax.uu.se:/path/to/file .

E.g.:

scp agata@pelle.uppmax.uu.se:/proj/epi2026/private/agata/atac_tst/atacseq/analysis/deepTools/Invivo_proc.fingerprint.pdf .

You will be prompted to input the 2FA code following the password to Uppmax.

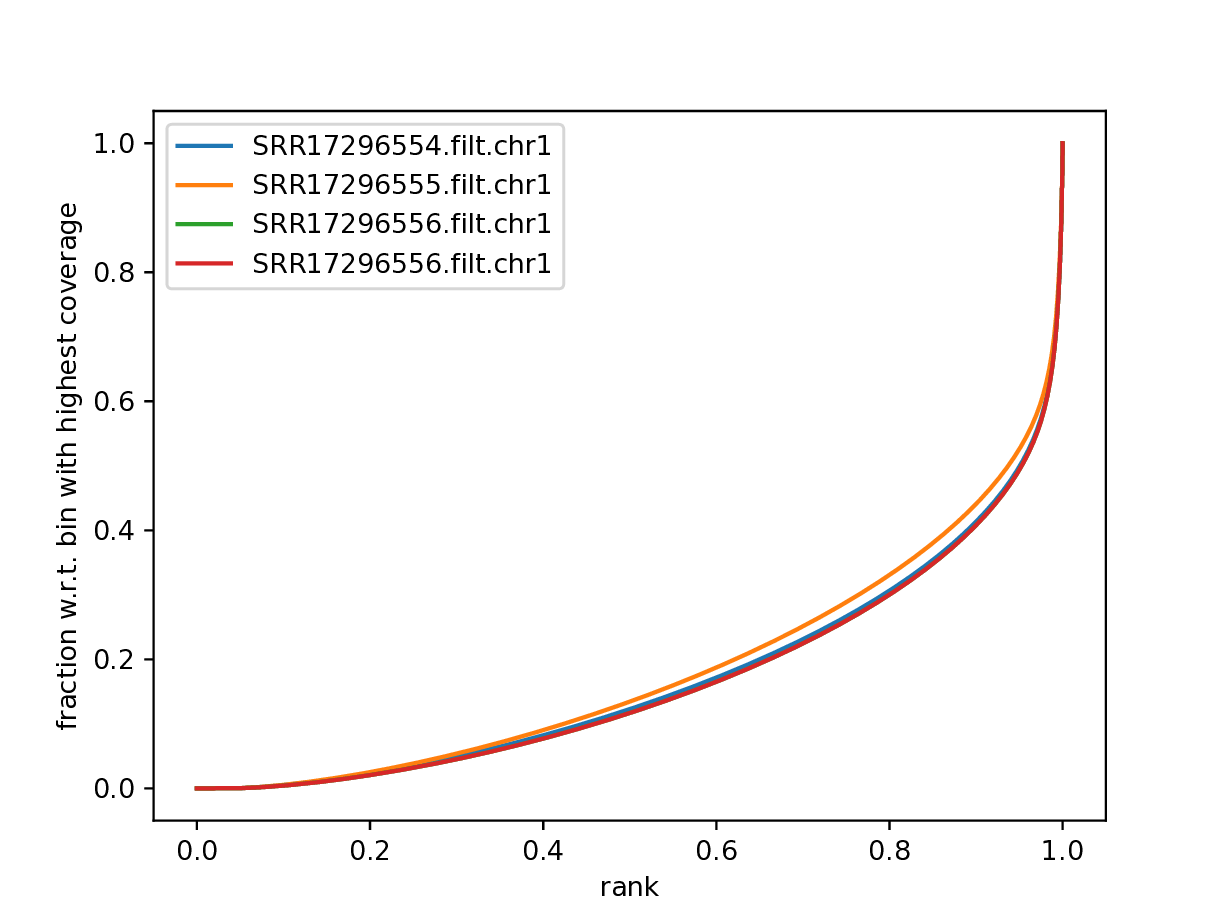

Have a look at Invivo_proc.fingerprint.pdf, read deepTools [What the plots tell you] (https://deeptools.readthedocs.io/en/latest/content/tools/plotFingerprint.html#what-the-plots-tell-you>) and answer

  • does it indicate a good sample quality, i.e. signal present in narrow regions?

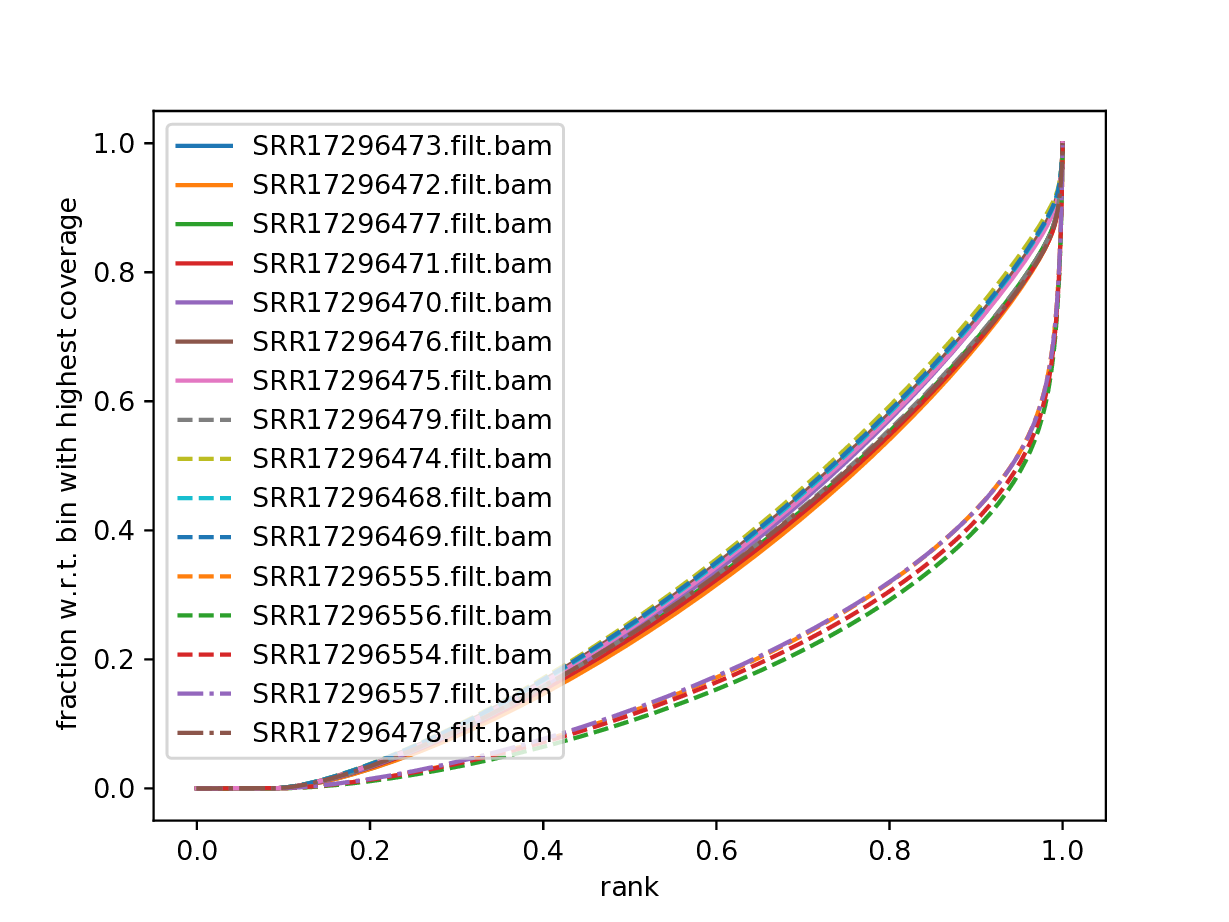

Fingerprint

Fingerprint

Fingerprint

Fingerprint

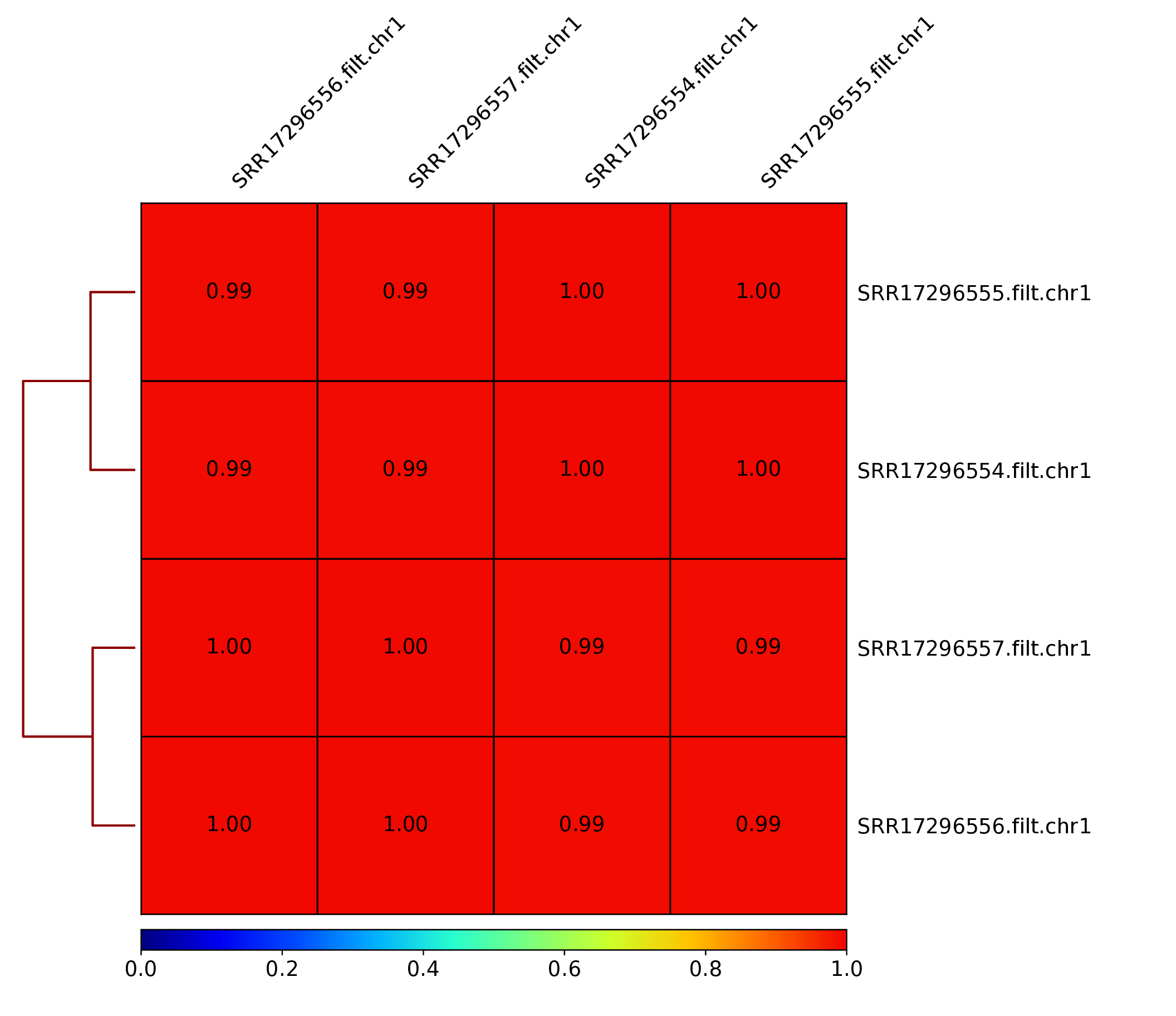

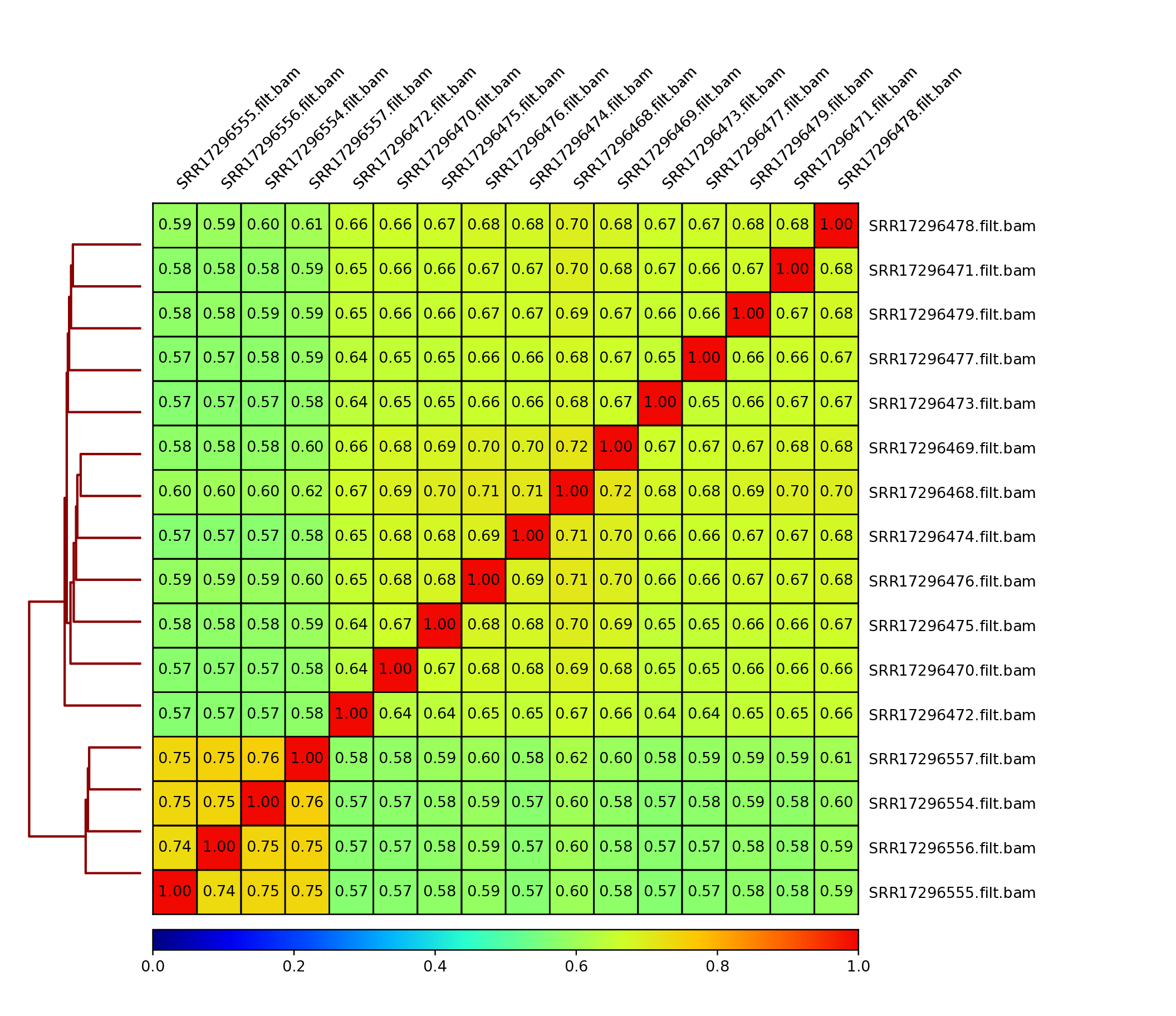

7.2 Replicate Clustering

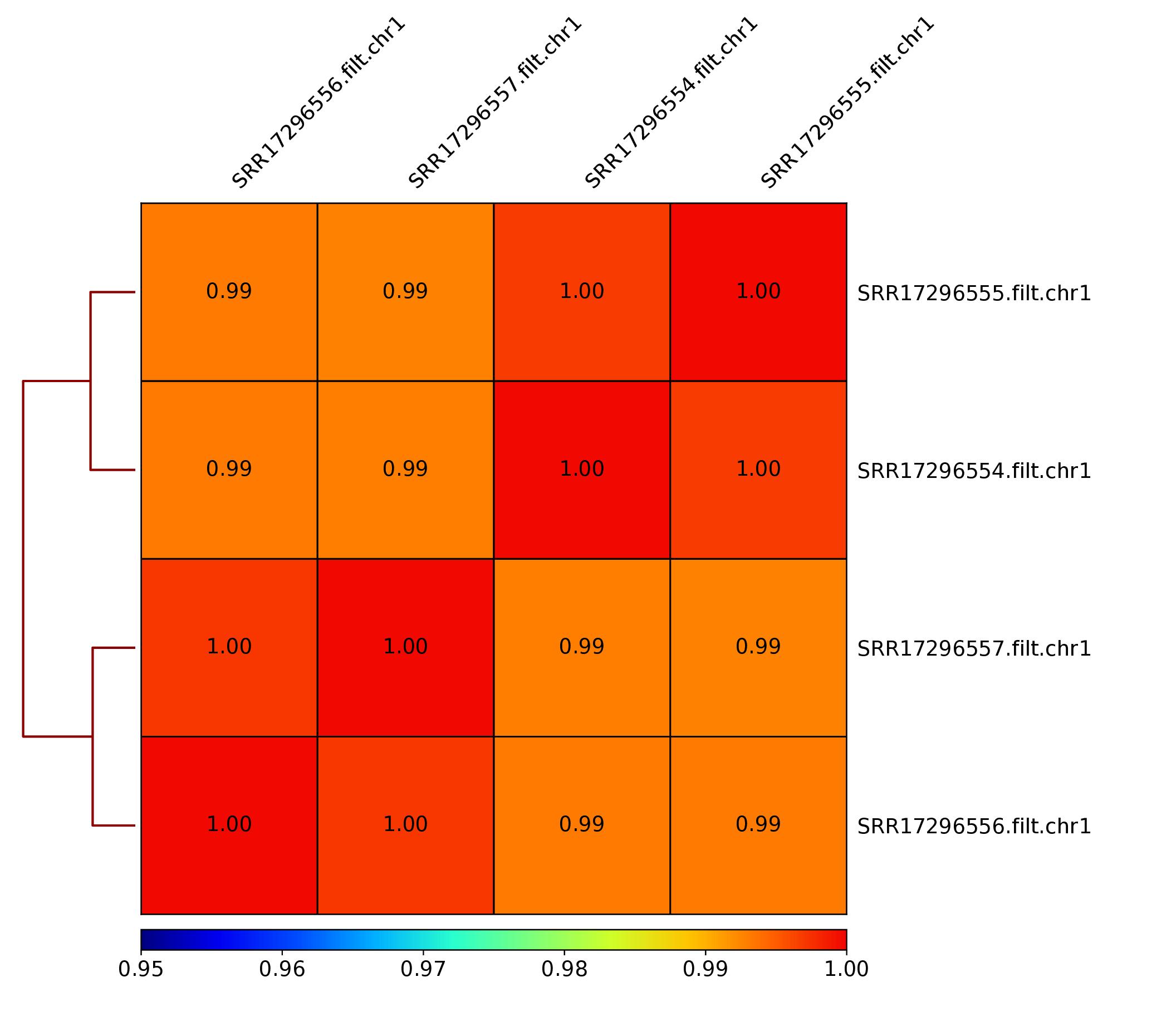

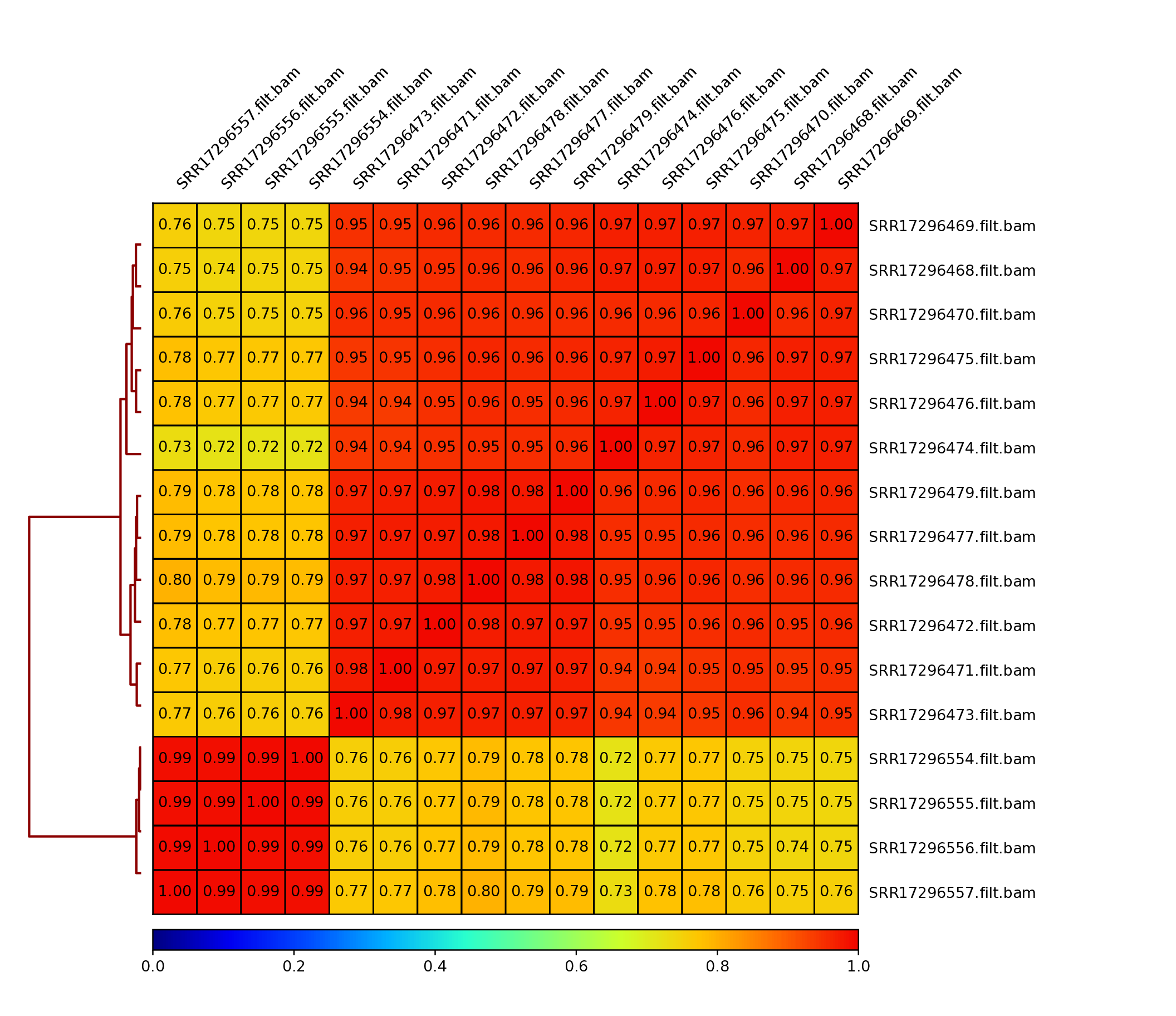

To assess overall similarity between libraries from different samples one can compute sample clustering heatmaps using multiBamSummary and plotCorrelation in bins mode from deepTools.

In this method the genome is divided into bins of specified size (--binSize parameter) and reads mapped to each bin are counted. The resulting signal profiles are used to cluster libraries to identify groups of similar signal profile.

In this part we use bam files prepared before the workshop, to save time.

mBS="apptainer exec --bind $(pwd) --bind ${topdir} --pwd $(pwd) ${contdir}/deeptools:3.5.6.img multiBamSummary"

$mBS bins --bamfiles SRR17296554.filt.chr1.bam SRR17296555.filt.chr1.bam SRR17296556.filt.chr1.bam SRR17296557.filt.chr1.bam \
   --smartLabels \
   --outFileName Invivo_proc.npz --binSize 5000 -p 5 &> multiBamSummary.log

pCor="apptainer exec --bind $(pwd) --bind ${topdir} --pwd $(pwd) ${contdir}/deeptools:3.5.6.img plotCorrelation"

$pCor --corData Invivo_proc.npz \
   --plotFile Invivo_proc_correlation_bin.pdf --outFileCorMatrix Invivo_proc_correlation_bin.txt \
   --whatToPlot heatmap --corMethod pearson --plotNumbers

# to change the correlation range plotted
$pCor --corData Invivo_proc.npz \
   --plotFile Invivo_proc_correlation_bin.pdf --outFileCorMatrix Invivo_proc_correlation_bin.txt \
   --whatToPlot heatmap --corMethod pearson --plotNumbers -min 0.95

You can copy the resulting file to your local system to view it.

What do you think?

  • which samples are similar?

  • are the clustering results as you would have expected them to be?



Pearson correlation, data subset to chr1

Pearson correlation, data subset to chr1

Pearson correlation, data subset to chr1, min 0.95)



Pearson correlation, non-subset data

Pearson correlation, non-subset data

Spearman correlation, non-subset data

Spearman correlation, non-subset data



In addition to these general procedures, several specialised assay - specific quality metrics exist, which probe signal characteristics related to each method. These are key QC metrics to evaluate the experiment and should always be colleced during the QC step.

We can now follow with the ATACseq specifc QC methods.





8 Quality Control for ATAC-seq



The aim of this part of the data analysis workflow is to collect ATAC-seq specific quality metrics:

  • fragment length distribution;

  • presence of signal in nuclesome-free regions (NFR) and mononucleosome fractions;

  • enrichment of signal in transcription start site (TSS) regions.



8.1 Fragment Length Distribution

In ATAC-seq experiments, tagmentation of Tn5 transposases produces signature size pattern of fragments derived from nucleosome-free regions (NFR), mononucleosome, dinucleosome, trinucleosome and longer oligonucleosome from open chromatin regions (Figure 2, adapted from (Li et al. 2019).

Please note the pre-processed BAM files need to be used to get an unbiased distribution of insert fragment size in the ATAC-seq library.



Figure 2: Library fragments in the ATAC-seq data.


To compute fragment length distribution for processed bam file in our ATAC-seq data set (assuming we are in drectory analysis):


mkdir QC
cd QC

ln -s ../processedData/SRR17296554.blstMT_filt.dedup.bam  .
ln -s ../processedData/SRR17296554.blstMT_filt.dedup.bam.bai  .

module load picard/3.0.0-Java-17

java -Xmx31G -jar $EBROOTPICARD/picard.jar CollectInsertSizeMetrics \
  -I SRR17296554.blstMT_filt.dedup.bam \
  -O SRR17296554.chr1.proc.fraglen.stats \
  -H SRR17296554.chr1.proc.fraglen.pdf -M 0.5


You can copy the resulting file to your local system to view it.

Have a look at SRR17296554.chr1.proc.fraglen.pdf (Figure 3), and answer

  • does it indicate a good sample quality? is the chromatin structure preserved?

  • what do the periodic peaks correspond to?

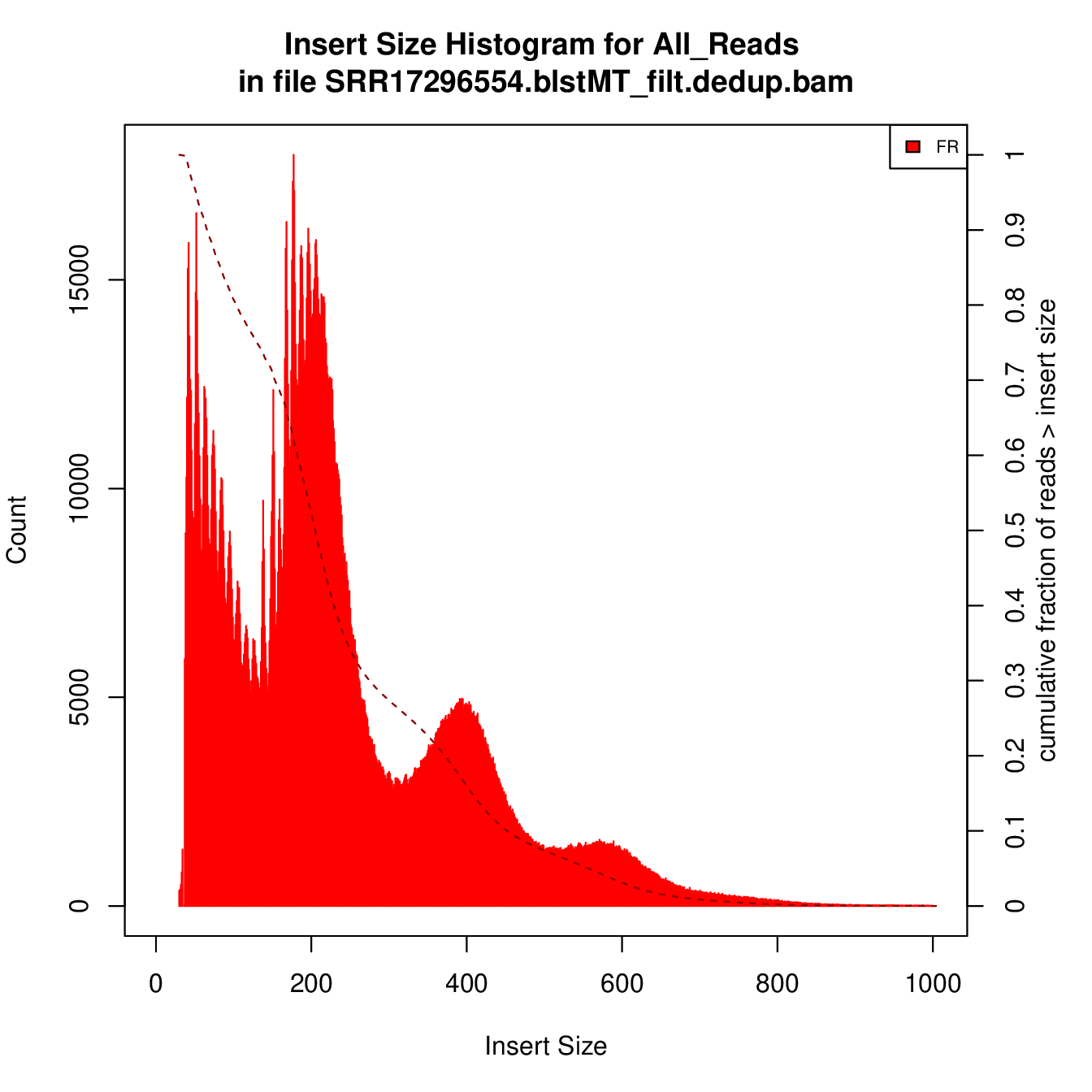

Fragment length histogram in SRR17296554
Figure 3: Fragment length histogram of ATAC-seq signal in sample SRR17296554.





Generating this key QC plot is only possible for PE libraries. Can you tell what the peaks at approximately 50bp, 200bp, 400bp and 600bp correspond to?


To give some context compare to plots on Figure 4.

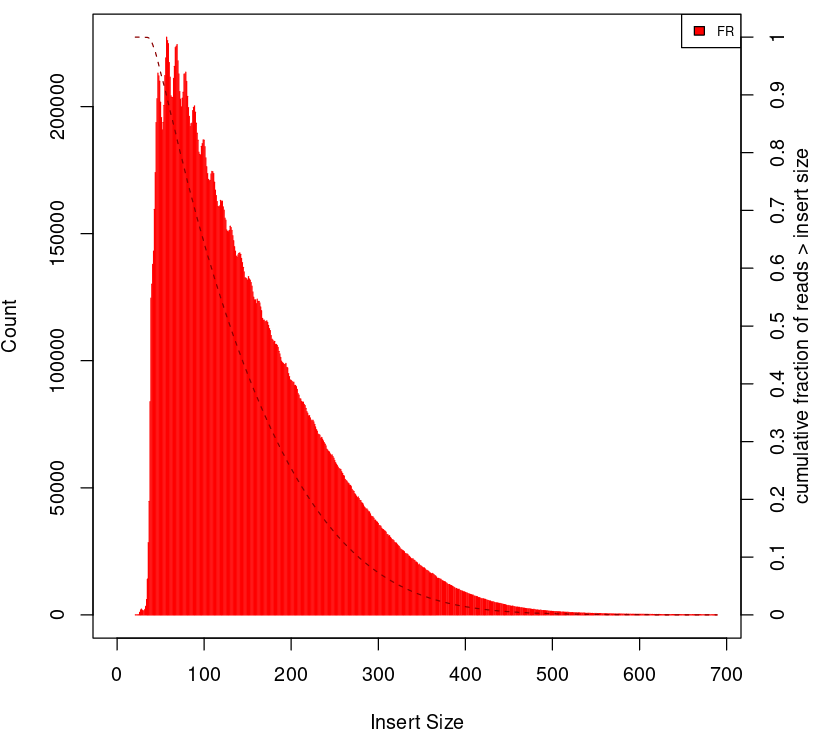

Naked DNA

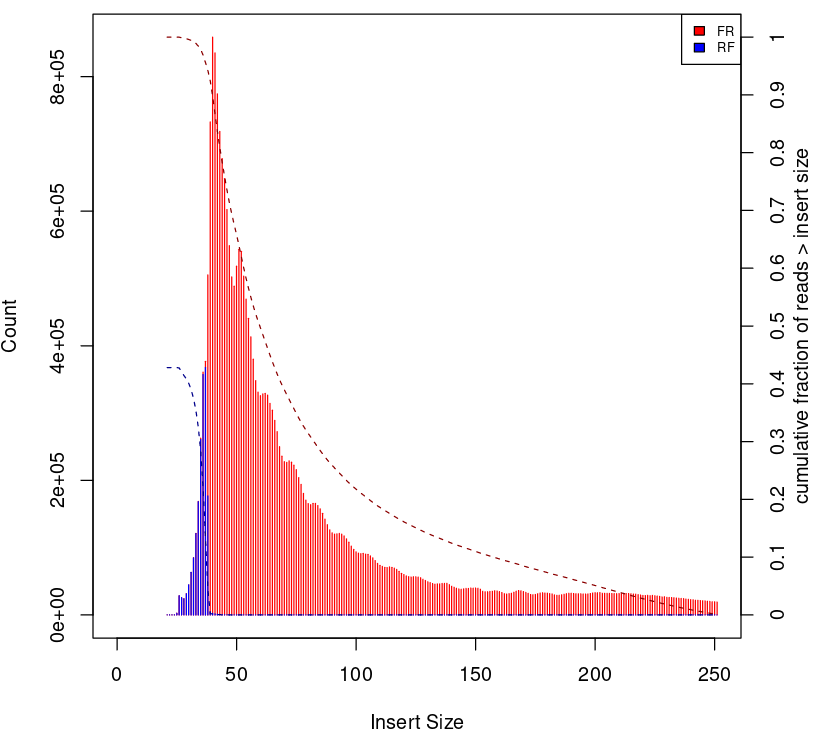

Failed ATAC-seq

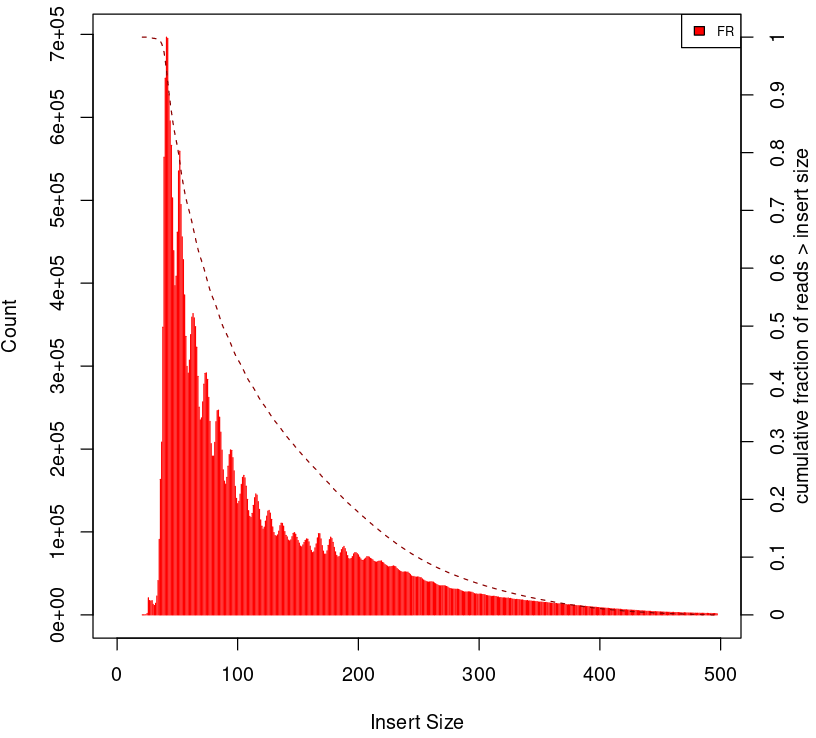

Noisy ATAC-seq

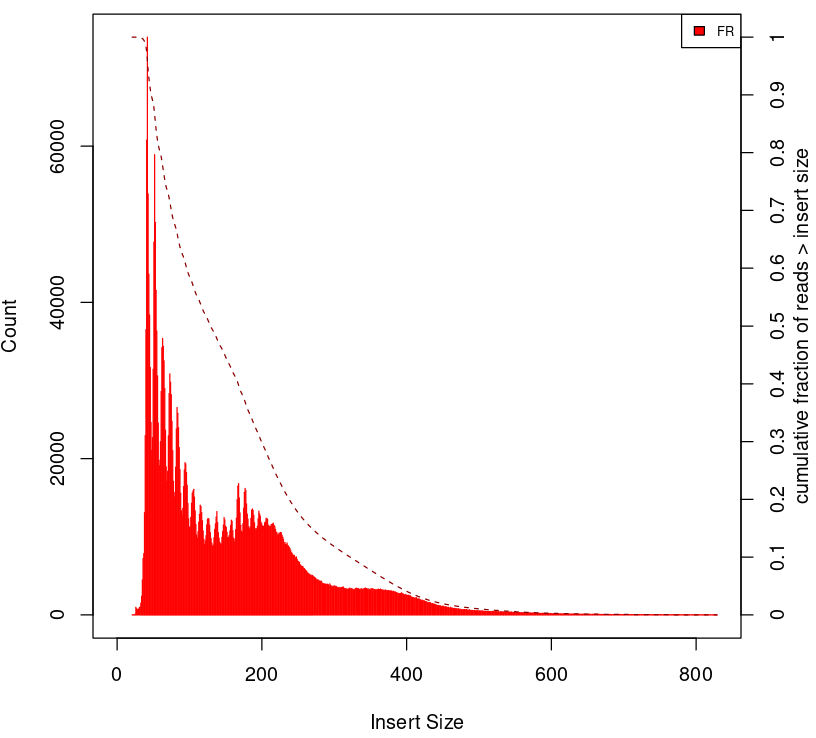

Successful ATAC-seq
Figure 4: Examples of insert size distribution for ATAC-seq experiments.



9 Assessing Signal at Transcription Start Sites


9.1 Data Preparation for Probing Signal at Transcription Start Sites (TSS)

We will be working in R in this section. First, we load the required version together with libraries:



module load R/4.6.1-gfbf-2026.1
module load R-bundle-CRAN/2026.07-foss-2026.1
module load R-bundle-Bioconductor/3.23-foss-2026.1-R-4.6.1

R


We can now update paths to library with R packages load necessary R libraries:


.libPaths(c(.libPaths(),"/proj/epi2026/library/Rpackages/4.6.1"))


library(ATACseqQC)
library(BSgenome.Mmusculus.UCSC.mm39)
library(TxDb.Mmusculus.UCSC.mm39.knownGene)
library(ChIPpeakAnno)
library(Rsamtools)


We can read in the bam file:


bamFile="SRR17296554.blstMT_filt.dedup.bam"
bamFileLabels="SRR17296554"


We collect library statistics:

bam_qc=bamQC(bamFile, outPath = NULL)

We can now inspect the statistics:

bam_qc[1:10]

The output:

  bam_qc[1:10]

  $totalQNAMEs
  [1] 4720683

  $duplicateRate
  [1] 0.2942896

  $mitochondriaRate
  [1] 0

  $properPairRate
  [1] 1

  $unmappedRate
  [1] 0

  $hasUnmappedMateRate
  [1] 0

  $notPassingQualityControlsRate
  [1] 0

  $nonRedundantFraction
  [1] 0.5100756

  $PCRbottleneckCoefficient_1
  [1] 0.710388

  $PCRbottleneckCoefficient_2
  [1] 3.366668



Some of these values are meaningless at this point, as we have already processed the bam file (i.e. filtered fragments in problematic regions etc.) To compare the statistics for the non-subset file, please see below.


bam_qc_nonsub[1:10]:

    $totalQNAMEs
    [1] 58847066

    $duplicateRate
    [1] 0.302227

    $mitochondriaRate
    [1] 0

    $properPairRate
    [1] 1

    $unmappedRate
    [1] 0

    $hasUnmappedMateRate
    [1] 0

    $notPassingQualityControlsRate
    [1] 0

    $nonRedundantFraction
    [1] 0.4967934

    $PCRbottleneckCoefficient_1
    [1] 0.699404

    $PCRbottleneckCoefficient_2
    [1] 3.18878



9.2 Shiftig and Splitting Aligned Reads


Tagmentation by Tn5 transposase produces 5’ overhang of 9 base long, the coordinates of reads mapping to the positive and negative strands need to be shifted by + 4 and - 5, respectively, to account for the 9-bp duplication created by DNA repair of the nick by Tn5 transposase and achieve base-pair resolution of TF footprint and motif-related analyses.

We perform it at this point to plot signal at TSS, and we save the resulting object for later use.

We create a directory where the processed bam files will be saved:


## files will be saved into outPath respective to the working directory
outPath = "splitBam"
dir.create(outPath)


First, we collect information on which SAM/BAM tags are present in our bam file:


possibleTag = combn(LETTERS, 2)
possibleTag = c(paste0(possibleTag[1, ], possibleTag[2, ]),
                   paste0(possibleTag[2, ], possibleTag[1, ]))

bamTop100 = scanBam(BamFile(bamFile, yieldSize = 100),
                       param = ScanBamParam(tag = possibleTag))[[1]]$tag
tags = names(bamTop100)[lengths(bamTop100)>0]


We shift the coordinates only for alignments on chr1, which is where most of our data is. We need to rename the chromosome id few times during this lab because of mismatch between annotation packages available via Bioconductor and the reference genome used for read mapping. Please note that prepending / removing “chr” only works for assembled chromosomes, and is somewhat hacky, so for other genomes, use it at your own risk.


seqlev="chr1"
which=as(seqinfo(Mmusculus)[seqlev], "GRanges")

#rename chr ids to match reference genome
seqlevels(which)=gsub("chr","",seqlevels(which))


We create an object with genomic alignments:


gal=readBamFile(bamFile, tag=tags, which=which,asMates=TRUE, bigFile=TRUE)


This object is empty, because we used bigFile=TRUE - this is expected, so do not be alarmed.

The function shiftGAlignmentsList in the ATACseqQC package is used for shifting the alignments:


shiftedBamFile=file.path(outPath, "shifted.bam")
gal1=shiftGAlignmentsList(gal, outbam=shiftedBamFile)



Next, we split the shifted alignments into different fractions by length (nucleosome free, mononucleosome, dinucleosome, and trinucleosome).

Shifted reads that do not fit into any of the above bins can be discarded.

Splitting reads is a time-consuming step because we are using random forest to classify the fragments based on fragment length and GC content.

By default, we assign the top 10% of short reads (reads below 100_bp) as nucleosome-free regions and the top 10% of intermediate length reads as (reads between 180 and 247 bp) mononucleosome. This serves as the training set to classify the rest of the fragments.

We need genomic locations of TSS:

txs=transcripts(TxDb.Mmusculus.UCSC.mm39.knownGene)
txs=txs[seqnames(txs) %in% "chr1"]
seqlevels(txs)=gsub("chr","",seqlevels(txs))

We need to rename chromosome ids in the BSgenome object:



GenomeInfoDb::seqlevelsStyle(BSgenome.Mmusculus.UCSC.mm39)="NCBI"
seqinfo(BSgenome.Mmusculus.UCSC.mm39)

genome=Mmusculus

We split the alignments (this process takes a few minutes):

objs=splitGAlignmentsByCut(gal1, txs=txs, genome=genome, outPath = outPath)

saveRDS(objs, file="atacsqQC.objs.rds")

Finally, we have prepared the data for plotting the signal in NFR and mononuclesome fraction and calculating signal distribution at TSS.



9.3 Signal in NFR and Mononucleosome Fractions

Files we are going to use and TSS coordinates:


bamFiles=file.path(outPath,
                       c("NucleosomeFree.bam",
                       "mononucleosome.bam",
                       "dinucleosome.bam",
                       "trinucleosome.bam"))

TSS=promoters(txs, upstream=0, downstream=1)
TSS=unique(TSS)


Calculate and log2 transform the signal around TSS:


librarySize=estLibSize(bamFiles)

seqlev="1" #we only consider one chromosome

NTILE=101
dws=1010
ups=1010

sigs=enrichedFragments(gal=objs[c("NucleosomeFree",
                                       "mononucleosome",
                                       "dinucleosome",
                                       "trinucleosome")],
                            TSS=TSS,
                            librarySize=librarySize,
                            seqlev=seqlev,
                            TSS.filter=0.5,
                            n.tile = NTILE,
                            upstream = ups,
                            downstream = dws)

saveRDS(sigs, file="atacsqQC.sigs.rds")

sigs.log2=lapply(sigs, function(.ele) log2(.ele+1))

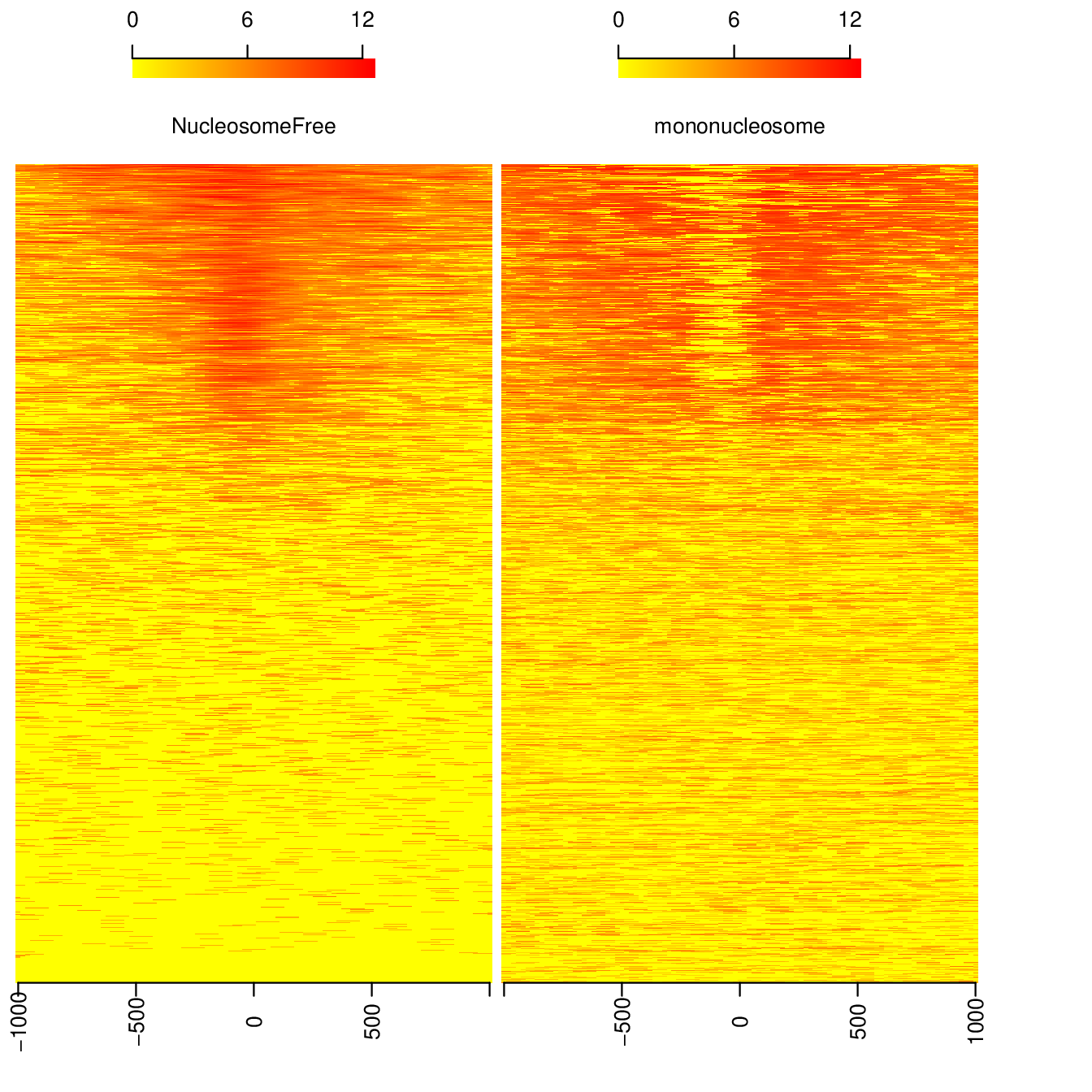

We can now save the signal heatmap:


pdf("Heatmap_splitbam.pdf")
  featureAlignedHeatmap(sigs.log2, reCenterPeaks(TSS, width=ups+dws),
                        zeroAt=.5, n.tile=NTILE)

dev.off()


  • What are the differences in the signal profile in these two fractions? Why do we observe them?




We can now calculate signal density at TSS:


out=featureAlignedDistribution(sigs,
                                    reCenterPeaks(TSS, width=ups+dws),
                                    zeroAt=.5, n.tile=NTILE, type="l",
                                    ylab="Averaged coverage")

## rescale the nucleosome-free and nucleosome signals to 0~1 for plotting
range01=function(x){(x-min(x))/(max(x)-min(x))}
out=apply(out, 2, range01)

And plot it:

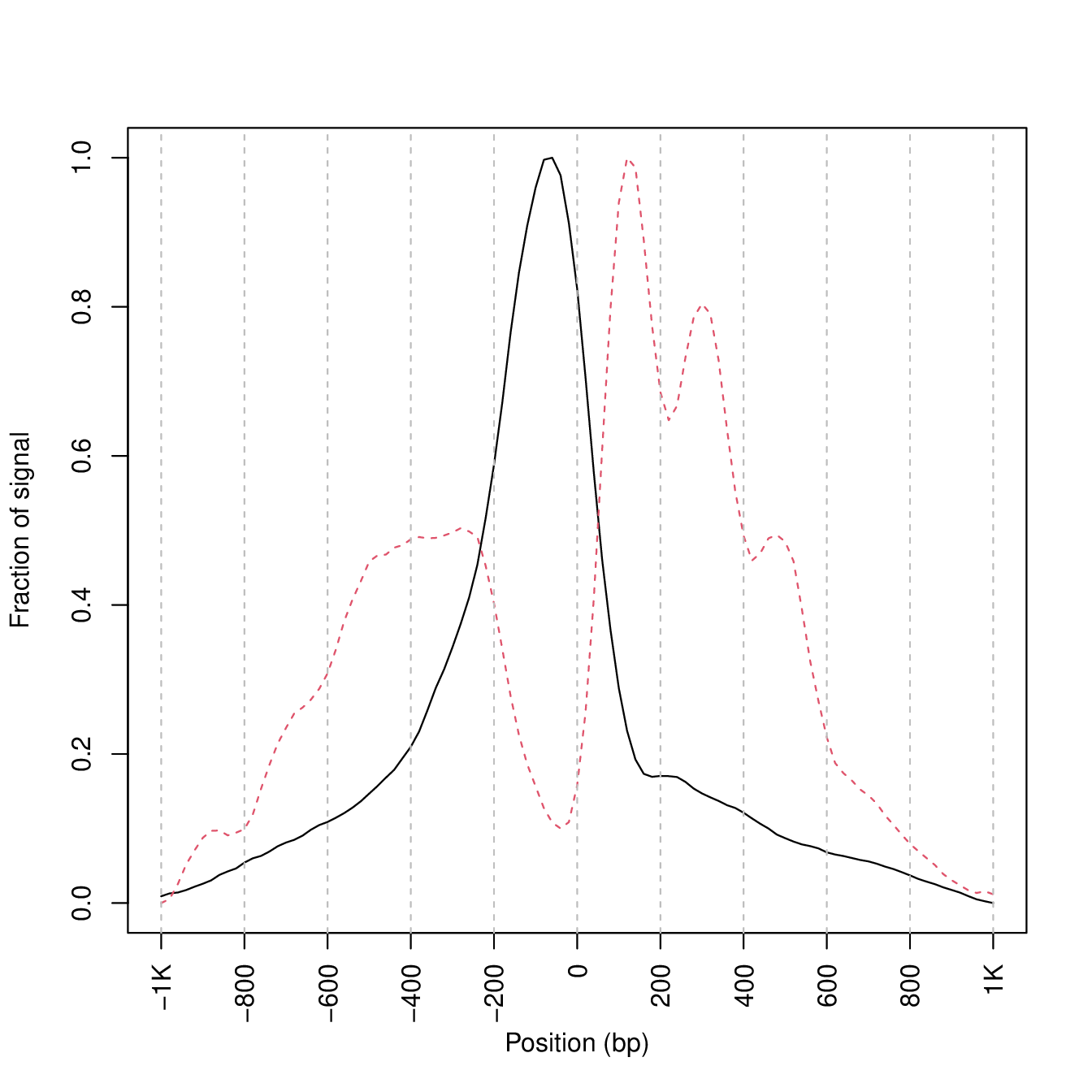

pdf("TSSprofile_splitbam.pdf")
    matplot(out, type="l", xaxt="n",
          xlab="Position (bp)",
          ylab="Fraction of signal")
    axis(1, at=seq(0, 100, by=10)+1,
       labels=c("-1K", seq(-800, 800, by=200), "1K"), las=2)
    abline(v=seq(0, 100, by=10)+1, lty=2, col="gray")
dev.off()


  • What are the differences in the signal profile in these two fractions? Why do we observe them?



Note

To finish working in R type q(). Do not save workspace image - in this case, to save space.



10 Signal Visualisation Using IGV

In this part we will look more closely at our data, which is a good practice, as data summaries can be at times misleading. In principle we could look at the data on Uppmax using installed tools but it is much easier (and glitch-free) to work with genome browser locally. If you have not done this before the course, install Interactive Genome Browser IGV.

We would like to visualise processed alignments (bam and corresponding bai) at several loci with strong signal. We can also view the bam files split into nucleosome-free, mono- di- and tri- nucleosome fractions.


We will need the following files:

  • atacseq/analysis/processedData/SRR17296554.blstMT_filt.dedup.bam and bai

  • atacseq/analysis/QC/splitBam/NucleosomeFree.bam and bai

  • atacseq/analysis/QC/splitBam/mononucleosome.bam and bai

  • atacseq/analysis/QC/splitBam/dinucleosome.bam and bai

  • atacseq/analysis/QC/splitBam/trinucleosome.bam and bai



To copy files from Pelle (or any remote host) you need to know the path to the file on Pelle (i.e. the remote side). Type in the terminal::

pwd

This gives you the path to the working directory, e.g::

/proj/epi2026/private/agata/atac_tst/atacseq/analysis/deepTools

To copy file Invivo_proc.fingerprint.pdf to current directory, type in the local terminal:

scp <username>@pelle.uppmax.uu.se:/path/to/file .

E.g.:

scp agata@pelle.uppmax.uu.se:/proj/epi2026/private/agata/atac_tst/atacseq/analysis/deepTools/Invivo_proc.fingerprint.pdf .

You will be prompted to input the 2FA code following the password to Uppmax.



Important

The reads are mapped to genome assembly GRCm39 / mm39 which may need to be downloaded in your IGV version. To download a new genome, in IGV: Genomes > Hosted Genomes, then search for mm39.


You will have to zoom in to view the alignments and coverage tracks.

Change the default viewing settings in IGV by shift-clicking (or right-clicking on some OS) onto a track name (left panel):

bam tracks:

  • alignment view to Squished

  • colour alignments to insert size and pair orientation

coverage tracks:

  • pay attention to track scale (signal range); it is set to Auto; the tracks are not displayed at the same range, you can harmonise the scale if you want to see the differences in signal range


You can move along the chromosome 1 and you will spot locations with high signal density.

Examples:

  • chr1:10,009,356-10,018,135

  • chr1:10,105,613-10,114,392

  • chr1:161,497,776-161,499,970

  • chr1:155,074,991-155,079,380

  • chr1:95,191,577-95,200,356

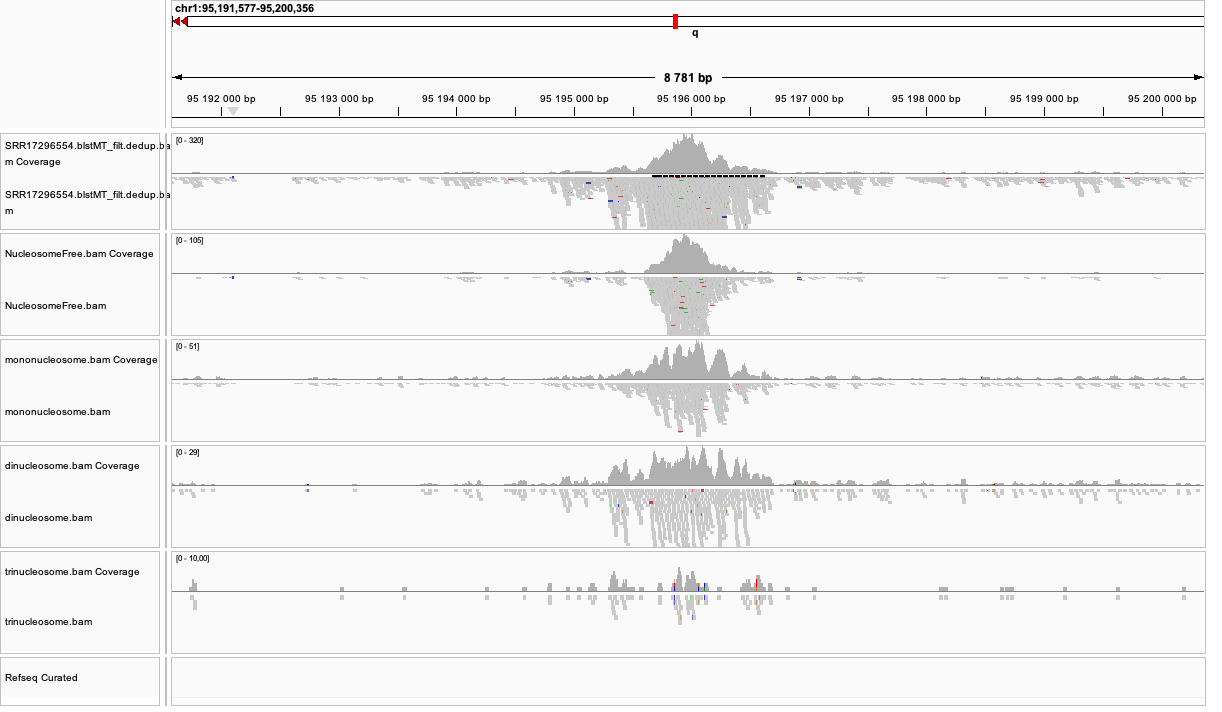

Figure 5: Signal in bam files split into fractions by fragment length.

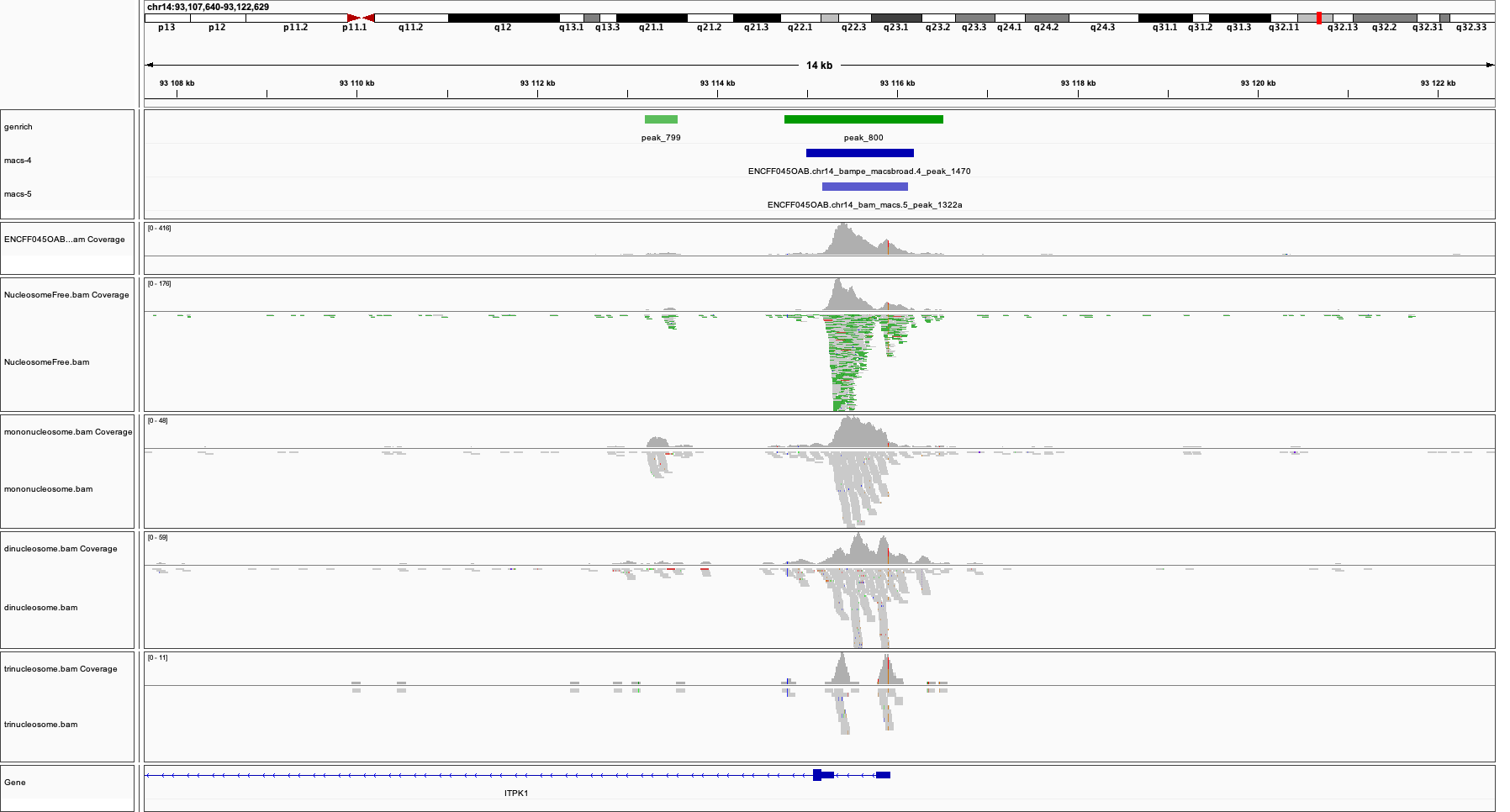

Another example is shown on Figure 6 (obtained using a different data set). This figure includes also detected peak intervals - we will discuss them in detail in the following sections).


Figure 6: Signal in bam files split into fractions by fragment length.


Bonus question

  • Why does the NFR track show unusually high fraction of discordant alignments (labeled green)?



After the processing and QC performed in this tutorial, we can now move to ATAC-seq data analysis.

References

Amemiya, Haley M., Anshul Kundaje, and Alan P. Boyle. 2019. “The ENCODE Blacklist: Identification of Problematic Regions of the Genome.” Scientific Reports 9 (1). https://doi.org/10.1038/s41598-019-45839-z.
Buenrostro, Jason D., Beijing Wu, Howard Y. Chang, and William J. Greenleaf. 2015. “ATAC-Seq: A Method for Assaying Chromatin Accessibility Genome-Wide.” Current Protocols in Molecular Biology 109 (January): 21.29.1–9. https://doi.org/10.1002/0471142727.mb2129s109.
Corces, M Ryan, Alexandro E Trevino, Emily G Hamilton, et al. 2017. “An Improved ATAC-Seq Protocol Reduces Background and Enables Interrogation of Frozen Tissues.” Nature Methods 14 (10): 959–62. https://doi.org/10.1038/nmeth.4396.
Li, Zhijian, Marcel H. Schulz, Thomas Look, Matthias Begemann, Martin Zenke, and Ivan G. Costa. 2019. “Identification of Transcription Factor Binding Sites Using ATAC-Seq.” Genome Biology 20 (1). https://doi.org/10.1186/s13059-019-1642-2.
Tsao, Hsiao-Wei, James Kaminski, Makoto Kurachi, et al. 2022. “Batf-Mediated Epigenetic Control of Effector CD8 + t Cell Differentiation.” Science Immunology 7 (68). https://doi.org/10.1126/sciimmunol.abi4919.
