Overview: R

Workshop on Data Visualization in R

Lokesh Mano • 17-Apr-2023

NBIS, SciLifeLab

1/9

Reading files

  • Errors while reading in files!
  • Demo of things that could go wrong when reading in files into R
  • Demo on using reserved variables like T, F, character and many others ...
  • How can you check if something is a reserved variable?
3/9
4/9

Special operator

  • %>%
    • from the dplyr package
    • works like a pipe
5/9

Special operator

  • %>%
    • from the dplyr package
    • works like a pipe
read.table("data/counts_raw.txt", header = T, row.names = 1, sep = "\t") %>%
head(6)
## Sample_1 Sample_2 Sample_3 Sample_4 Sample_5 Sample_6 Sample_7
## ENSG00000000003 321 303 204 492 455 359 376
## ENSG00000000005 0 0 0 0 0 0 0
## ENSG00000000419 696 660 472 951 963 689 706
## ENSG00000000457 59 54 44 109 73 66 60
## ENSG00000000460 399 405 236 445 454 374 316
## ENSG00000000938 0 0 0 0 0 1 0
## Sample_8 Sample_9 Sample_10 Sample_11 Sample_12
## ENSG00000000003 523 450 950 760 1436
## ENSG00000000005 0 0 0 0 0
## ENSG00000000419 1041 796 1036 789 1413
## ENSG00000000457 125 74 108 115 174
## ENSG00000000460 505 398 141 168 259
## ENSG00000000938 0 0 1 0 0
5/9

Special operator

  • %>%
    • from the dplyr package
    • works like a pipe
read.table("data/counts_raw.txt", header = T, row.names = 1, sep = "\t") %>%
head(6) %>%
rownames_to_column(var = "Gene")
## Gene Sample_1 Sample_2 Sample_3 Sample_4 Sample_5 Sample_6
## 1 ENSG00000000003 321 303 204 492 455 359
## 2 ENSG00000000005 0 0 0 0 0 0
## 3 ENSG00000000419 696 660 472 951 963 689
## 4 ENSG00000000457 59 54 44 109 73 66
## 5 ENSG00000000460 399 405 236 445 454 374
## 6 ENSG00000000938 0 0 0 0 0 1
## Sample_7 Sample_8 Sample_9 Sample_10 Sample_11 Sample_12
## 1 376 523 450 950 760 1436
## 2 0 0 0 0 0 0
## 3 706 1041 796 1036 789 1413
## 4 60 125 74 108 115 174
## 5 316 505 398 141 168 259
## 6 0 0 0 1 0 0
6/9

Special operator

  • %>%
    • from the dplyr package
    • works like a pipe
read.table("data/counts_raw.txt", header = T, row.names = 1, sep = "\t") %>%
head(1) %>%
rownames_to_column(var = "Gene") %>%
gather(Sample_ID, count, -Gene)
## Gene Sample_ID count
## 1 ENSG00000000003 Sample_1 321
## 2 ENSG00000000003 Sample_2 303
## 3 ENSG00000000003 Sample_3 204
## 4 ENSG00000000003 Sample_4 492
## 5 ENSG00000000003 Sample_5 455
## 6 ENSG00000000003 Sample_6 359
## 7 ENSG00000000003 Sample_7 376
## 8 ENSG00000000003 Sample_8 523
## 9 ENSG00000000003 Sample_9 450
## 10 ENSG00000000003 Sample_10 950
## 11 ENSG00000000003 Sample_11 760
## 12 ENSG00000000003 Sample_12 1436
7/9

Tidyr or dplyr functions

  • gather()
    • converts wide to long format
    • key is usally what you measure: -Gene
8/9

Tidyr or dplyr functions

  • gather()

    • converts wide to long format
    • key is usally what you measure: -Gene
  • select()

    • you can choose which columns you want,
8/9

Join

To merge two different tables to make a combined dataset where you have all the variables together!

  • full_join()
  • left_join()
  • and more ...
9/9

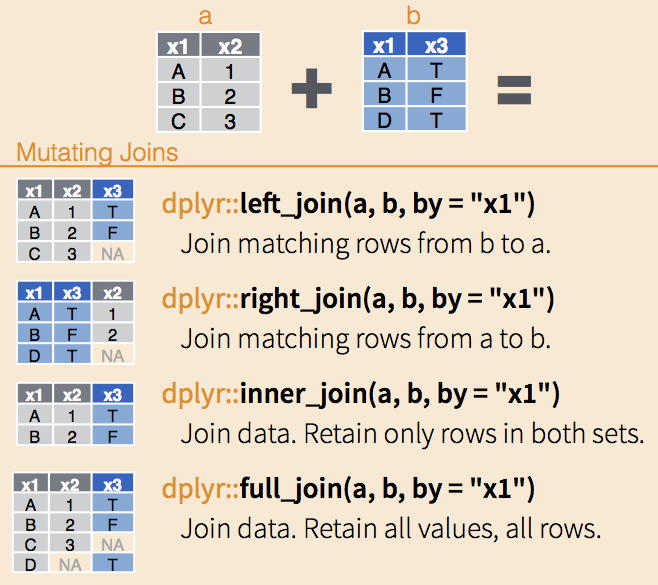

Join

To merge two different tables to make a combined dataset where you have all the variables together!

  • full_join()
  • left_join()
  • and more ...

    drawing

9/9

Thank you. Questions?

R version 4.1.3 (2022-03-10)

Platform: x86_64-pc-linux-gnu (64-bit)

OS: Ubuntu 22.04.2 LTS



Built on : 17-Apr-2023 at 14:28:33

2023SciLifeLabNBIS

9/9
