Interactive web apps with Shiny

RaukR 2025 • R Beyond the Basics

Roy Francis

08-May-2025

Contents

Shiny use cases, App structure, Code execution,
UI, Widgets, Dynamic UI,
Reactivity, Reactive dynamics,
Error validation, Observers, Reactive values,
Updating widgets, Action buttons, Download, Modules, Debugging,
Theming, Deploy,
Interactive documents, Extensions

What is Shiny?

shiny.posit.co/r/gallery/
shinyapps.org

K-means sidebar, simple

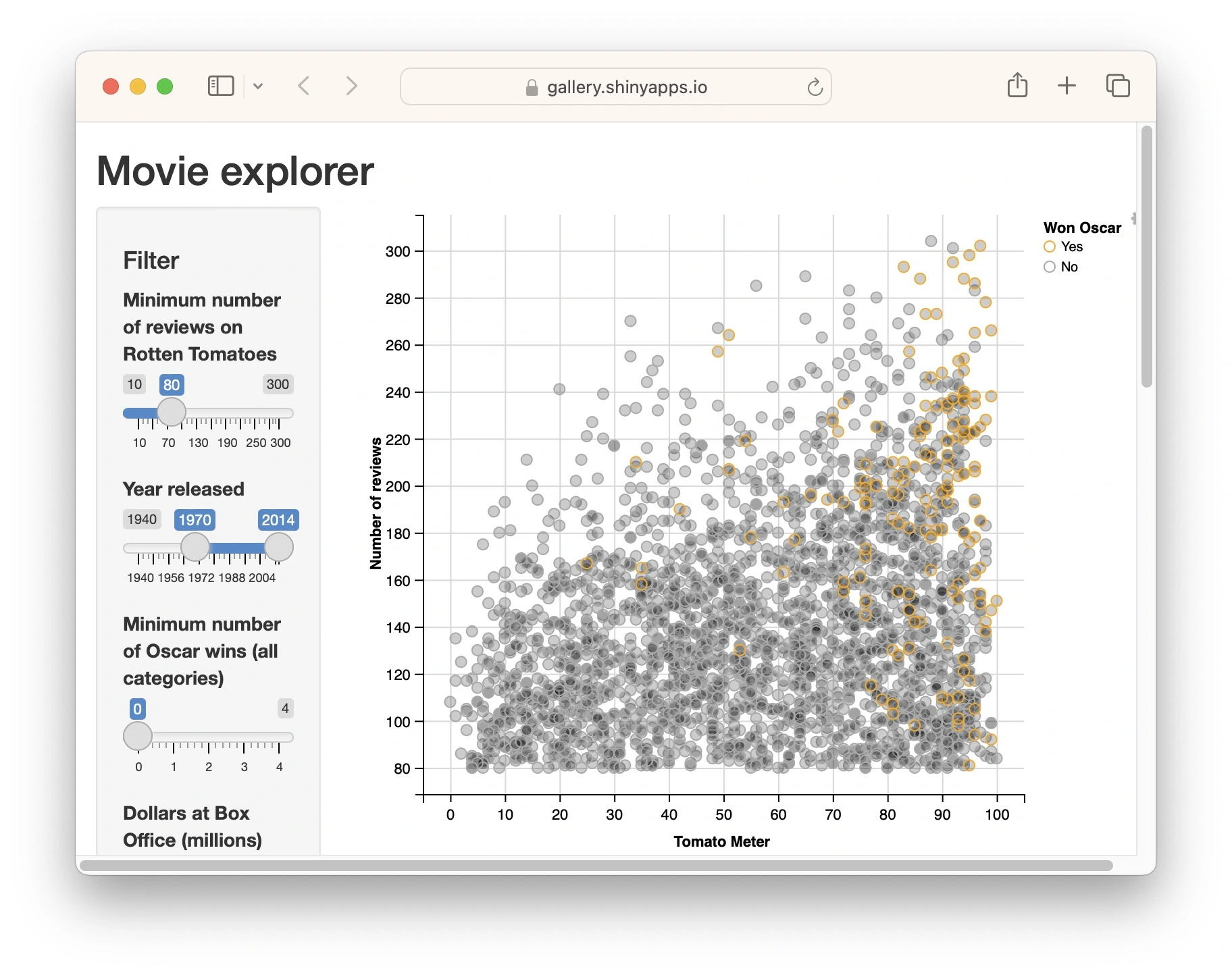

Movie explorer sidebar, simple

freeR simple

SuperZip intermediate, geo

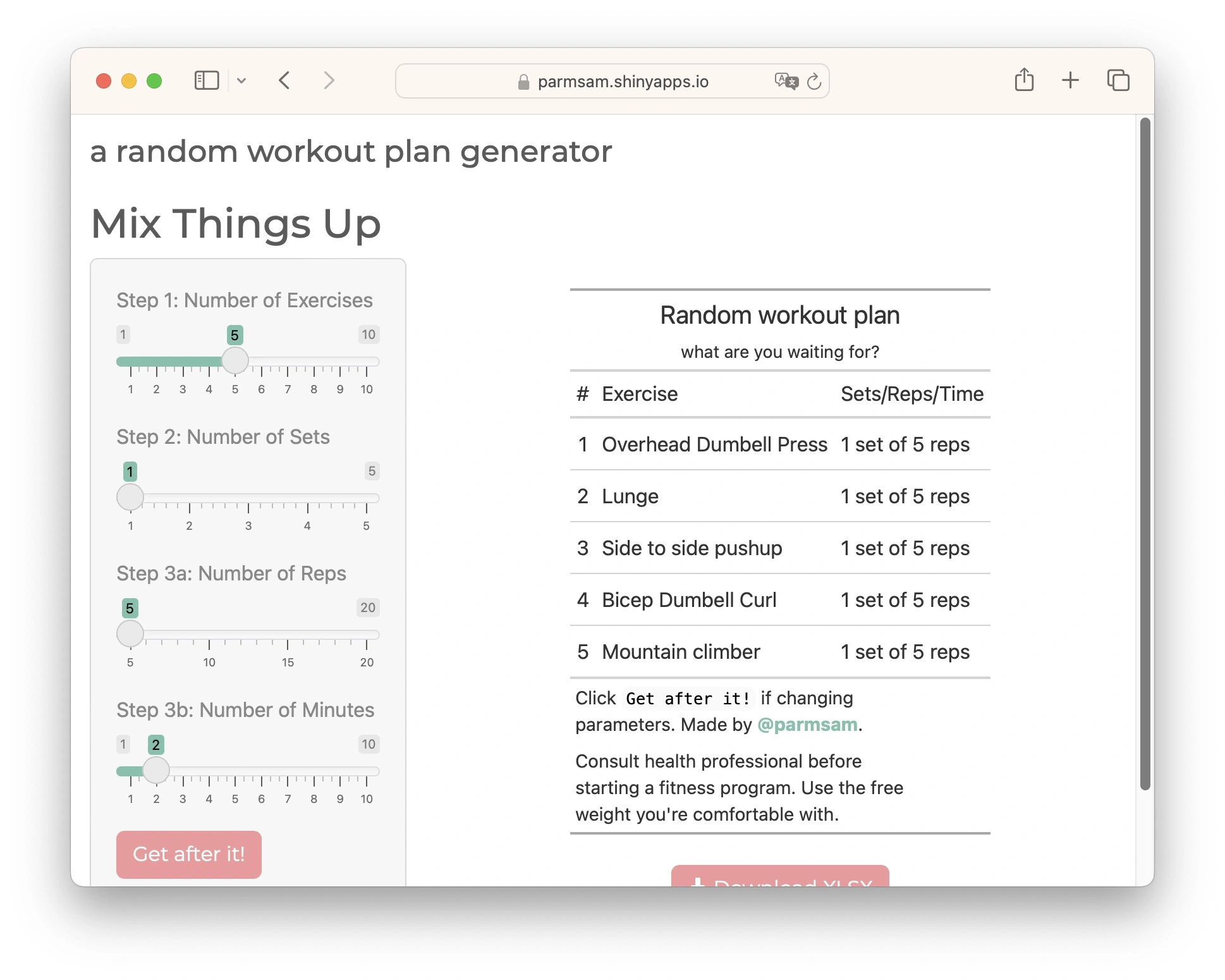

Workout creator intermediate

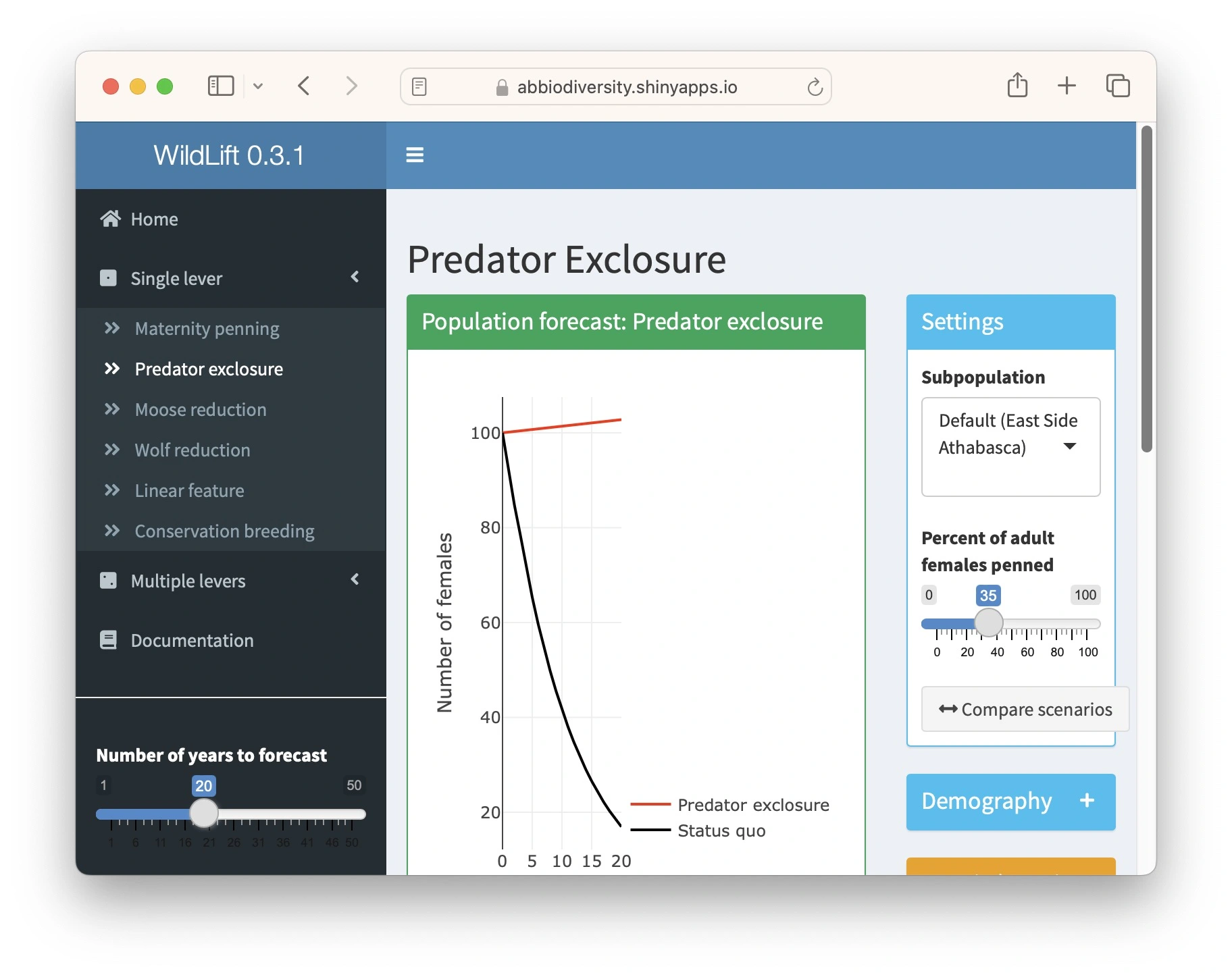

WildLift intermediate, dashboard

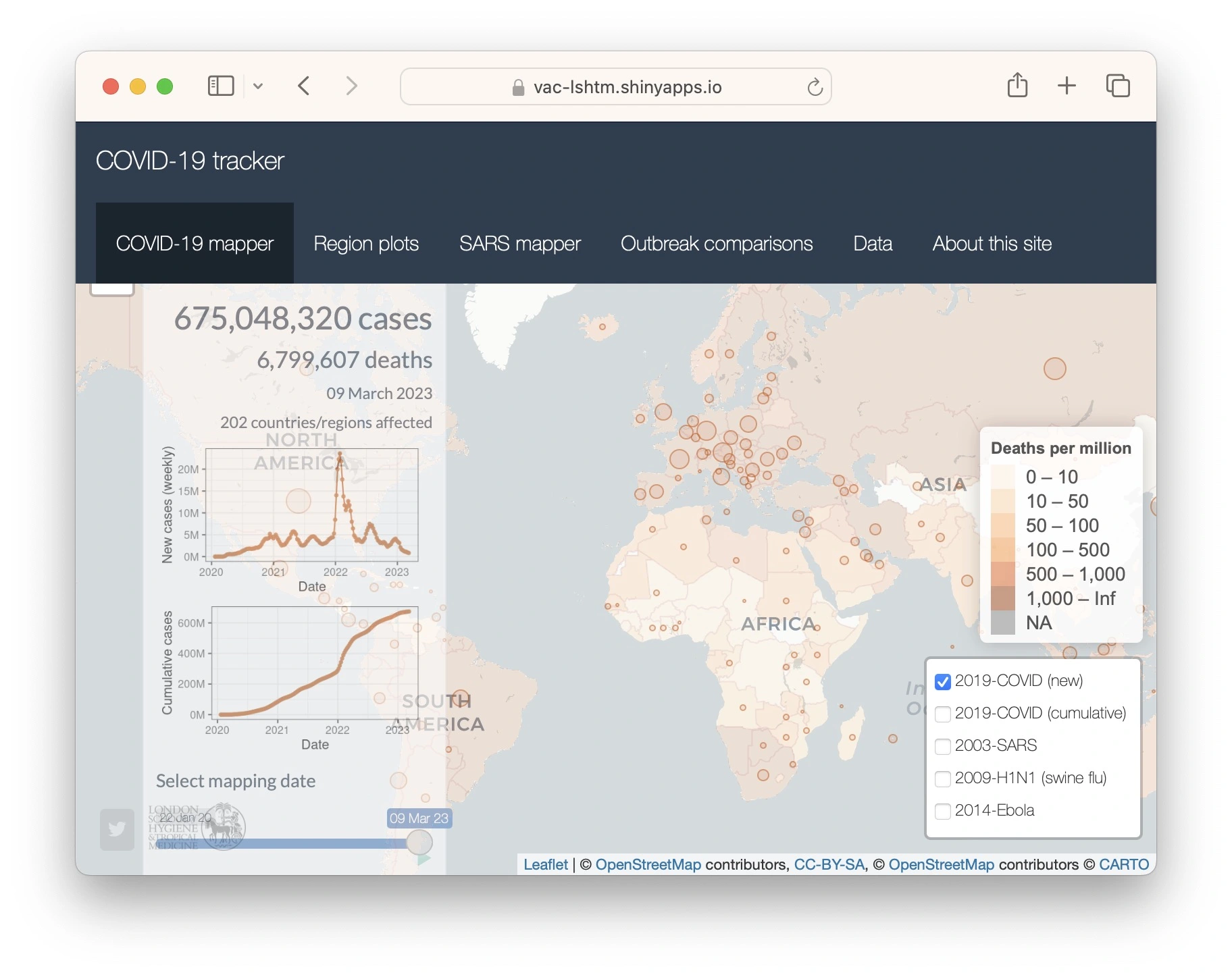

Covid tracker intermediate

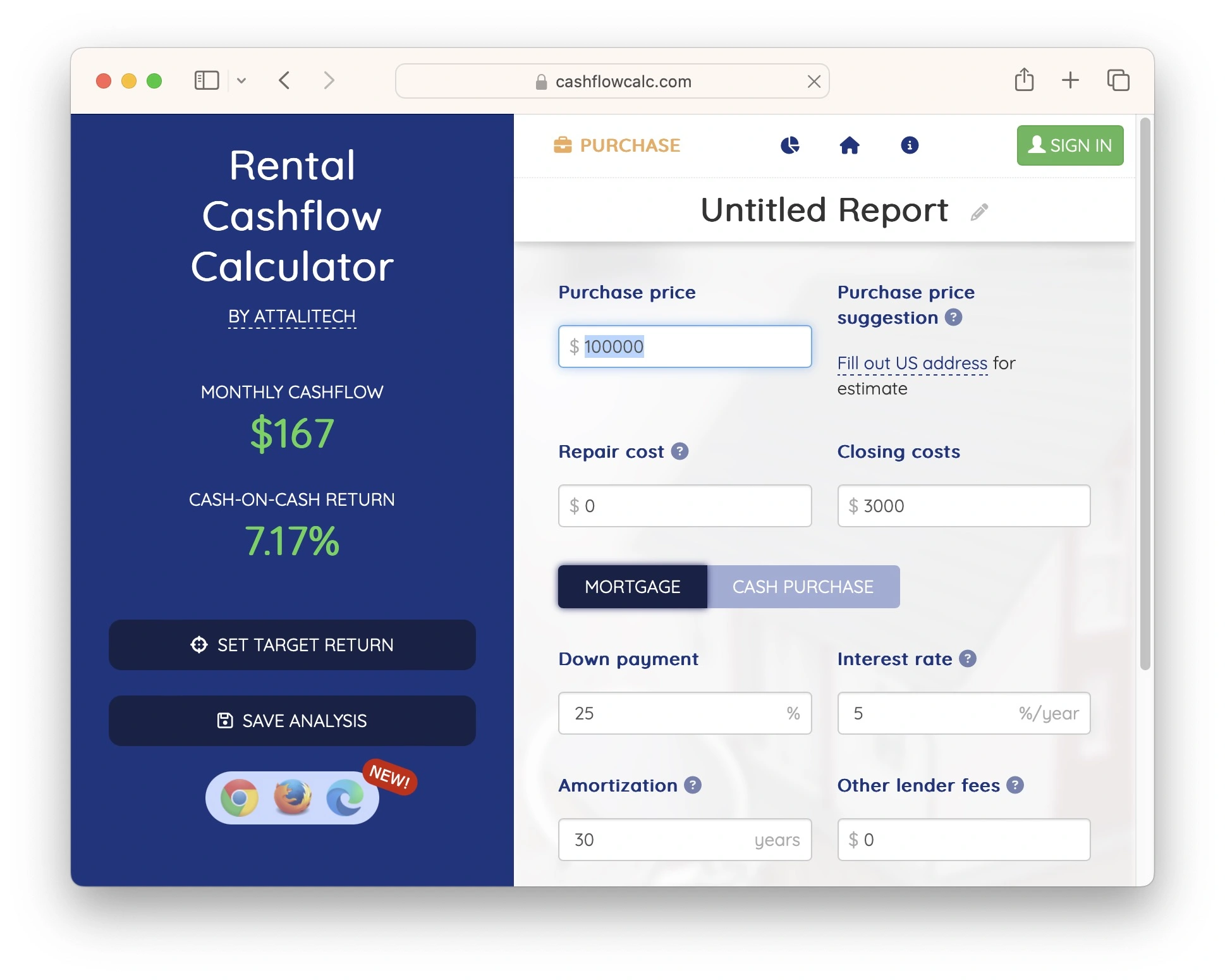

Cashflow calc intermediate

Genome browser intermediate

Species selection adv

Protein structure adv, dashboard

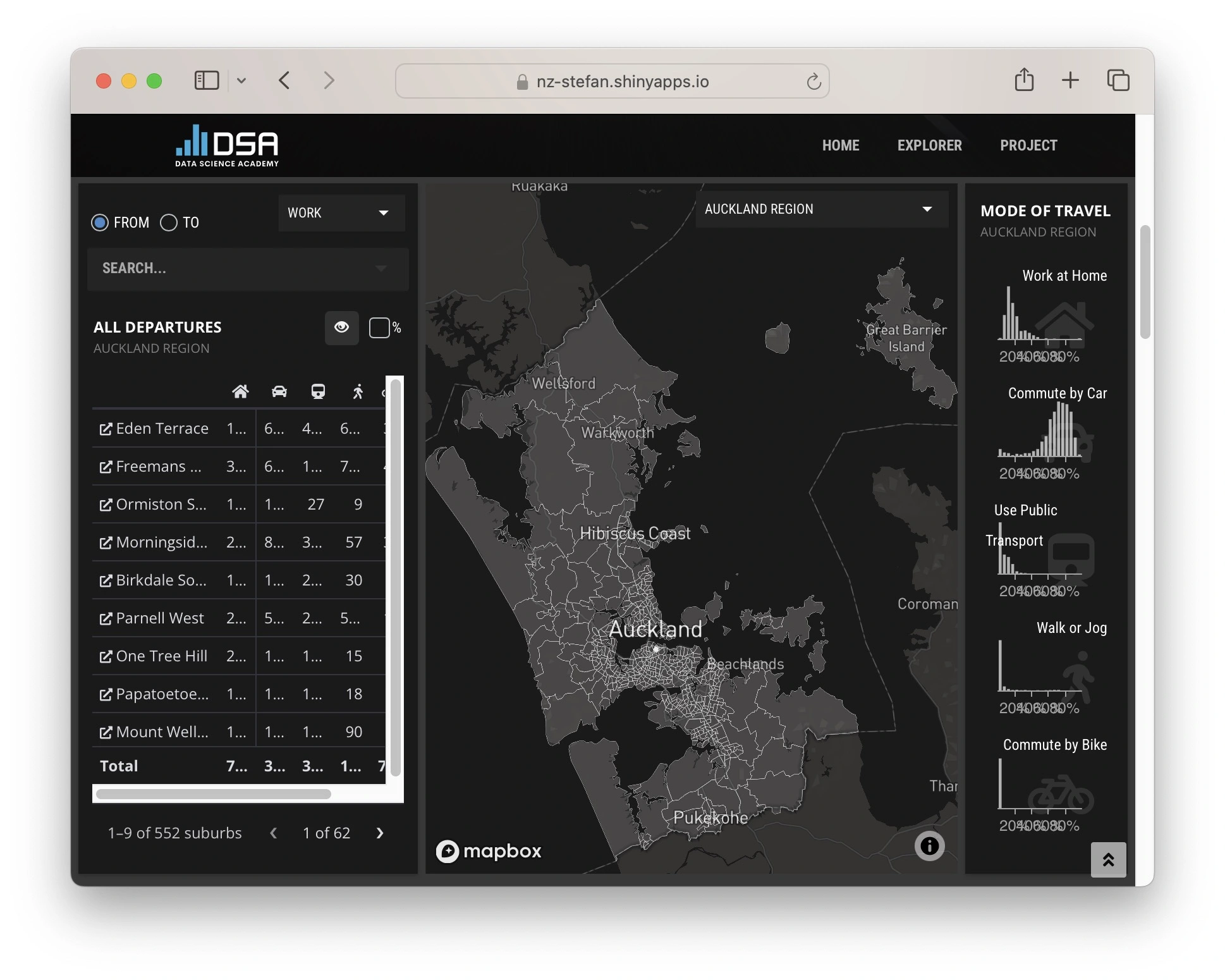

Commute explorer adv, geo

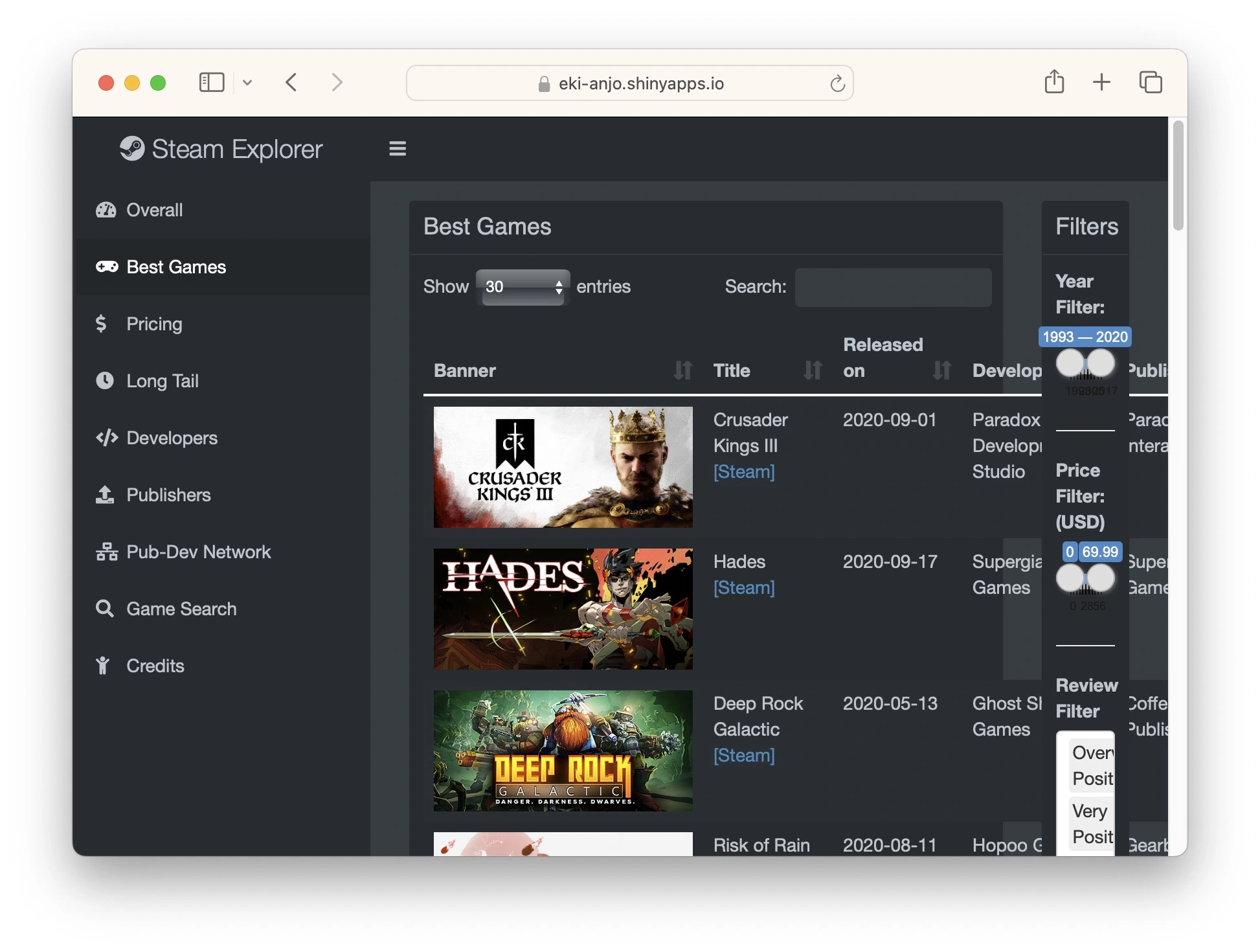

Steam explorer adv, dashboard

System pipe adv, dashboard

Shark attack adv

What is shiny?

• Standalone web applications
• Interactive RMarkdown/Quarto documents
• Gadgets/RStudio extensions
• Completely created using R
• Needs a server (live R environment)

App organization

One file format

app.r

ui <- fluidPage()
server <- function(input, output) {}
shinyApp(ui = ui, server = server)

Two file format

ui.r

ui <- fluidPage()

server.r

server <- function(input, output) {}

Running the app

• Run shiny::runApp("path/to/folder")

• Use shinyApp()

shinyApp(
  ui = fluidPage(),
  server = function(input, output) {}
)

• Running as a separate process from terminal

R -e "shiny::runApp('~/shinyapp')"

• From Rmd file using rmarkdown::run()

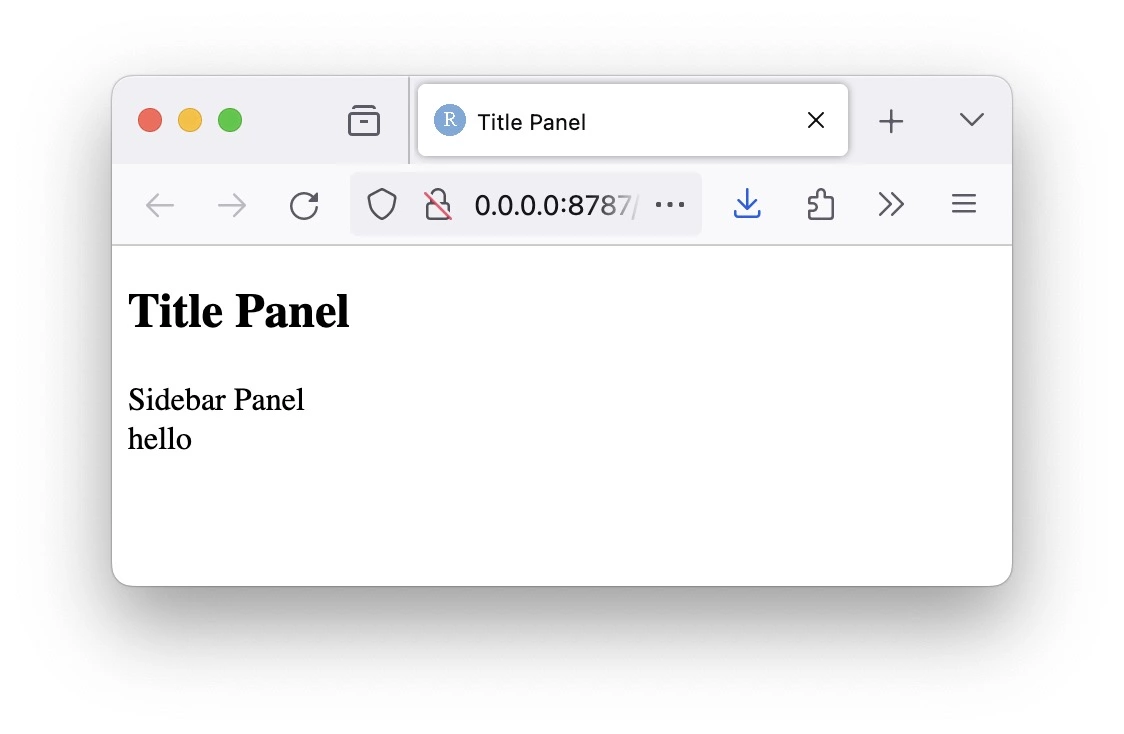

User Interface (UI)

UI

shinyApp(
  ui = fluidPage(
    titlePanel("Title Panel"),
    sidebarLayout(
      sidebarPanel(
        helpText("Sidebar Panel")
      ),
      mainPanel(
        "hello"
      )
    )
  ),
  server = function(input, output) {}
)

Language of the web: HTML, CSS & Javascript

Hypertext Markup Language (HTML)

• All UI code is translated to HTML
• Inspect with browser

sidebarPanel(helpText("Sidebar Panel"))

<div class="col-sm-4">
  <form class="well" role="complementary">
    <span class="help-block">Sidebar Panel</span>
  </form>
</div>

Cascading style sheet (CSS)

• Shiny is built on Bootstrap 3

shinyApp(
  ui = fluidPage(
    titlePanel("Title Panel"),
    sidebarLayout(
      sidebarPanel(helpText("Sidebar Panel")),
      mainPanel(tabsetPanel(
        tabPanel(
          "tab1",
          fluidRow(
            column(6, helpText("Col1")),
            column(
              6,
              helpText("Col2"),
              fluidRow(
                column(4, style = "background-color:#b0c6fb", helpText("Col1")),
                column(4, style = "background-color:#ffa153", helpText("Col2")),
                column(4, style = "background-color:#b1f6c6", helpText("Col3"))
              )
            )
          )
        ),
        tabPanel(
          "tab2",
          inputPanel(helpText("Input Panel"))
        ),
        tabPanel(
          "tab3",
          wellPanel(helpText("Well Panel"))
        )
      ))
    )
  ),
  server = function(input, output) {}
)

UI • Widgets • Input

shinyApp(
  ui = fluidPage(
    fluidRow(
      column(
        4,
        selectInput("select-input",
          label = "selectInput",
          choices = c("A", "B", "C")
        ),
      )
    )
  ),
  server = function(input, output) {
  }
)

?selectInput
selectInput(inputId, label, choices,
  selected = NULL, multiple = FALSE,
  selectize = TRUE, width = NULL, size = NULL
)

• Input ID has to be unique

UI • Widgets • Input

shinyApp(
ui=fluidPage(
  fluidRow(
    column(4,
           fileInput("file-input","fileInput:"),
           selectInput("select-input",label="selectInput",choices=c("A","B","C")),
           sliderInput("slider-input",label="sliderInput",value=5,min=1,max=10),
           numericInput("numeric-input",label="numericInput",value=5,min=1,max=10),
           textInput("text-input",label="textInput"),
           textAreaInput("text-area-input",label="textAreaInput"),
           dateInput("date-input",label="dateInput"),
           dateRangeInput("date-range-input",label="dateRangeInput"),
           radioButtons("radio-button",label="radioButtons",choices=c("A","B","C"),inline=T),
           checkboxInput("checkbox","checkboxInput",value=FALSE),
           actionButton("action-button","Action"),
           hr(),
           submitButton()
    )
  )
),
server=function(input,output) {
})

Widgets gallery

Widgets are visual objects on a page to allow for data input. Input and output variables.

UI • Widgets • Input Functions

Function	Description
checkboxInput()	Checkbox
checkboxGroupInput()	Checkbox group
radioButtons()	Radio buttons
dateInput()	Single date
dateRangeInput()	Date range
fileInput()	Upload file
numericInput()	Input number
sliderInput()	Input number

Function	Description
textInput()	Single line text input
textAreaInput()	Multi-line text input
passwordInput()	Password input
selectInput()	Dropdown selection
actionButton()	Action button
submitButton()	Submit button
tabsetPanel()	Tabset panel
navbarPage()	Page with navbar

Widgets gallery

UI • Widgets • Outputs

shinyApp(
ui=fluidPage(
           textInput("text_input",label="textInput",value="hello world"),
           textOutput("text_output")
    ),
server=function(input, output) {
  output$text_output <- renderText({input$text_input})
})

?textOutput
textOutput(outputId)

• Output ID has to be unique

UI • Widgets • Outputs

shinyApp(
ui=fluidPage(fluidRow(column(5,
           textInput("text_input",label="textInput",value="<h3 style='color:red'>Red text</h3>"),
           hr(),
           htmlOutput("html_output"),
           textOutput("text_output"),
           verbatimTextOutput("verbatim_text_output"),
           tableOutput("table_output"),
           plotOutput("plot_output",width="300px",height="300px")
    ))),

server=function(input, output) {
  output$html_output <- renderText({input$text_input})
  output$text_output <- renderText({input$text_input})
  output$verbatim_text_output <- renderText({input$text_input})
  output$table_output <- renderTable({iris[1:3,1:3]})
  output$plot_output <- renderPlot({
    plot(iris[,1],iris[,2])
  })
})

UI • Widgets • Output Functions

Output	Renderer	Description
textOutput()	renderText()/renderPrint()	Standard text
verbatimTextOutput()	renderText()/renderPrint()	Monospaced text
htmlOutput()	renderText()/renderPrint()	HTML text output
plotOutput()	renderPlot()	Create and display image
imageOutput()	renderImage()	Display existing image
tableOutput()	renderTable()	Table output
uiOutput()	renderUI()	HTML components

A complete app

shinyApp(
ui = fluidPage(
  h3("Temperature Converter"),
  numericInput("celsius", "Degrees Celsius:", value = 0),
  textOutput("fahrenheit")
),

server = function(input, output) {
  output$fahrenheit <- renderText({
    paste(input$celsius, "°C is ", (input$celsius * 9/5) + 32, " °F")
  })
})

Rendering UI

• UI elements are created conditionally using uiOutput()/renderUI()

shinyApp(
ui=fluidPage(
  selectInput("type",label="Select input type", choices=c("Text","Number")),
  uiOutput("ui"),
  textOutput("text_output"),
),

server=function(input, output) {

 output$ui <- renderUI({
    if(input$type=="Text") {
      textInput("input_text","Enter text")
    }else{
      sliderInput("input_number", "Select number", value=5, min=1, max=10)
    }
  })

  output$text_output <- renderText({
    if(input$type=="Text") {
      input$input_text
    }else{
      input$input_number
    }
  })
})

• Other options include conditionalPanel(), insertUI() and removeUI()

Rendering UI

shinyApp(
ui=fluidPage(
  selectInput("type", label="Select input type", choices=c("Text","Number")),
  uiOutput("ui"),
  textOutput("text_output"),
),

server=function(input, output) {

 output$ui <- renderUI({
    if(input$type=="Text") {
      textInput("input_text", "Enter text", value="hello")
    }else{
      sliderInput("input_number", "Select number", value=5, min=1, max=10)
    }
  })

  output$text_output <- renderText({
    if(input$type=="Text") {
      input$input_text
    }else{
      input$input_number
    }
  })
})

Rendering UI

shinyApp(
ui=fluidPage(
  selectInput("data",label="Select data",
              choices=c("mtcars","faithful","iris")),
  tableOutput("table"),
  uiOutput("ui")
),

server=function(input, output) {

  data <- reactive({ get(input$data, 'package:datasets') })

 output$ui <- renderUI({
  if(input$data=="iris") plotOutput("plot",width="400px")
  })

  output$plot <- renderPlot({hist(data()[, 1])})
  output$table <- renderTable({head(data())})
})

Rendering UI

shinyApp(
ui=fluidPage(
  sliderInput("persons",label="Select number of persons", value=1, min=1,max=4),
  uiOutput("ui")
),

server=function(input, output) {
  output$ui <- renderUI({
    lapply(1:input$persons, function(i) {
         div(
           textInput(paste0("name",i),"Enter name:",paste0("Person ",i)),
           textInput(paste0("tel",i),"Enter phone number:",value = "0773921562"),
           hr()
         )
    })
  })
})

Reactive programming

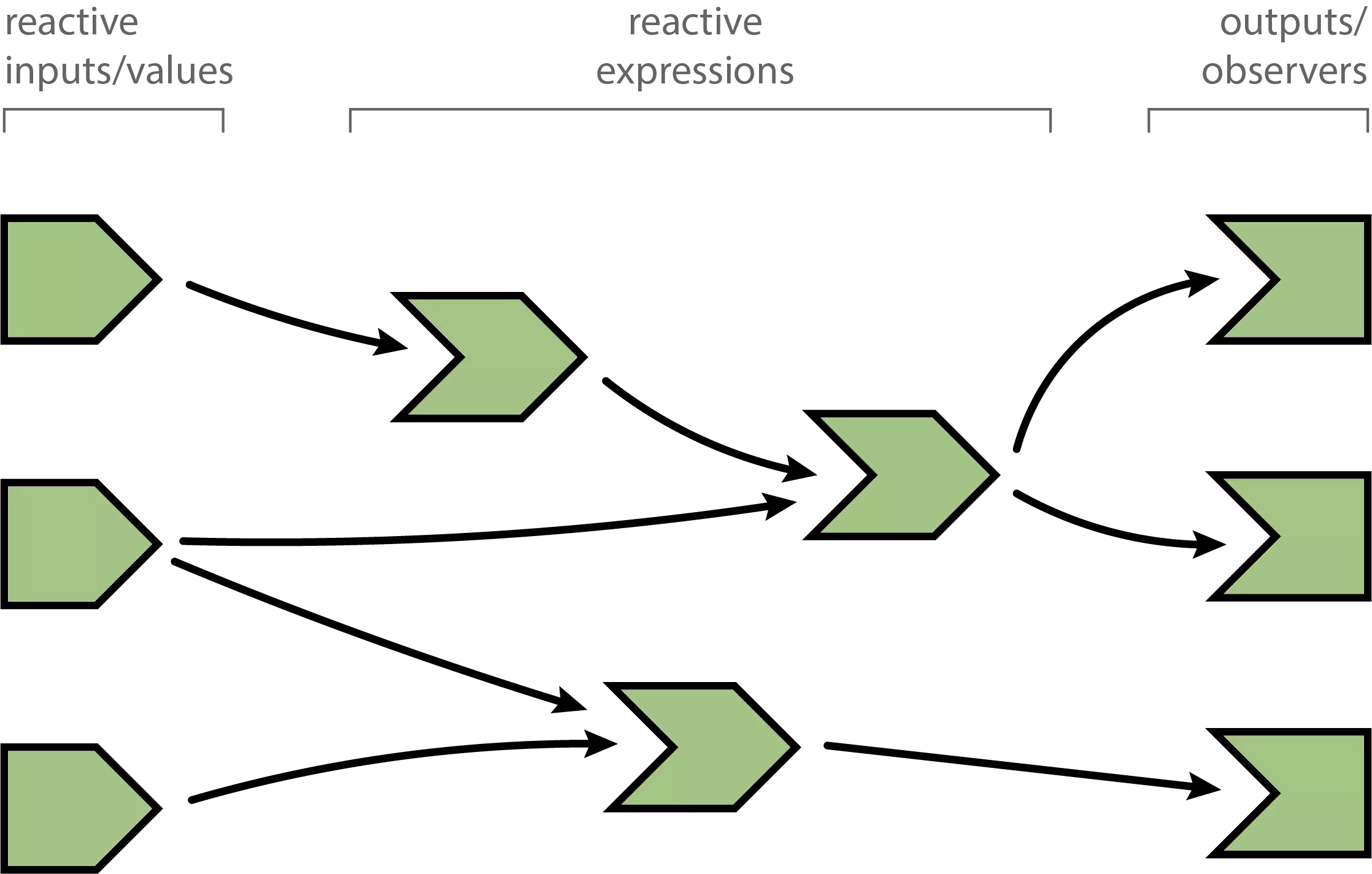

Reactivity

• Code doesn’t always run line-by-line (Non-linear execution)
• Code executes when dependencies change

reactlog

Reactives

Functions with reactive context

• reactive(): Defines an expression
• reactiveVal(): Defines single value
• reactiveValues(): Defines a list of values

Regular function fn <- function(): Runs wherever it is is used
Reactive function fn <- reactive(): Runs only when input changes

Reactive context

Reactive values cannot be accessed outside a reactive context

shinyApp(
  ui = fluidPage(
    numericInput("num", "Enter number",
                 value = 1),
    textOutput("result")
  ),
  server = function(input, output) {
    val = input$num^2
    output$result <- renderText({
      paste("Squared number is:", val)
    })
  }
)

Reactive dynamics

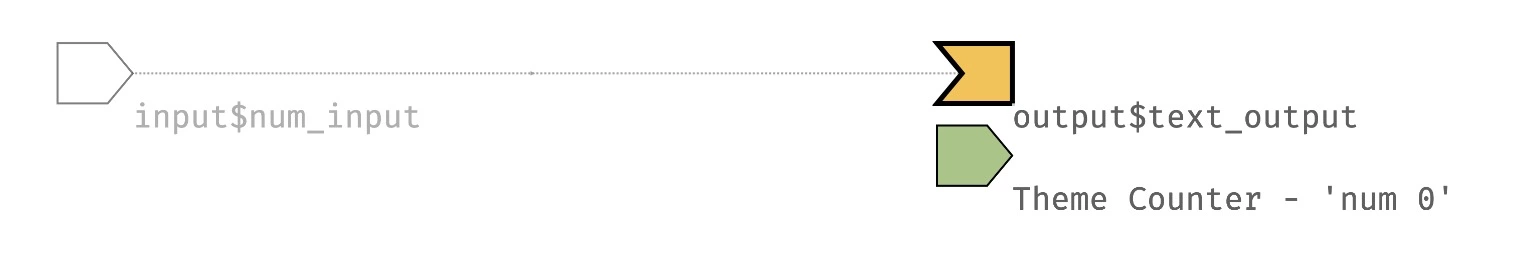

shinyApp(
  ui=fluidPage(
    numericInput("num_input",label="Observations",value=50),
    textOutput("text_output")),
  server=function(input,output) {
    output$text_output <- renderText({
        mean(rnorm(input$num_input))
    })
  })

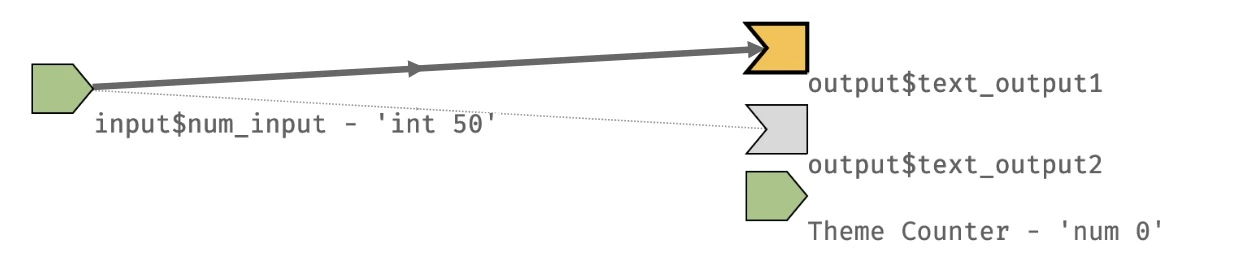

Reactive dynamics

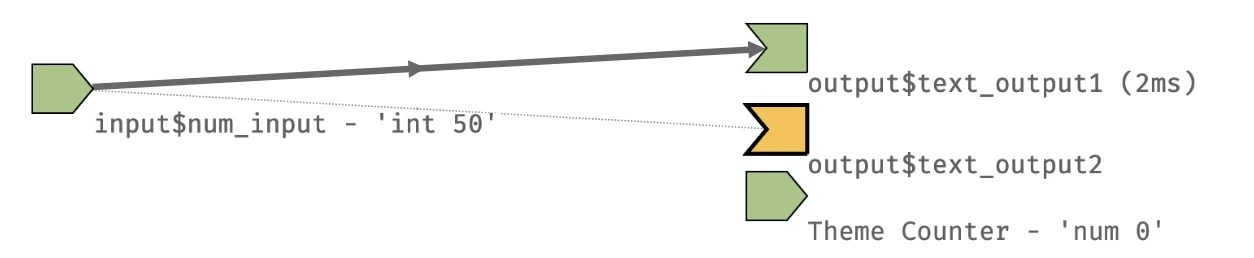

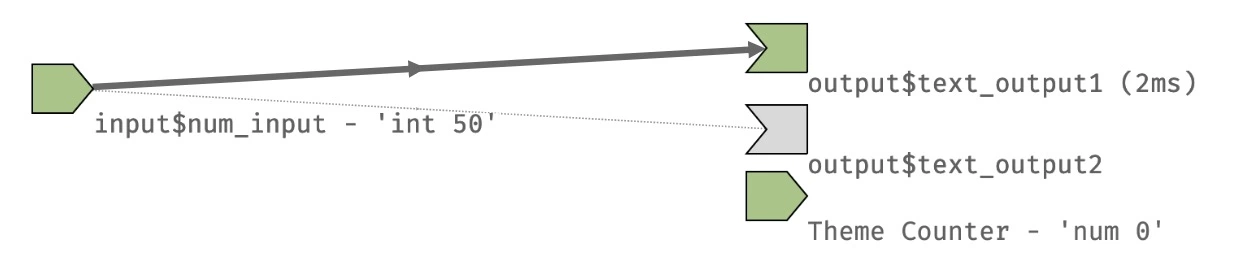

shinyApp(
  ui=fluidPage(
    numericInput("num_input",label="Observations",value=50),
    textOutput("text_output1"), textOutput("text_output2")),
  server=function(input,output) {
    output$text_output1 <- renderText({
      mean(rnorm(input$num_input))
    })
    output$text_output2 <- renderText({
      mean(rnorm(input$num_input))
    })
  })

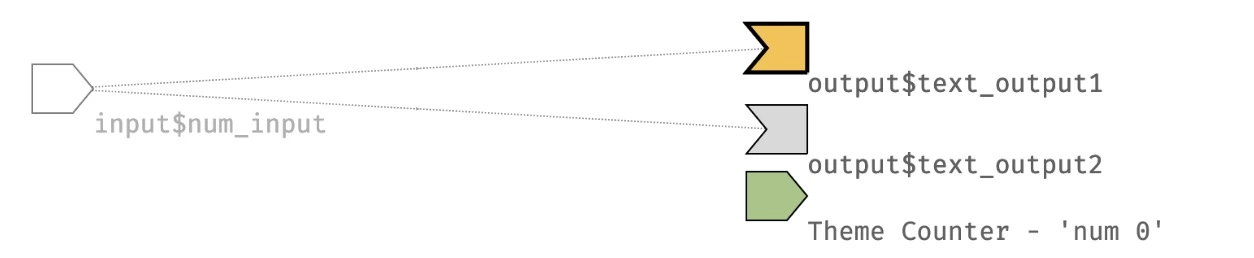

Reactive dynamics

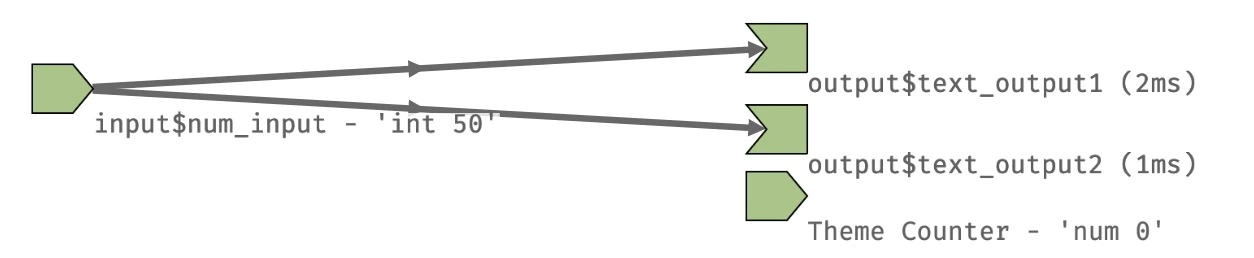

shinyApp(
  ui=fluidPage(
    numericInput("num_input",label="Observations",value=50),
    textOutput("text_output1"), textOutput("text_output2")),
  server=function(input,output) {
    rand <- function(x) rnorm(x)
    output$text_output1 <- renderText({
      mean(rand(input$num_input))
    })
    output$text_output2 <- renderText({
      mean(rand(input$num_input))
    })
  })

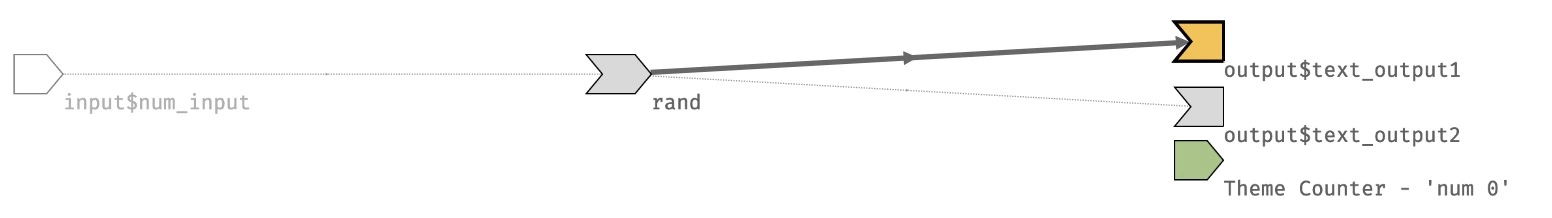

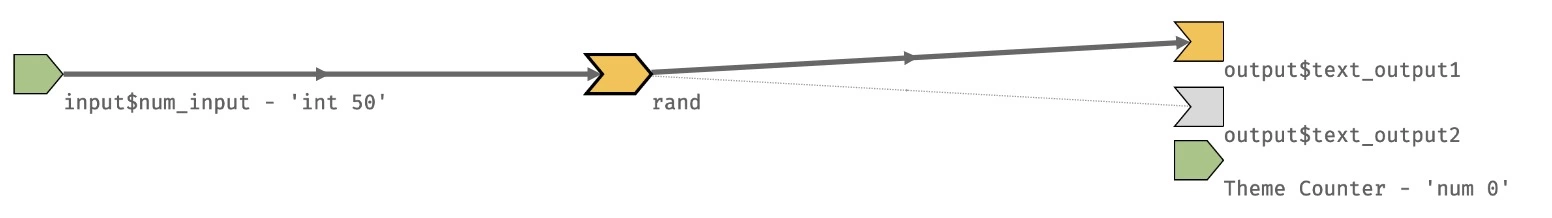

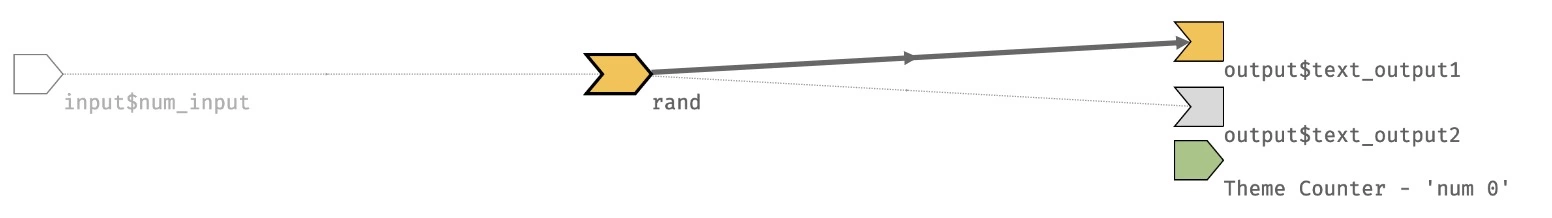

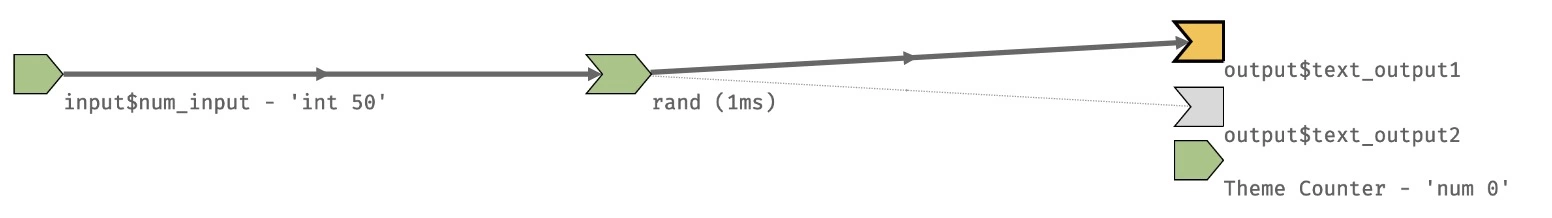

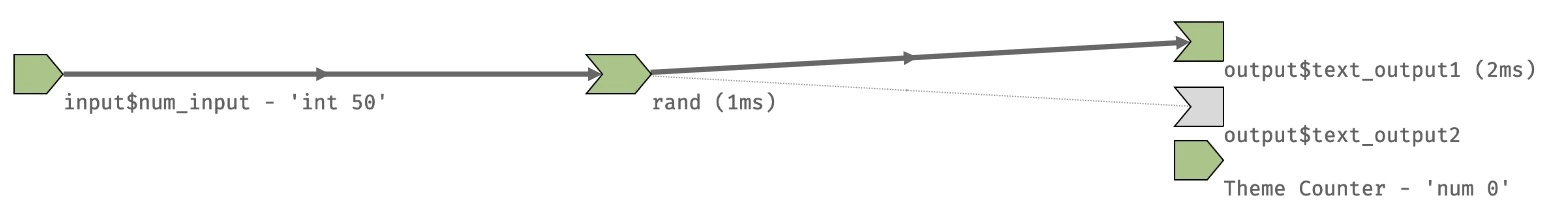

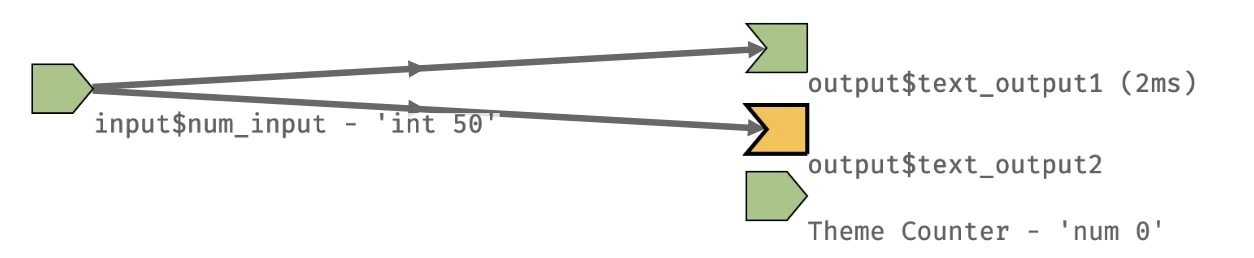

Reactive dynamics

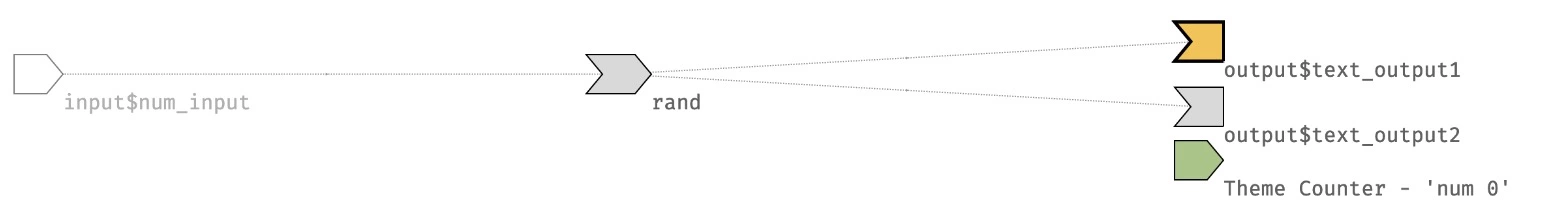

shinyApp(
  ui=fluidPage(
    numericInput("num_input",label="Observations",value=50),
    textOutput("text_output1"), textOutput("text_output2")
    ),
  server=function(input,output) {
    rand <- reactive({ rnorm(input$num_input) })
    output$text_output1 <- renderText({
      mean(rand())
    })
    output$text_output2 <- renderText({
      mean(rand())
    })
  })

Reactive functions can be use to share output from a common source. They can be used to reduce computation for demanding functions. Reactive values cannot be accessed from outside the reactive environment.

Try changing the reactive function

rand <- reactive({ rnorm(input$num_input) })

to a regular function

rand <- function(){ rnorm(input$num_input) }

Saving a reactlog,

# reset log
reactlogReset()
# run the app and exit
# save react log as text
dput(shiny::reactlog(), file = "assets/reactlog-reactivity-3.txt")
# open and visualize
"assets/reactlog-reactivity-3.txt" |>
  dget() |>
  reactlog::reactlog_show()

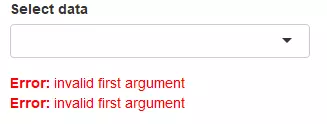

Error validation

• Shiny returns an error with missing or incorrect values

shinyApp(
ui=fluidPage(
  selectInput("data_input",label="Select data",
              choices=c("","mtcars","faithful","iris")),
  tableOutput("table_output")
),

server=function(input, output) {
  getdata <- reactive({ get(input$data_input,'package:datasets') })
  output$table_output <- renderTable({head(getdata())})
})

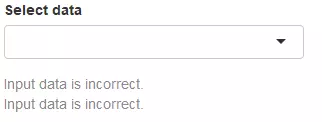

Error validation

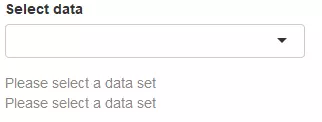

• Errors can be handled in a controlled manner

• validate() can be used to check input
• validate() using need()

shinyApp(
ui=fluidPage(
  selectInput("data_input",label="Select data",
              choices=c("","unknown","mtcars","faithful","iris")),
  tableOutput("table_output")
),

server=function(input, output) {
  getdata <- reactive({
  validate(need(try(input$data_input),"Please select a data set"))
    get(input$data_input,'package:datasets')
    })
  output$table_output <- renderTable({head(getdata())})
})

Error validation

• validate() using custom function

valfn <- function(x) if(is.null(x) | is.na(x) | x=="") return("Input data is incorrect.")

shinyApp(
ui=fluidPage(
  selectInput("data_input",label="Select data",
              choices=c("","unknown","mtcars","faithful","iris")),
  tableOutput("table_output")
),

server=function(input,output) {
  getdata <- reactive({
  validate(valfn(try(input$data_input)))
    get(input$data_input,'package:datasets')
    })
  output$table_output <- renderTable({head(getdata())})
})

• shiny::req() checks input variable and silently stops execution

Observers

Reactive functions that automatically re-executes whenever its dependencies change. Usually used for side-effects rather than returning a value.

observe()

Doesn’t return a value. Constantly runs as long as the app is alive.

observeEvent()

Similar to observe(), but only re-executes on specific event (like a button click). Doesn’t return a value.

eventReactive()

Similar to observeEvent(), but returns a value.

bindEvent()

Bind an action to a specific event. Similar to observeEvent(), but allows for the event to be determined dynamically. Links an input (like a button) to an output and ensures that reactive expressions are only updated when bound event is triggered.

Observers are reactive functions that run when their dependencies change similar to regular reactive output functions,affect HTML output. Observers are used for side-effect.

Updating widgets

• Widgets can be updated once initialized

• Example of a typical UI

ui = fluidPage(
  selectInput("select-input",label="selectInput",choices=c("A","B","C")),
  numericInput("numeric-input",label="numericInput",value=5,min=1,max=10),
)

• Add third argument session to server function
• Update functions can be used to update input widgets
• observe({}) monitors for a conditional change

server = function(input,output,session) {
  observe({
    if(something) {
      updateSelectInput(session,"select-input",label="selectInput",choices=c("D","E","F"))
      updateNumericInput(session,"numeric-input",label="numericInput",value=10,min=1,max=10)
    }
  })}

Updating widgets

shinyApp(
  ui = fluidPage(
    selectInput("data", "Choose a dataset:", choices = c("mtcars", "iris", "faithful")),
    selectInput("variable", "Choose a variable:", choices = names(mtcars))
  ),

  server = function(input, output, session) {

    dataset <- reactive({
      switch(input$data,
             "mtcars" = mtcars,
             "iris" = iris,
             "faithful" = faithful)
    })

    observe({
      updateSelectInput(session,"variable",choices=names(dataset()))
    })
  }
)

Updating widgets

Input function	Update function
checkboxInput()	updateCheckboxInput()
checkboxGroupInput()	updateCheckboxGroupInput()
radioButtons()	updateRadioButtons()
dateInput()	updateDateInput()
dateRangeInput()	updateDateRangeInput()
fileInput()
numericInput()	updateNumericInput()
sliderInput()	updateSliderInput()
textInput()	updateTextInput()
textAreaInput()	updateTextAreaInput()
passwordInput()
selectInput()	updateSelectInput()
actionButton()
submitButton()
tabsetPanel()	updateTabsetPanel()
navbarPage()	updateNavbarPage()

Reactive values

• reactVal() reactValues()
• Store reactive values that can be accessed from any reactive context

shinyApp(
  ui = fluidPage(
    actionButton("add","Add"),
    actionButton("subtract","Subtract"),
    textOutput("counter")
  ),
  server = function(input, output) {
    reactive_values <- reactiveValues(counter = 0)

    observeEvent(input$add, {
      reactive_values$counter <- reactive_values$counter + 1
    })
    observeEvent(input$subtract, {
      reactive_values$counter <- reactive_values$counter - 1
    })

    output$counter <- renderText({
      reactive_values$counter
    })
  }
)

Controlling reactivity using action buttons

shinyApp(
ui = fluidPage(
  h3("Temperature Converter"),
  numericInput("celsius", "Degrees Celsius:", value = 0),
  actionButton("btn_go", "Go!"),
  textOutput("fahrenheit")
),

server = function(input, output) {
  evr <- eventReactive(input$btn_go, {
    paste(input$celsius, "°C is ", (input$celsius * 9/5) + 32, " °F")
  })

  output$fahrenheit <- renderText({
    evr()
  })

  #output$fahrenheit <- renderText({
  #    paste(input$celsius, "°C is ", (input$celsius * 9/5) + 32, " °F")
  #  }) |>
  #  bindEvent(input$btn_go)
})

Download • Data

• Add button and downloadHandler() function

shinyApp(
ui=fluidPage(
  selectInput("data_input",label="Select data", choices=c("mtcars","faithful","iris")),
  textOutput("text_output"),
  downloadButton("button_download","Download")),
server=function(input, output) {
  getdata <- reactive({ get(input$data_input, 'package:datasets') })
  output$text_output <- renderText(paste0("Selected dataset: ",input$data_input))

  output$button_download <- downloadHandler(
  filename = function() {
     paste0(input$data_input,".csv")
   },
  content = function(file) {
     write.csv(getdata(),file,row.names=FALSE,quote=F)
   })
})

• Run in system browser if Rstudio browser doesn’t work

Download • Plots

shinyApp(
ui=fluidPage(
  selectInput("data_input",label="Select data",
              choices=c("mtcars","faithful","iris")),
  textOutput("text_output"),
  plotOutput("plot_output",width="400px"),
  downloadButton("button_download", "Download")
),

server=function(input, output) {
  getdata <- reactive({ get(input$data_input, 'package:datasets') })
  output$text_output <- renderText(paste0("Selected dataset: ",input$data_input))
  output$plot_output <- renderPlot({hist(getdata()[, 1])})

output$button_download <- downloadHandler(
  filename = function() {
    paste0(input$data_input,".png")
  },
  content = function(file) {
    png(file)
    hist(getdata()[, 1])
    dev.off()
  })
})

• Run in system browser if Rstudio browser doesn’t work
• See usage of download buttons

Modules

• Parts of an app can be modularized and reused like mini apps
• They can be used where needed like functions
• Modules have their own namespace
• A module has a UI part and a server part
• Define namespace using NS()
• Modules can be nested

Modules

counter_ui <- function(id) {
  ns <- NS(id)
  div(
    actionButton(ns("btn"), label = "Counter"),
    textOutput(ns("txt"))
  )
}

counter_server <- function(id) {
  moduleServer(id, function(input, output, session) {
    count <- reactiveVal(0)
    output$txt <- renderText({
      count(count() + 1)
      paste0("Counter ", id, ":", count())
    }) |> bindEvent(input$btn)
  })
}

shinyApp(
  ui = fluidPage(
    counter_ui(id = "1"),
    counter_ui(id = "2")
  ),

  server = function(input, output, session) {
    counter_server("1")
    counter_server("2")
  }
)

Debugging & Optimizing

• print() statements

• Interrupt execution and inspect environment browser()

• Visualize relationships using reactlog

Debugging & Optimizing

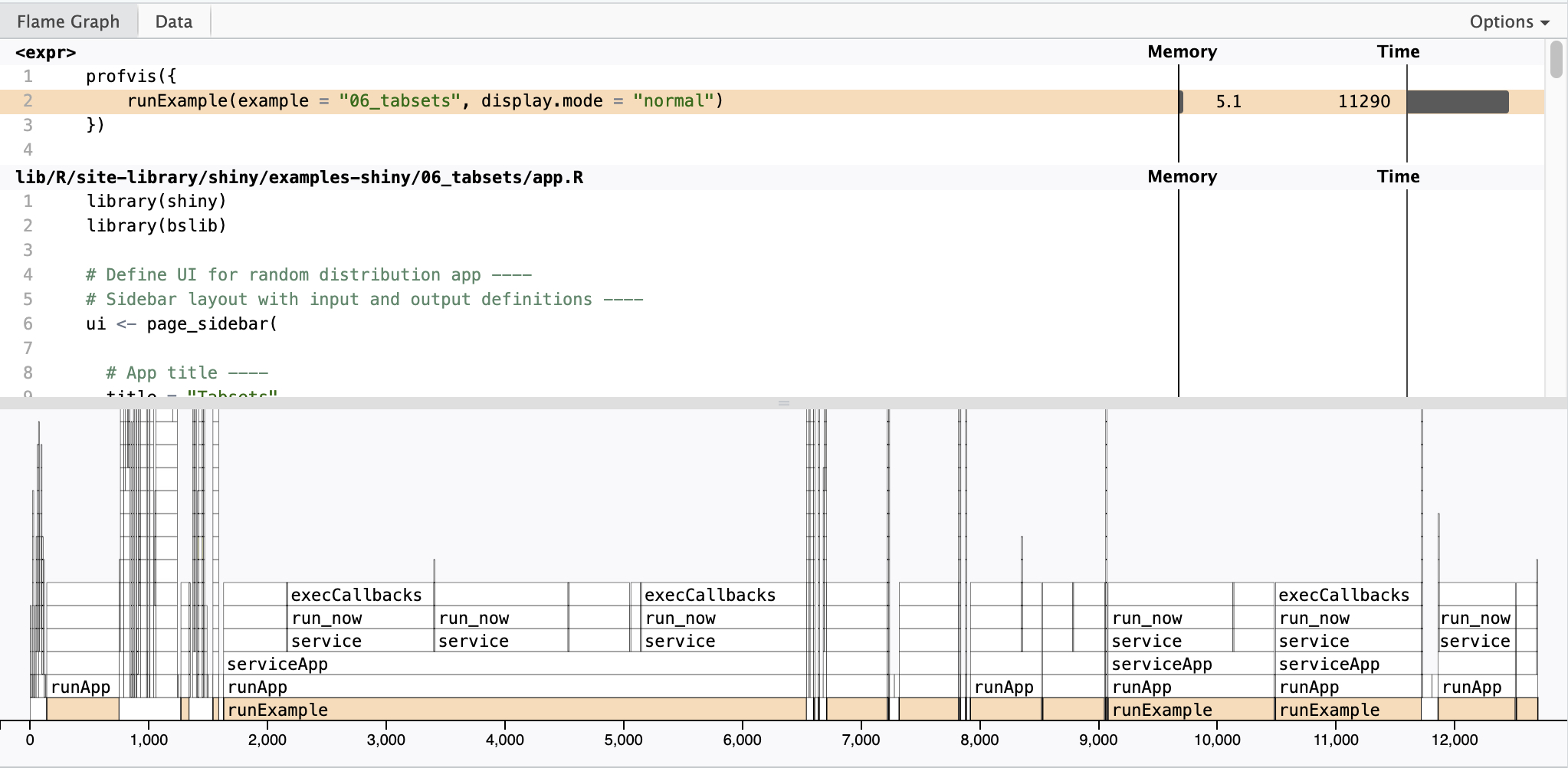

• Assess compute and RAM usage using profvis

• Simple profiling using shiny.tictoc

Code execution

App launch

ui <- fluidPage(textInput("text_input",label="textInput"), textOutput("text_output"))
server <- function(input,output) {
  output$text_output <- renderText({input$text_input})
}

New user

ui <- fluidPage(textInput("text_input",label="textInput"), textOutput("text_output"))
server <- function(input,output) {
  output$text_output <- renderText({input$text_input})
}

Widget update

ui <- fluidPage(textInput("text_input",label="textInput"), textOutput("text_output"))
server <- function(input,output) {
  output$text_output <- renderText({input$text_input})
}

Theming

• Use shinythemes

library(shinythemes)
fluidPage(theme = shinytheme("cerulean"))

• Live theme selector

library(shinythemes)
fluidPage(theme = shinythemes::themeSelector())

shinythemes

library("shinythemes")

shinyApp(
  ui = fluidPage(
    shinythemes::themeSelector(),
    sidebarPanel(
      textInput("txt", "Text input:", "text here"),
      sliderInput("slider", "Slider input:", 1, 100, 30),
      actionButton("action", "Button"),
      actionButton("action2", "Button2", class = "btn-primary")
    ),
    mainPanel(
      tabsetPanel(
        tabPanel("Tab 1"),
        tabPanel("Tab 2")
      )
    )
  ),
  server = function(input, output) {}
)

Theming

• Use bslib

library(bslib)
ui <- page_fluid(
  theme = bs_theme(version = 5)
)

• Live theme selector

library(bslib)
bs_theme_preview()

bslib, Bootswatch

Theming using custom CSS

• Insert in the head

ui <- fluidPage(
  tags$head(
    tags$style(HTML("
      @import url('https://fonts.googleapis.com/css2?family=Yusei+Magic&display=swap');
      h2 {
        font-family: 'Yusei Magic', sans-serif;
      }"))
  ))

• Add styles directly

ui <- fluidPage(h2("Old Faithful Geyser Data", style = "font-size: 2em;"))

• Load custom CSS file placed in www/

ui <- fluidPage(
  tags$head(tags$link(rel = "stylesheet", type = "text/css", href = "styles.css"))
)

CSS styling

Deployment

• R scripts
  • GitHub
  • R Package

• Container (Docker …)

• Hosting
  • Shinyapps.io
  • Shiny Server (Free)
  • Shiny Server Pro

• Automatically deploying to shinyapps.io

library(rsconnect)
rsconnect::setAccountInfo(name="username", token="HDFGT46YF7TDT6474G47", secret="hdgTDF5FStgdkpJ")
deployApp(appName="name")

Shiny apps user guide, Shiny server guide

Interactive documents • Quarto

---
title: "Interactive scatterplot"
format: html
server: shiny
---

```{r}
library(shiny)
library(ggplot2)

selectInput("x_var", "X-axis Variable:", choices=names(mtcars), selected = "hp"),
selectInput("y_var", "Y-axis Variable:", choices=names(mtcars), selected = "mpg"),
plotOutput("plot")
```

```{r}
#| context: server
output$plot <- renderPlot({
  ggplot(mtcars, aes_string(x = input$x_var, y = input$y_var)) +
    geom_point() +
    labs(title = "Interactive mtcars scatterplot",
         x = input$x_var,
         y = input$y_var)
})
```

Interactive documents • Rmarkdown

• Shiny can run in RMarkdown documents. Set YAML runtime: shiny.

---
title: Interactive document
output: html_document
runtime: shiny
---

• Shiny widgets can be included directly

```{r}
selectInput('n_breaks',label='Number of bins:',choices=c(10,20,35,50),selected=20)
```

Interactive documents

• Whole shiny apps can be included directly

```{r}
shinyApp(
  ui=fluidPage(),
  server=function(input,output) {}
)
```

• Hosted shiny apps can be embedded using <iframe>

<iframe src="https://user.shinyapps.io/app"></iframe>

Other topics

• Extended task
• Shiny unit tests
• Applications of action buttons

• Progress indicators

• Shinylive
• ShinyUIEditor
• …

Extensions

• Naxstats: Repo collection of shiny extensions
• bslib: Bootswatch themes for shiny
• shinyurl: using URLs to recreate state of an app
• shinypod: Reusable modules
• shinyjs: Custom javascript functionality
• shinyWidgets: Bootstrap 3 custom widgets
• shinyBS: Bootstrap 3 widgets
• shinymanager: Authentication for shiny apps
• …

Learning & community

Documentation

• Posit Shiny home
• Posit Shiny articles

Books

• Mastering Shiny Book
• Engineering Shiny Apps
• Shiny Interfaces
• Mastering shiny solutions

Conferences

• Appsilon: ShinyConf
• Jumping Rivers: Shiny in Production

Blogs & Podcasts

• Posit Shiny Blog
• Shiny Developer Series

Thank you!

Questions?

2025 • SciLifeLab • NBIS • RaukR
